QUICK START GUIDE

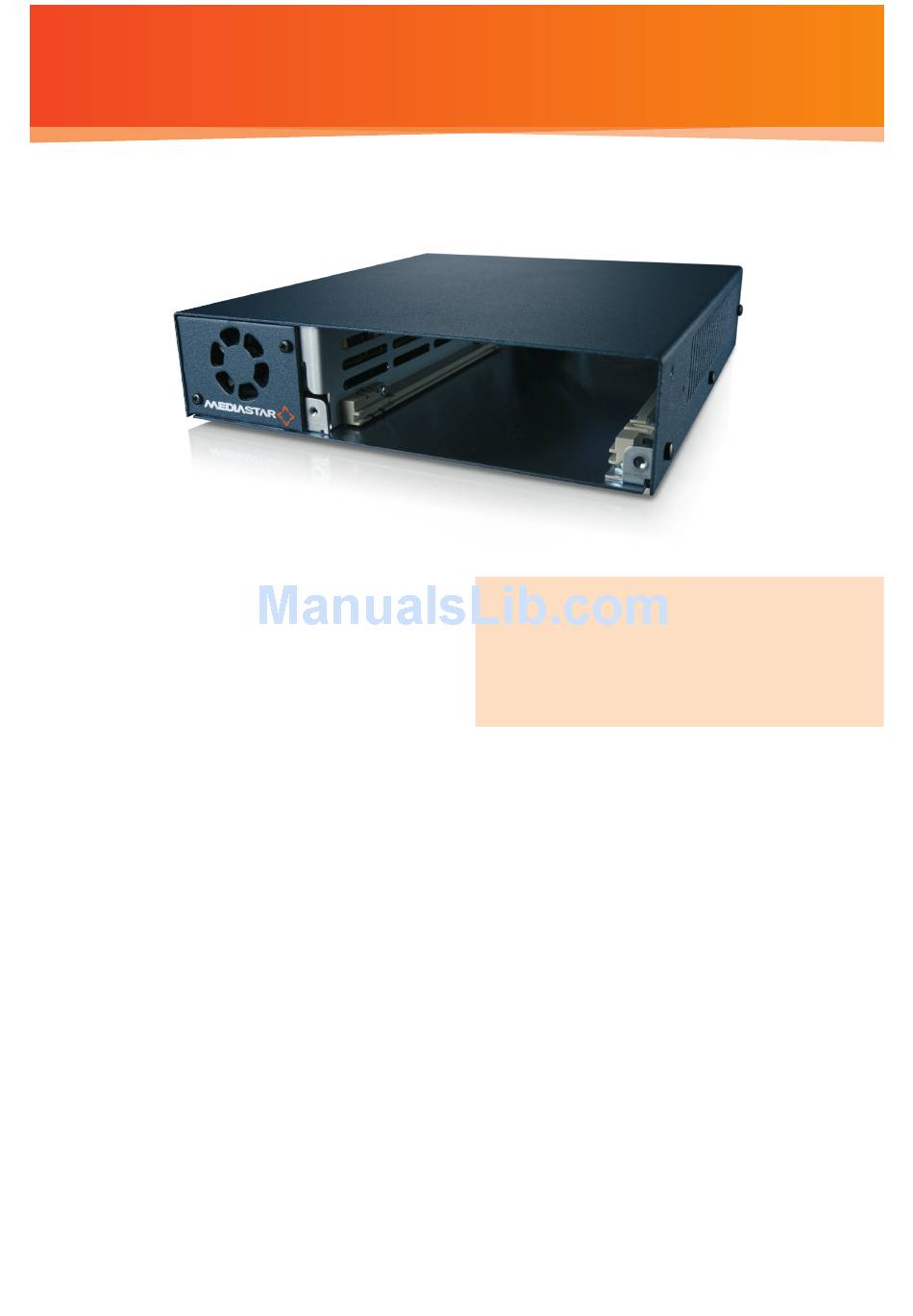

MediaStar 769 Chassis Installation Guide
The MediaStar 769 chassis holds a single
MediaStar 'blade' processor module. It is
powered with a mains input and can be
installed in a 19" rack (with an optional rack
mounting kit) or be used as a 'standalone'
unit, anywhere with suitable network access.
It will accept any current or legacy MediaStar
processor 'blade'.
The chassis has a replaceable mains power supply
module (768), which converts electrical mains input
voltage into the low voltage DC power that the
processor module 'blade' uses. The PSU has a
thermostatically controlled fan that provides forced
air cooling for the whole chassis.
Both the output power rails and the fan are monitored,
and if any problems are detected, the power supply
will communicate with an installed 79x 'blade', which
will show a warning on its front panel and send an IP
warning message to the Media Manager administration
system and optionally a corporate SNMP monitoring
system. In the event of a PSU module failure, it can be
quickly swapped out, by qualified service personnel, for
another 768 PSU unit.
200-2326 v1
What's in the box:
• 769 chassis (including a 768 power
supply module)
• AC mains power cable
19" rack mounting kits can be ordered separately
that will allow one or two 769 units to be mounted in
a 1U rack aperture (769-RMK-S Single 769 rack-mount
kit or 769-RMK-D dual 769 rack-mount kit).
Processor 'blades' should be ordered separately,
depending upon the functionality required.
