Summary of Contents for TouchLink CCI Pro 700

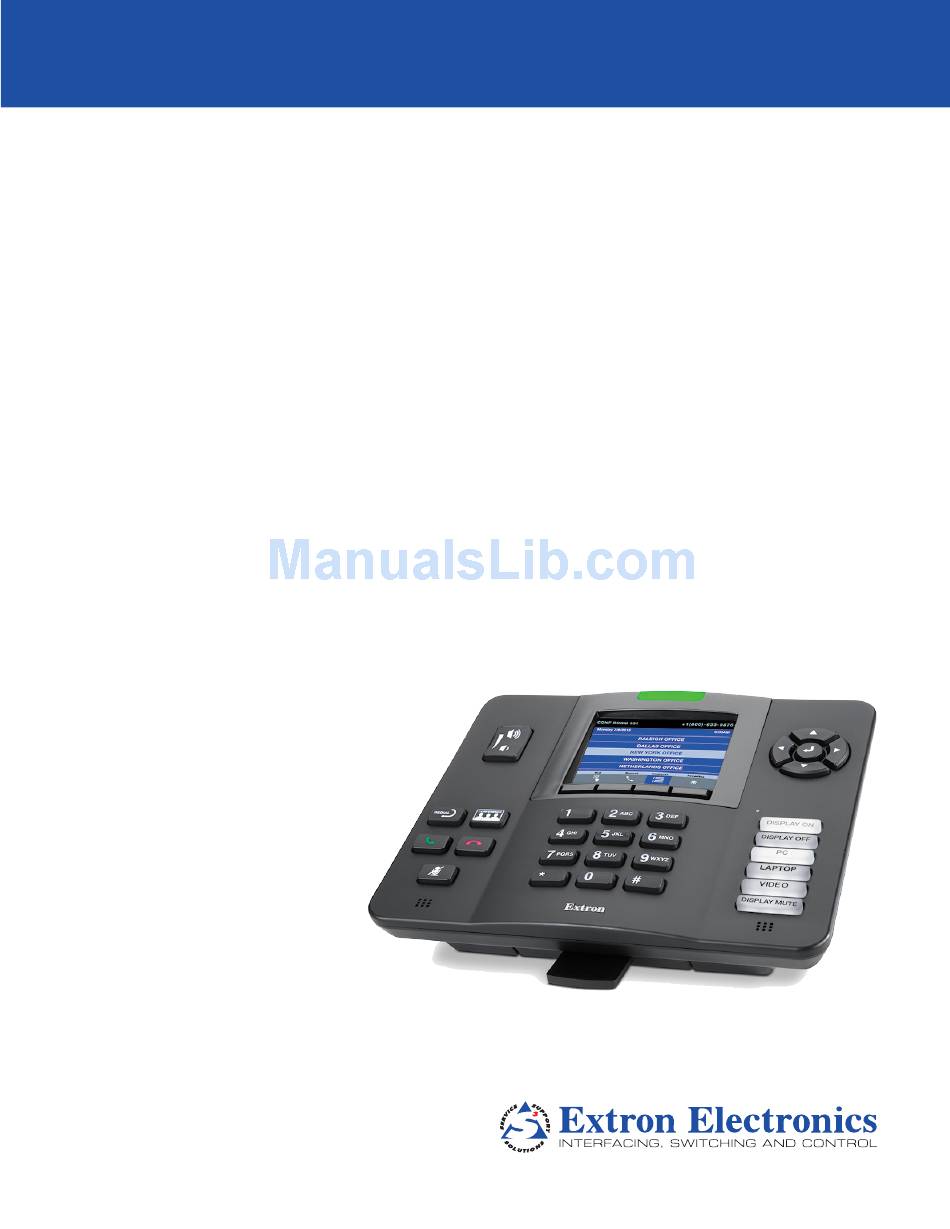

- Page 1 User Guide TouchLink ® CCI Pro 700 TouchLink Pro Conference Room Control Interface 68-2785-01 Rev. B 07 16...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano Il simbolo, , se usato sul prodotto, serve ad avvertire l’utente AVVISO: WARNING: This symbol, , when used on the product, is intended to della presenza di tensione non isolata pericolosa all’interno del contenitore alert the user of the presence of uninsulated dangerous voltage within the del prodotto che può... - Page 3 Extron, AVTrac, Cable Cubby, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Global Configurator, GlobalViewer, Hideaway, Inline, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, and XTP Systems...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Conventions Used In This Guide
Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C... -
Page 7: Table Of Contents
Navigation and Data Entry ........ 10 Setup Menu System ......... 11 Status Submenu ........... 11 Network Submenu ........12 Display Submenu.......... 13 Audio Submenu ..........14 Advanced Submenu ........15 CCI Pro 700 TouchLink Pro Conference Room Control Interface • Contents... - Page 8 CCI Pro 700 TouchLink Pro Conference Room Control Interface • Contents viii...
-
Page 9: Introduction
This guide contains information about installing, operating, and configuring the CCI Pro 700 TouchLink Pro Conference Room Control Interface. In this guide, the terms “CCI Pro 700” and “interface” refer to the CCI Pro 700 TouchLink Pro Conference Room Control Interface. -
Page 10: Application Diagram
IN G 01 02 IN G 01 02 1.0A MAX RESET AXP 50 C AT Extron AXP 50 C AT Audio Expansion Processor (Audio Expansion Typical of 5) Figure 1. Typical Application Diagram CCI Pro 700 TouchLink Pro Conference Room Control Interface • Introduction... -
Page 11: Installation Overview
• Mount and cable the units: Mount the unit on a flat surface (see Mounting on page 21). Remove the CCI Pro 700 from the base to access the rear panel (see Rear Panel Access on page 5). Cable Routing Route an Ethernet cable through the opening in the base (see page 9). -
Page 12: Panel Features
• • Rear Panel Features Front Panel Features The CCI Pro 700 comes with installed buttons for common functions (see Button Replacement on page 21 for information on changing the buttons). However, button functions are not assigned until configured in Global Configurator Plus and Professional (see the Global Configurator Help file). -
Page 13: Rear Panel Features
To access the rear panel, remove the CCI Pro 700 from the base as follows: Firmly hold the base and lift up the tab on the top of the CCI Pro 700 to dislodge the CCI Pro 700 from the base. -
Page 14: Rear Panel Buttons And Connector
A BC LAN and Power over Ethernet (PoE) connector (see page 7) Menu button (see page 8) Reset button and LED (see page 8) Figure 5. Rear Panel Features CCI Pro 700 TouchLink Pro Conference Room Control Interface • Panel Features... - Page 15 Connect a second straight-through cable between the power injector and the CCI Pro 700 to carry the network information and 48 VDC from the power injector to the interface. Connect the IEC power cord to a convenient 100 VAC to 240 VAC, 50-60 Hz power source.
- Page 16 ATTENTION: • The CCI Pro 700 is intended for connection to a Power over Ethernet circuit for intra-building use only and are considered to be part of a Network Environment 0 per IEC TR62101. • Le CCI Pro 700 est conçu pour une connexion à un circuit PoE pour une utilisation intérieure seulement et est considéré...
-
Page 17: Cable Routing
Connect the cable to the LAN and PoE connector (see figure on page 6) Route the cable around the guides of the CCI Pro 700 as shown in figure 9. Figure 9. Routing Cable along the Rear Panel Reattach the CCI Pro 700 to the base. -
Page 18: Setup Menu
To enter letters, note the groups of letters on the keypad buttons and press the button repeatedly until the desired letter appears on the LCD screen. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu... -
Page 19: Setup Menu System
Setup Menu System The setup menu contains four submenus for configuring the CCI Pro 700 and one to display information about the CCI Pro 700. The available submenus include: • Status Submenu • Network Submenu • Display Submenu • Audio Submenu Advanced Submenu •... -
Page 20: Network Submenu
Navigation Keypad enter values. The range is 0.0.0.0 to 255.255.255.255 (the default is 0.0.0.0). NOTE: Use the button to enter a period ( ) character. * Keypad CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu... -
Page 21: Display Submenu
To deactivate Sleep mode after it has been activated, perform one of the following: Press a button on the front panel. • With wake on motion mode enabled, make a motion near the device. • CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu... -
Page 22: Audio Submenu
Sound volume — Press the ◄ and ► • buttons to set the audio level of Navigation playback audio. The sound volume range is 0-100% of the master volume. The default value is 80%. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu... -
Page 23: Advanced Submenu
PIN number (see Keypad figure 16). Figure 16. Enter New Menu Pin Submenu • Controller IP address — Displays the IP address of the connected controller. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu... - Page 24 Revision date — Displays the date the GUI Designer file was last modified in the format , where is the month and is the minutes. MM/dd/yyyy hh:mm:ss Project resolution — Displays the resolution in the format [width]x[height]. • CCI Pro 700 TouchLink Pro Conference Room Control Interface • Setup Menu...
-
Page 25: Configuration Software
Software Descriptions GUI Designer Use the GUI Designer software to design the LCD screen layout for the CCI Pro 700. See the GUI Designer Help file for more information about the software. The LCD screen is 3.5 inches with a resolution of 320x240. -
Page 26: Software Overview
Software Overview To design a graphical user interface (GUI) for the CCI Pro 700 and configure button functions, perform the following steps: Download and install GUI Designer and Global Configurator Plus and Professional to a computer connected to the same network as the control processor and CCI Pro 700... -
Page 27: Software Installation
Figure 20. CCI Pro 700 Web Page Web Page Access In a Web browser, enter the device IP address. If the CCI Pro 700 is password-protected, enter the interface username and password. NOTE: The interface has the following default login credentials: •... -
Page 28: License Information
Close Firmware Updates To upload firmware to the CCI Pro 700, use the internal Web page or the Toolbelt software. For information on Toolbelt, see the Toolbelt Help file. To upload firmware to the CCI Pro 700 with the internal Web page, perform the following:... -
Page 29: Reference Information
4) and mode buttons (see figure on page 4) come installed in the CCI Pro 700, but any or all of these buttons can be replaced if they are assigned different functions when the device is customized. The interface ships with the following default set of buttons installed: (mode buttons) •... - Page 30 Reconnect the front panel with the same seven screws removed in step 3. Reconnect the power to the CCI Pro 700. Reattach the CCI Pro 700 to the base. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Reference Information...
-
Page 31: Reset Modes
(<1 second). values including IP settings and real-time adjustments. All user-loaded files are deleted. • • The Reset LED blinks four times in quick succession during the reset. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Reference Information... -
Page 32: Firmware Download
A Release Notes file, giving information on what has changed in the new firmware version, and a set of instructions for updating the firmware are also loaded. Firmware Updates on page 20 for firmware installation considerations. CCI Pro 700 TouchLink Pro Conference Room Control Interface • Reference Information... - Page 33 Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
