Summary of Contents for Suzhou Hyco Information Technology W16

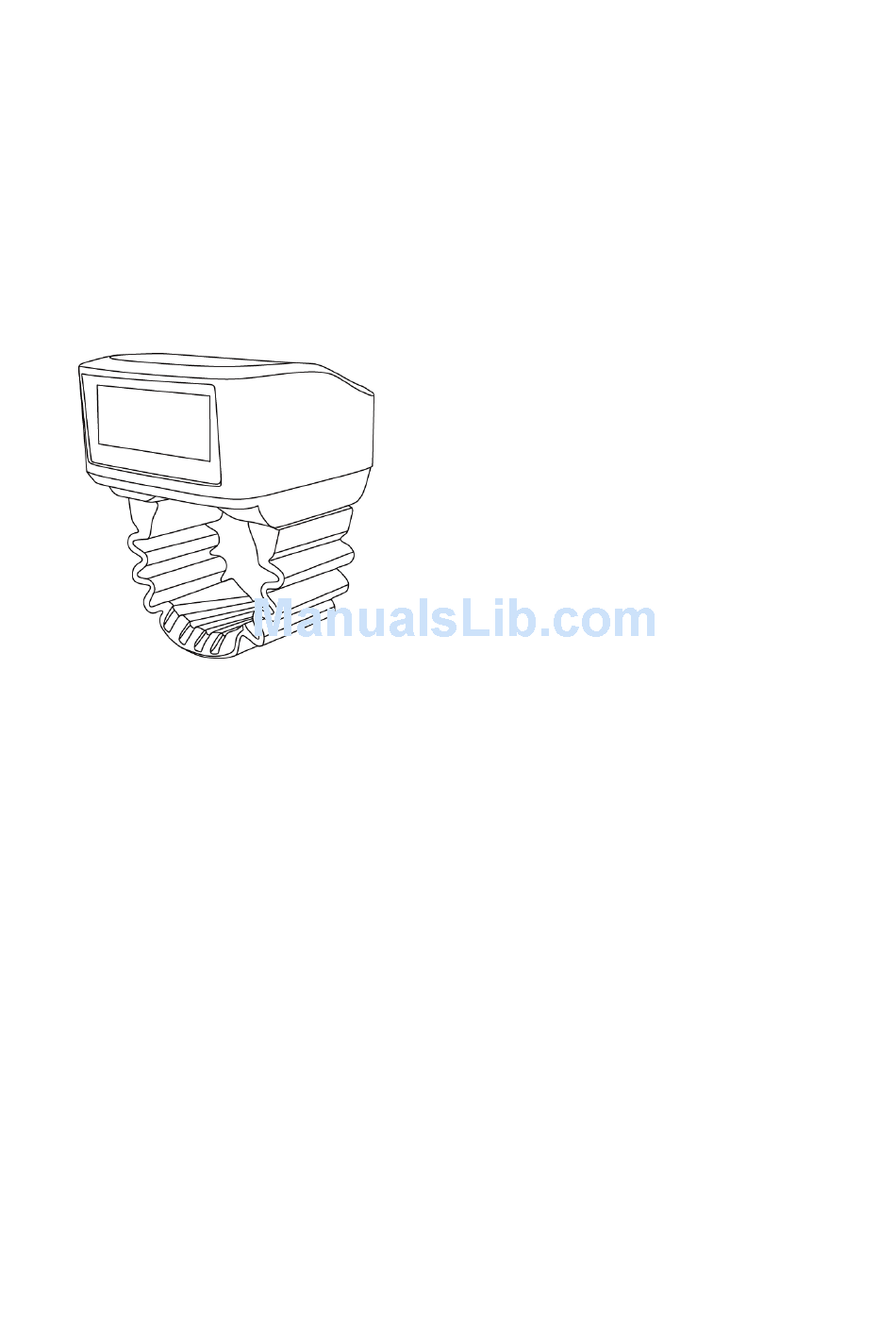

- Page 1 Ring Scanner Quick Reference Guide...
- Page 2 This manual is copyrighted. No part of this publication may be reproduced or used in any form without written permission from Hyco. Suzhou Hyco Information Technology Co., Ltd. reserves the right to make final interpretation of the statement above. Suzhou Hyco Information Technology Co., Ltd.
- Page 3 RING SCANNER QUICK REFERENCE GUIDE 1. Appearance Ring scanner Bluetooth charging station Laser direction: straight Wearing: on left or right index finger. Triggering: Touch either side of the ring scanner to trigger the scanning 2. Charging 2.1 charge the ring scanner...
-
Page 4: Bluetooth Connection
RING SCANNER QUICK REFERENCE GUIDE charging illustration 1 charging illustration 2 Connect the charging station to the power supply, then put the ring scanner into the station with the scan window upward. Now the charging contactors of the ring scanner and the station are contacted. ... - Page 5 RING SCANNER QUICK REFERENCE GUIDE ring scanner, the blue light of the charging station on indicate the Bluetooth communication between ring scanner and the charging station is successfully set up. 3.2 Working with a tablet PC or a phone Firstly, scan the "Bluetooth connection barcode" on the side of the charging station with the ring scanner.
-
Page 6: Product Details
RING SCANNER QUICK REFERENCE GUIDE 1. Charging station, and Base 2. Bluetooth receiver for ring scanner Charging power supply, simultaneously with USB cable Charging adapter 1. Connect charging station to pc, or 2.Connect charging station to charging adaptor USB data cable Different sizes for various fingers Finger wearing component （Supplies）... -
Page 7: Getting Started
RING SCANNER QUICK REFERENCE GUIDE Vibration reminder Support Base Bluetooth adapter with Charging base Operating hours 18 hours ( under condition of 1 scanning every 3 seconds) Scanning times of a full charged scanner 30,000 + times Scan button Touch-keys on both sides with life of more than 100 million times Wearing on left or right index finger... -
Page 8: Maintenance
RING SCANNER QUICK REFERENCE GUIDE The green light flash indicates a successful scanning. The red light double flash indicates low battery. The green light turning off after turning on 1 second indicates a successful Bluetooth connection. The blue light turning off after turning on 1 second indicates a broken Bluetooth connection. -
Page 9: Code Settings
RING SCANNER QUICK REFERENCE GUIDE » Only use clean water as a cleanser CE Mark FCC Mark 8. Code settings Common bar code is used to refer to the setting of the bar code scanning, the new set of commands to be executed. 8.1 Scan bar code "Device information"... - Page 10 RING SCANNER QUICK REFERENCE GUIDE 8.3 Scan bar code "Restore Bluetooth" only to restore the name of the Bluetooth, has set the way of scanning and other settings will not change. 8.4 Scanning bar code "Continuous scanning", continuous touch case to maintain a long light state, can achieve rapid scanning of bar code.
- Page 11 RING SCANNER QUICK REFERENCE GUIDE 8.8 Scan bar code “Automatic interval scanning-increase”, in the case of automatic intermittent continuous scanning for adjusting the scan time, scan time interval increased by 0.5 seconds, the slowest to 3 per second. 9. Light swing adjustment According to the length of the commonly used bar code changing the swing of the light (relative distance) has reached a better recognition effect.
- Page 12 RING SCANNER QUICK REFERENCE GUIDE then purple light flashes for a while (put ring scanner to the desk as far as possible to avoid any vibration and other unstable factors). It functions normally when the purple light turns off. It can realize fast batch barcode scanning. The reasonable calibration can enhance the effect of scanning, while improper calibration will affect the scanning experience.
- Page 13 13. Connection settings for different devices The following bar codes apply to connection between W16 ring scanner and computer, mobile phone, and tablet PC. 13.1 To work with computer, scan the "COMMON" barcode by the ring scanner from working with other devices to working with a pc.
