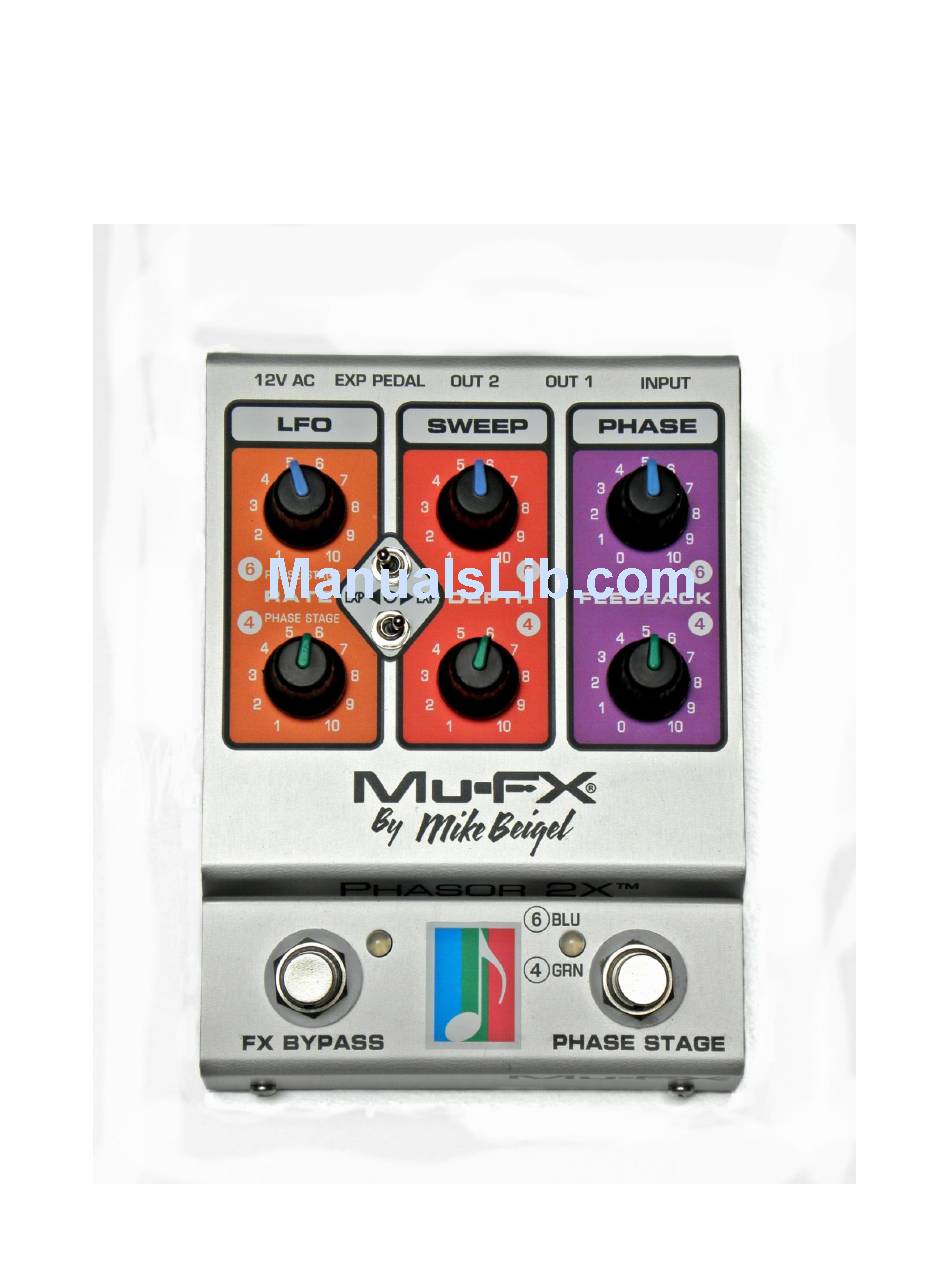

- Page 1 MU-FX PHASOR 2X SPECIFICATIONS AND OPERATION MUSICIAN’S MANUAL...
- Page 2 The Mu-FX Phasor 2X provides 4 and 6 stage OPTICAL phasing – for the best possible dynamic range and signal-to-noise ratio - without the distortion inherent in FET and transconductance-amp phasors.
- Page 3 FEATURES AND SPECIFICATIONS • 4 and 6-stage phasing modes (foot-switch selectable to main output) • Smooth and consistent phase sweep by LFO, expression pedal or control voltage • Stereo output for 4 and 6 stage modes (“secret sauce” phasing to second (or stereo) output) •...
- Page 4 PANEL CONTROLS: TOP PANEL 6-STAGE MODE CONTROLS RATE 6: Exponential LFO (from 10 second period to 20 Hz) DEPTH 6: LINEAR Sweep control from zero sweep to full-scale (optimized for 6-stages) FEEDBACK 6: Zero to max positive feedback around phase stages PED/CV SWITCH 6: RATE –...
- Page 5 TRUE bypass mode. - Both modes ESD protected by ferrite bead EXP PEDAL Jack: For use with either Mu-FX/Mission XP-2 pedal or external Control Voltage (0-5 volts low-impedance drive for full range of RATE or SWEEP). Ring: 5V short-circuit protected voltage to XP-2 pedal, 10 milliamps output to XP-2...
- Page 6 CV input DC Resistance: 1 Meg ESD protected, biased to 2.5V TIP - input control voltage from XP2 or External CV input SLEEVE - Control signal ground Do not use RING to power an external CV device! POWER SUPPLY JACK: 12V AC ONLY at 50-60 Hz, 15V AC Maximum, 200 milliamp max current draw.
- Page 7 WARRANTY: 1Year Parts and Labor for defects in product resulting in product failure or faulty performance. Tampering with product or accidental breakage will void the warranty.
