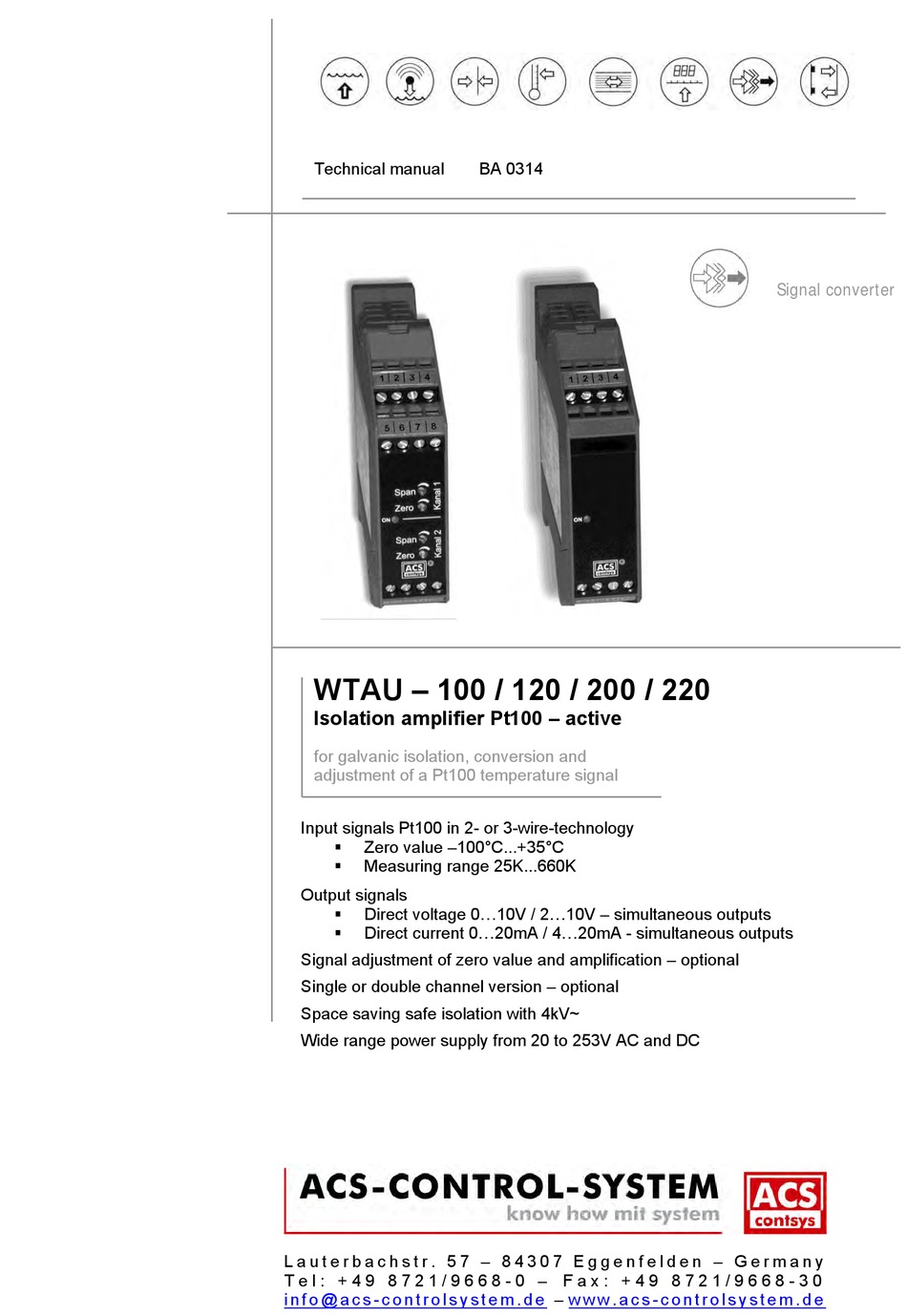

ACS WTAU-100 Technical Manual

Technical manual
WTAU – 100 / 120 / 200 / 220
Isolation amplifier Pt100 – active
for galvanic isolation, conversion and
adjustment of a Pt100 temperature signal
Input signals Pt100 in 2- or 3-wire-technology
Zero value –100°C...+35°C

Measuring range 25K...660K

Output signals
Direct voltage 0...10V / 2...10V – simultaneous outputs

Direct current 0...20mA / 4...20mA - simultaneous outputs

Signal adjustment of zero value and amplification – optional
Single or double channel version – optional
Space saving safe isolation with 4kV~
Wide range power supply from 20 to 253V AC and DC
