SAMSONIX SM-430FHD User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Rear Mirror DVR
SM-430FHD
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-430FHD and is the answer not in the manual?

Questions and answers

Summary of Contents for SAMSONIX SM-430FHD

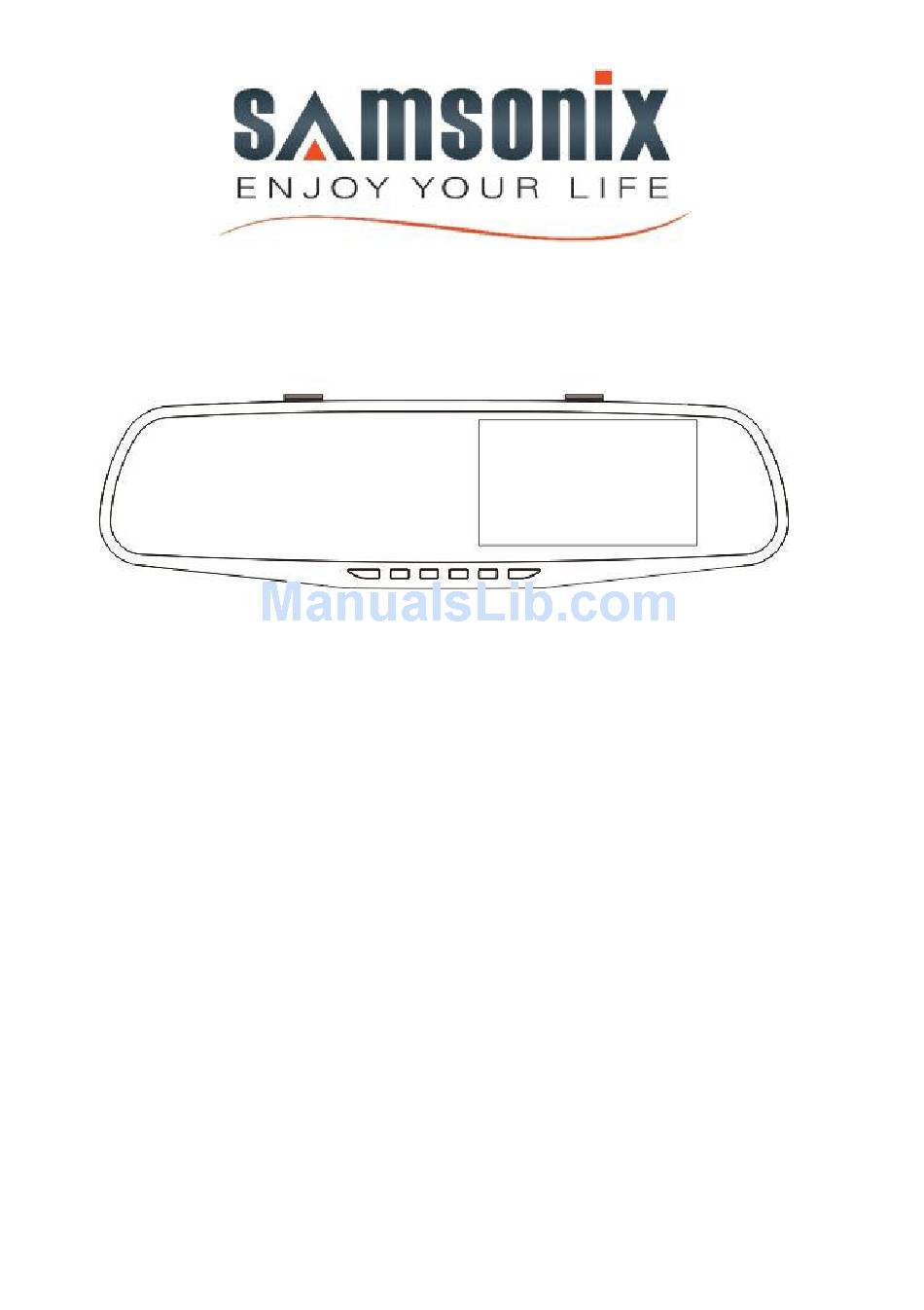

  • Page 1 Rear Mirror DVR SM-430FHD User Manual...
  • Page 2 Description of Appearance and Key Functions Key diagram 1、USB port 2、AV in 3、TF card slot 4、Power 5、Menu 6、Mode 7、Up 8、Down 9、OK 10、Reset Key function introduction...
  • Page 3 1．Power Function 1: Power on/off In power-off state, press and hold <Power> for three seconds to power on DVR. then, the DVR begins to work automatically. In power-on state, press and hold <Power> for three seconds. Then, the DVR saves the video-recording file automatically and is powered off. Function 2: Backlight In power-on state, press <Power>...

  • Page 4: Operation Guide

    motion detection. 5. Down Function 1:Dow page functio Dow page function at menu setting and plackback mode. Function 2: Audio record At being recording mode, press Down key shorlty to close or open audio record. Function 3:Parking monitoring At standby and being recording mode, press Down key long to open or close parking monitoring function.
  • Page 5 [Note] Please use a high-speed TF card (Class 6 or above) with a minimum capacity or 8GB and a maximum of 32 GB. 3. Fasten the DVR to the rear mirror by using a rubber clamp at the back. 4. Insert the in-vehicle charger into the cigar lighter of the automobile, and insert the 3.5DC male connector to the DC female socket of the DVR.
  • Page 6 from a video camera to a still camera, press OK key shortly to take a picture, if need to be back to recording mode, press Mode shortly. 3. Lock function At being recording status, press Menu key shortly to lock current file. 4.
  • Page 7 device will be recording normally. [Note]if need this function of visual of reversing car, red and black lines of connection cable need to connect reversing light, only professional car repairers can install it. 10.Parking monitoring function Under standby mode, enter menu to open “Parking Monitoring” function, meanwhile, a “P”...
  • Page 8 temperature Operation humidity 15-65%RH Strage capacity 8GB～64GB MINI USB 5V Power *Note:Specific specification is subject to real product.
