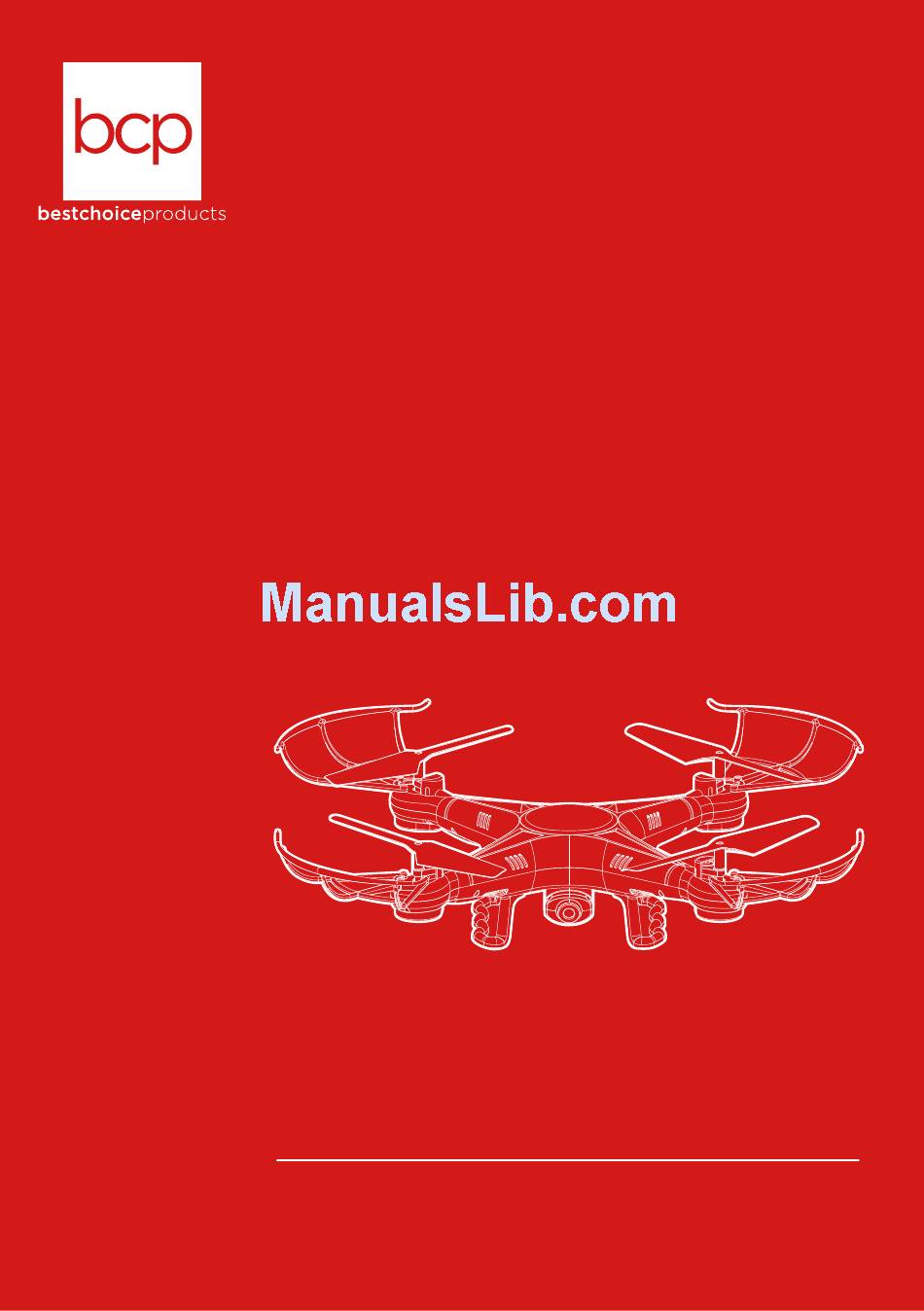

- Page 1 INSTRUCTION MANUAL Quadcopter with HD Camera Ver. 3 SKY1809...
-
Page 2: Battery Warnings
CAUTION Please retain these instructions for future reference. • Ensure that the drone is correctly assembled to prevent any injuries or accidents. • This product is intended for ages 14 and older. • This product is recommended for outdoor use or open spaces. Make sure to follow local laws and regulations regarding drone flight in public areas. -
Page 3: Install Camera
PARTS LANDING GEAR PROPELLER CAGES SPARE PROPELLERS USB CHARGING CABLE 2 PC 4 PC 4 PC 1 PC MICROSD CARD/ BATTERY CAMERA REMOTE CONTROL USB READER 1 PC 1 PC 1 PC 1 PC SETTING UP YOUR QUADCOPTER DRONE: Install the landing gear onto the bottom of the Install the propeller cages onto the corners of the quadcopter with four part 1 landing gear screws. - Page 4 PREPARE THE QUADCOPTER FOR FLIGHT 1. Turn on the remote control. 2. Open the battery cover on the quadcopter, insert the battery, and plug it into the designated power port. 3. Turn on the quadcopter. 4. Push the left control lever (throttle) to the highest position, and then pull it back to the lowest position.
-
Page 5: Photo & Video
360° EVERSION • Once you have a general understanding of how to control the quadcopter you can activate the 360-degree eversion function. • Fly the quadcopter at a minimum height of 9 feet. • Press the 360-degree eversion button located on the top right of the remote control, then move the right control lever in the direction you wish to flip. - Page 6 THROW-TO-FLIGHT The 6 axis gyroscope allows you to throw this drone into flight. Throw the drone and immediately push the left control lever (throttle) up. The drone will automatically level out and hover. DRONE BREAKDOWN Reverse Propeller Propeller Propeller Cage Reverse Propeller Propeller...
-
Page 7: Remote Control Diagram
REMOTE CONTROL DIAGRAM Power on/o Toggle high/low speed 360° eversion Left control lever Right control lever (throttle) Forward/backward fine tuning Take photo (Up)/ Take video (Down) L/R turn fine tuning* Headless Mode (Left)/ Auto Return (Right) *Hold to the right prior to powering on the remote to flip roll and turn controls REMOTE CONTROL DIAGRAM L/R turn fine tuning... -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Non-responsive drone • Drone battery is depleted • Charge the drone battery • Remote control battery is depleted • Charge/replace the remote control battery • Frequency on the remote control • Adjust the frequency on the remote does not correspond to the drone control while maintaining the frequency on the drone...
