Summary of Contents for mrk VP02

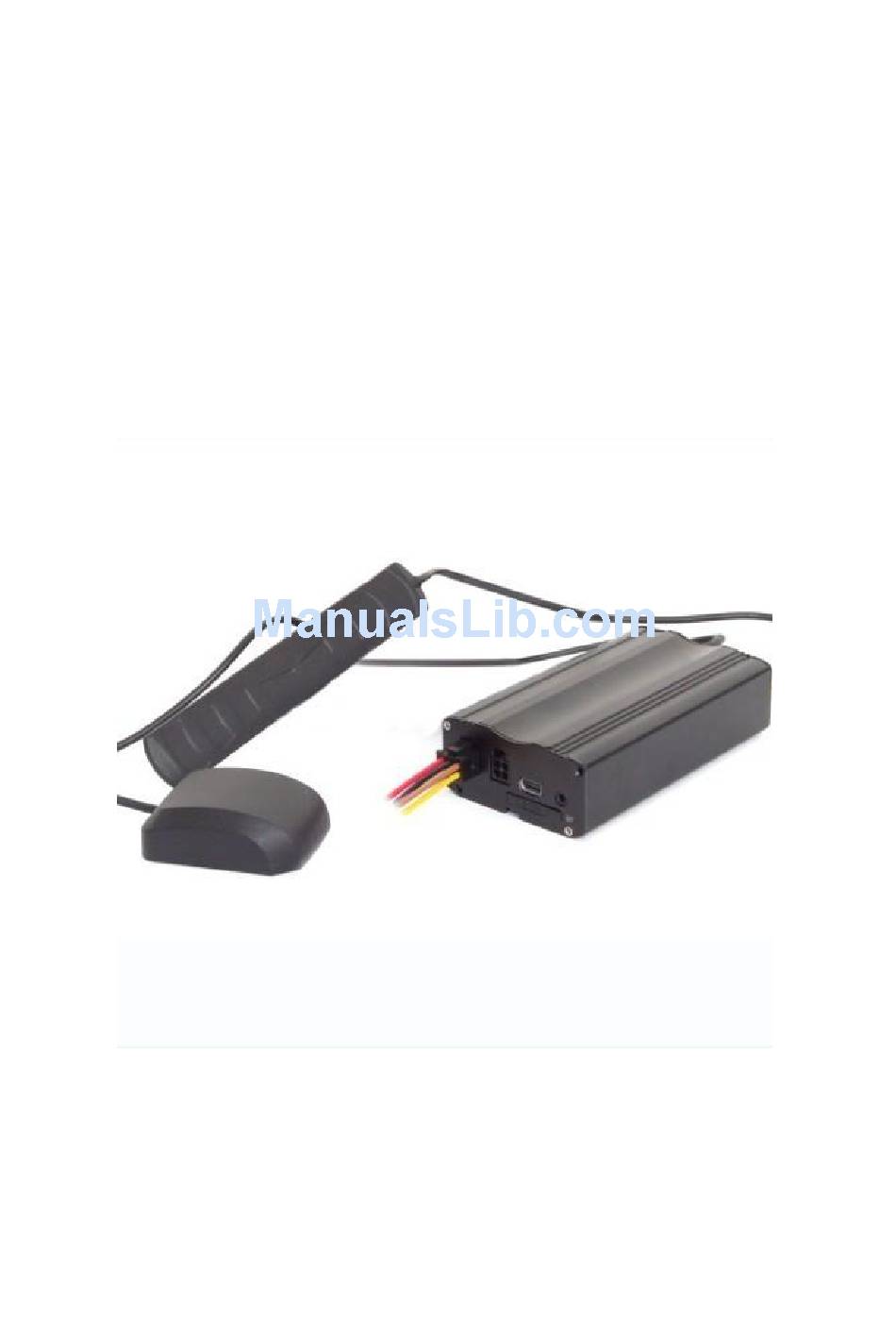

- Page 1 Introduction to MRK-VP02 GPS Tracker...
- Page 2 Introduction VP02 GPS/GSM Tracker is a compact vehicle remote positioning device with built-in GPS and GSM/GPRS. The device can transmit the longitude and latitude coordinates to your cell phone by SMS. User can make use of the coordinates to find GPS Location using Google Maps or other map software. Besides, the tracker can also capable of sending GPS data to a designated server via GPRS connection, allowing user to do web-based real-time monitoring, real-time tracking and historical playing back.
-
Page 3: Technical Specifications
Technical Specifications Key Features: External SIRF Star III/ JRC Chipset, excellent for fixing GPS position even with weak signal status. Work well under bad weather condition. Built-in GSM/GPRS module, support Two or Quad band GSM 900/1800 MHz (850/1900 Optional) ... - Page 4 Specifications GSM module MTK program, GSM 900/1800/850/1900 dual-band or quad-band Support the TCP protocol GPS Chipset JRC/SIRF III high sensitive chipset -164dB GPS sensitivity C/A Code 1.023MHz chip rate Channels 20 channel all-in-view tracking GPS frequency L1,1575.42MHz GPS Position Accuracy 2.5 meters, CEP 0.1m/s Velocity Accuracy...
- Page 5 Interface & LED Antenna Battery Antenna indicator indicator indicator LED Status Blue LED: GSM signal status Status Description Flashes every 8s GSM network stand by Flashes every 1 sec No GSM network or SIM card not detected Red LED: Battery status Status Description Light ON...
-
Page 6: Package Contents
Please read this manual before you carry hardware installation. If you have doubts, please contact your local representations for help. Package Contents: a) 1 x VP02 GPS/GSM Vehicle Tracker b) 1 x Power cable c) GPS Anetnna x 1... - Page 7 Circuit Layout Earphone & MIC SIM Eject Port 1 holder Note: A 4-input Port beside “Port 1” is a reserved port, not used.
