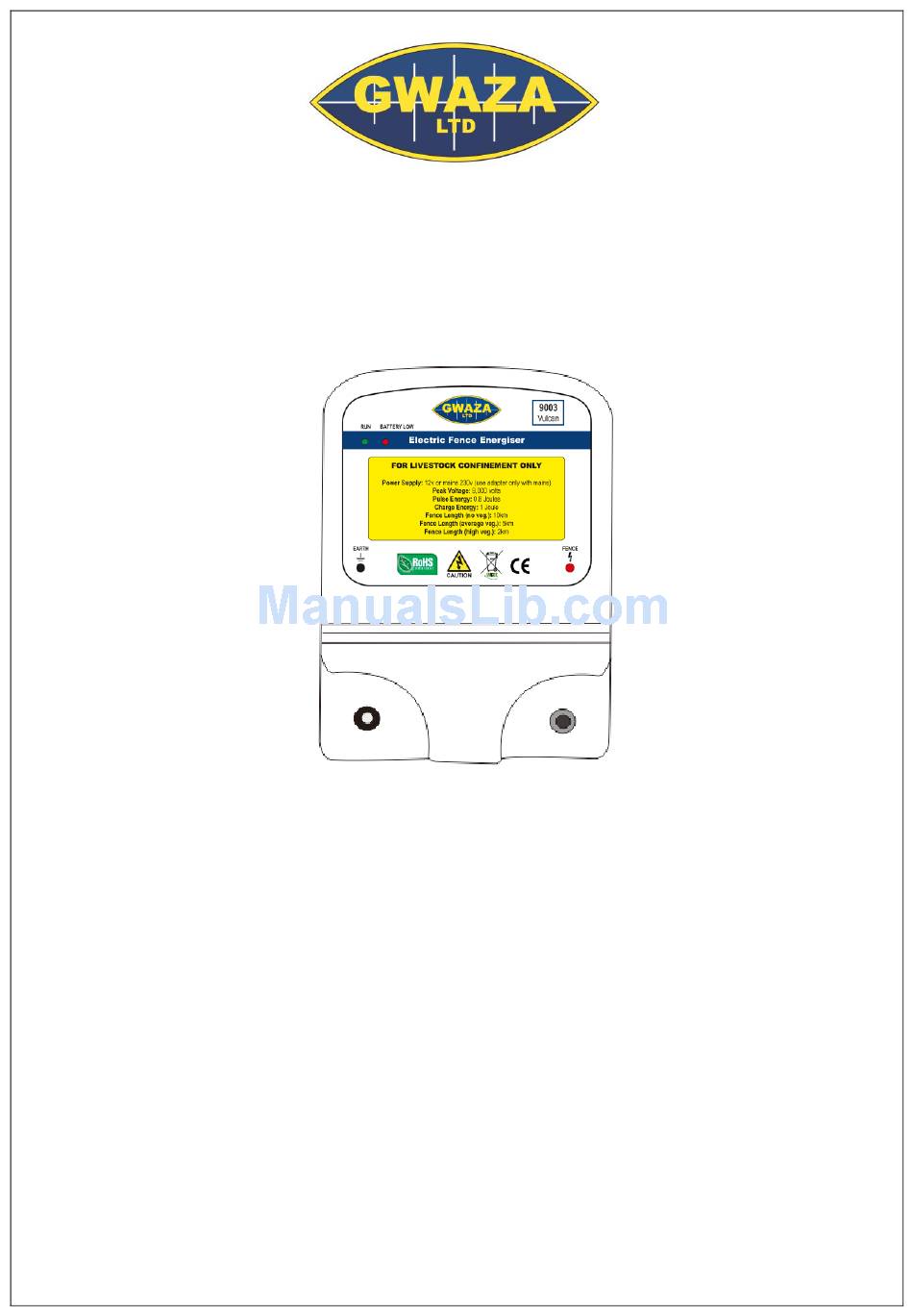

- Page 1 "VULCAN" 9003 ELECTRIC FENCING ENERGISER USER MANUAL...
-
Page 2: Table Of Contents
Contents 1. Introduction ..................... 3 2. Safety requirements and regulations ............3 3. Specification ................... 6 4. Installation guide ..................8 5. Maintenance ..................10 6. Guarantee ....................11 7. Contact Information ................11... -
Page 3: Introduction
Foreword Thank you for buying a Gwaza electric fence energiser. Gwaza is an electronic fence company who have been designing and manufacturing electric fence energisers, testers and accessories for over 40 years. The "Vulcan" energiser has built-in lightning protection devices to help minimise the risk of lightning damage and built-in RFI (Radio Frequency Interference) Suppressed Circuitry. - Page 4 It is recommended that, in all areas where there are unsupervised children, that a suitably rated current limiting device having a resistance of not less than 500 ohms be connected between the energiser and the electric fence. The appliance is not intended for use by young children or the disabled. ...
- Page 5 IPX4. This energiser complies with international safety regulations and is manufactured to international standards. Gwaza Ltd reserves the right to make changes without notice to any product specification to improve reliability, function or design.
-
Page 6: Specification
3. Specification A) Battery powered electric fence energiser (powered by 9 V/12V lead-acid) Features: 1. Water-proof and anti-dust pulse current technology, longer battery lifetime. 2. Low average current. 3. Ultra bright LED indicator to show when the battery is running low. 4. - Page 7 C) Mains powered electric fence energiser Features: 1. Water-proof and anti-dust pulse current technology. 2. Ultra bright LED indicator for operation status 3. Easy-access terminals and mounting brackets for quick connections and installations 4. Bottom easy to plug input terminals. 5.
-
Page 8: Installation Guide
4. Installation guide Step 1. Mount the Energiser According to the type of energiser, find the corresponding installation method as follows: Battery energiser: If installing outside, please install the energiser in a weather proof box and out of reach of children. Install where there is no risk of the energiser incurring fire or mechanical damage and where the battery leads can be attached easily. - Page 9 Step 2. Connect to earth (ground) system Using the lead-out cable remove 5cm (2”) of plastic coating from one end of the cable and attach to the green terminal on the energiser. Attach the cable to the earth system by removing 10cm (4”) of insulation from the cable at each earth stake and then clamp the exposed wire to each stake using an "Earth Clamp".
-
Page 10: Maintenance
HOW TO INSTALL THE FENCE 1. Plan the fence line. Avoid rough, stony or steep areas if possible. For best electric fence performance use multi-wire (at least 3 wires connected in parallel) fencing. 2. Install end strain posts and corner posts. Ensure that all corner posts are firm to withstand the wire strain. -
Page 11: Guarantee
7) Influence of foreign objects and force majeure (lightning strike, overvoltage, severe weather, fire etc). 7. Contact Information If you have any further technical questions about our products, please contact us: Gwaza Ltd www.gwaza.co.uk Add: Ennerdale Road, Harlescott, Shrewsbury, Shropshire, ENGLAND, SY1 3NR Tel: +44 1743 461371... - Page 12 The design and specification shall be subject to any due changes without prior notice. The final interpretation right of this event is reserved by Gwaza Ltd. AppendixⅠ Name Phone NO. Customer information Address Model Model NO. Products Failure information description...
