SIM100 Quickstart Guide
Quick Start

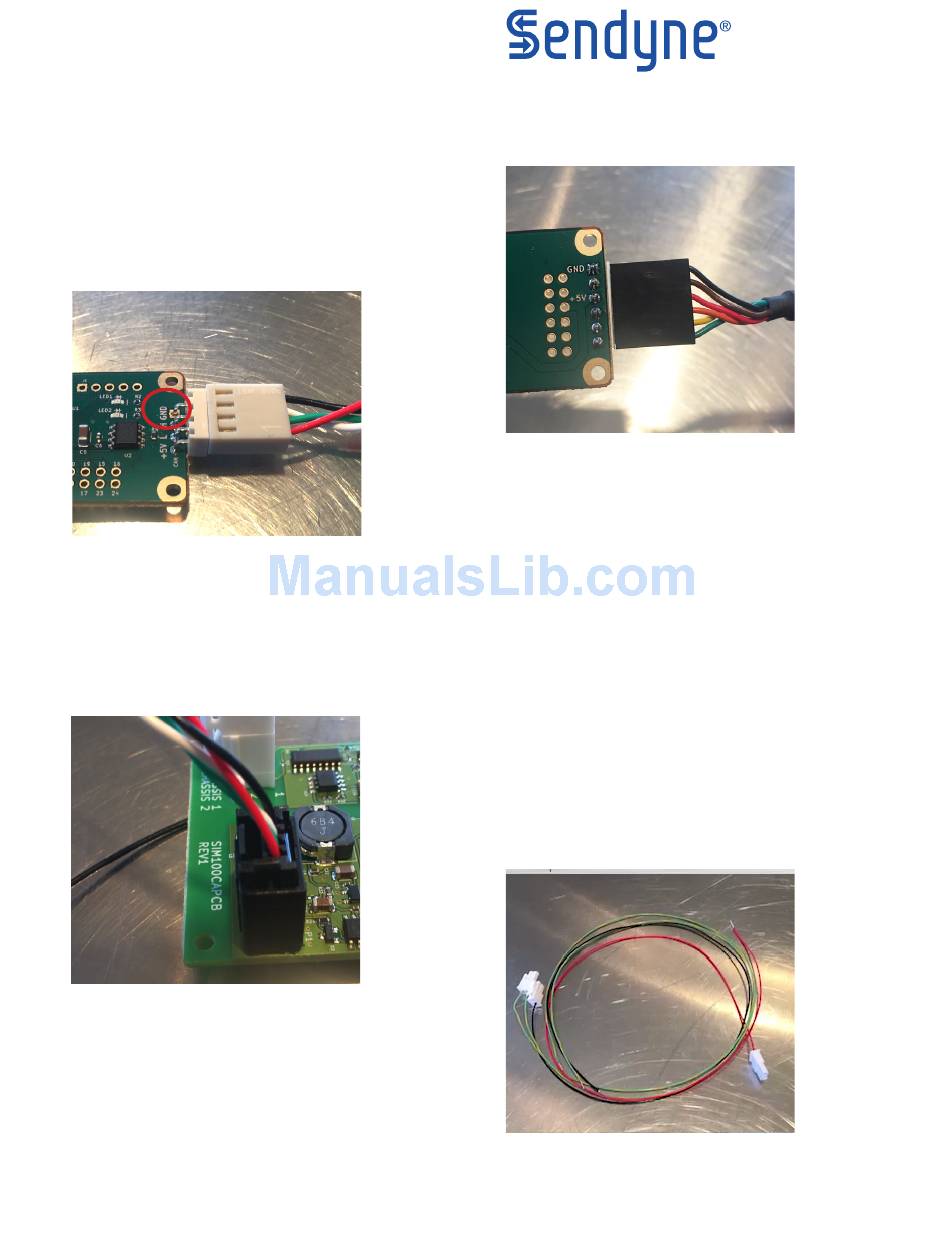

1. Plug the 4-pin connector on the 4-strand serial to
CAN cable into the SCD (serial to CAN dongle). Make
sure the the pin attached to the black wire is aligned
with the pin labeled "GND" on the dongle.
Figure 1: Connecting Serial to CAN cable to SCD.
2. Plug the other end of the serial to CAN cable into
the CAN connector on the SIM100 module. You
should hear a click-sound when the connector has
been properly connected.
Figure 2: Connecting Serial to CAN cable to SIM100
3. Plug the 6-pin connector on the FTDI USB to Serial
cable into the 6-pin header connector on the SCD.
Align the black wire on the FTDI cable with "GND" on
the SCD, as shown in Figure 3.
Preliminary
Sendyne Sensing Products Family
®
Figure 3: Connecting FTDI cable to SCD
4. Plug the USB side of the FTDI cable into the com-
puter you will be using. Windows should auto detect
the drivers and install them for this device.
The blue LED light on the SIM100 module should now
be blinking. If not, please re-check steps 1-3 to ensure
that all cables have been properly connected.
Voltage cables
The SIM100 evaluation kit comes with three volt-
age cables (red, black, and green with yellow stripes)
that are to be connected from the module to a testing
system.
Figure 4: Three voltage cables in the SIM100KIT;
colors red, black and green with yellow stripes
Rev 0.1 © 2017 Sendyne Corp. 1
