LMX2306TM Evaluation Board Operating Instructions

General Description

The LMX2306TM Evaluation Board simplifies the evaluation of the LMX2306TM 550 MHz PLLatinum™ frequency
synthesizer. It enables all performance measurements, with no additional support circuitry. The board consists of a
LMX2306TM device, a VCO module and a loop filter built by discrete components. The SMA flange mount connectors
are provided for external reference input, RF output and the power & grounding connection. A cable assembly is
bundled with the evaluation board for connecting to PC through the parallel printer port. By means of MICROWIRE™
serial port emulation, the Codeloader software included can be run on PC to facilitate the LMX2306 internal register
programming for the evaluation and measurement.

Quick Start

Recommended Test Equipment
•
Spectrum Analyzer
•
Modulation Domain Analyzer
•
DC power supply with adjustable voltage output
•
Ultra low noise 10 MHz Signal Source

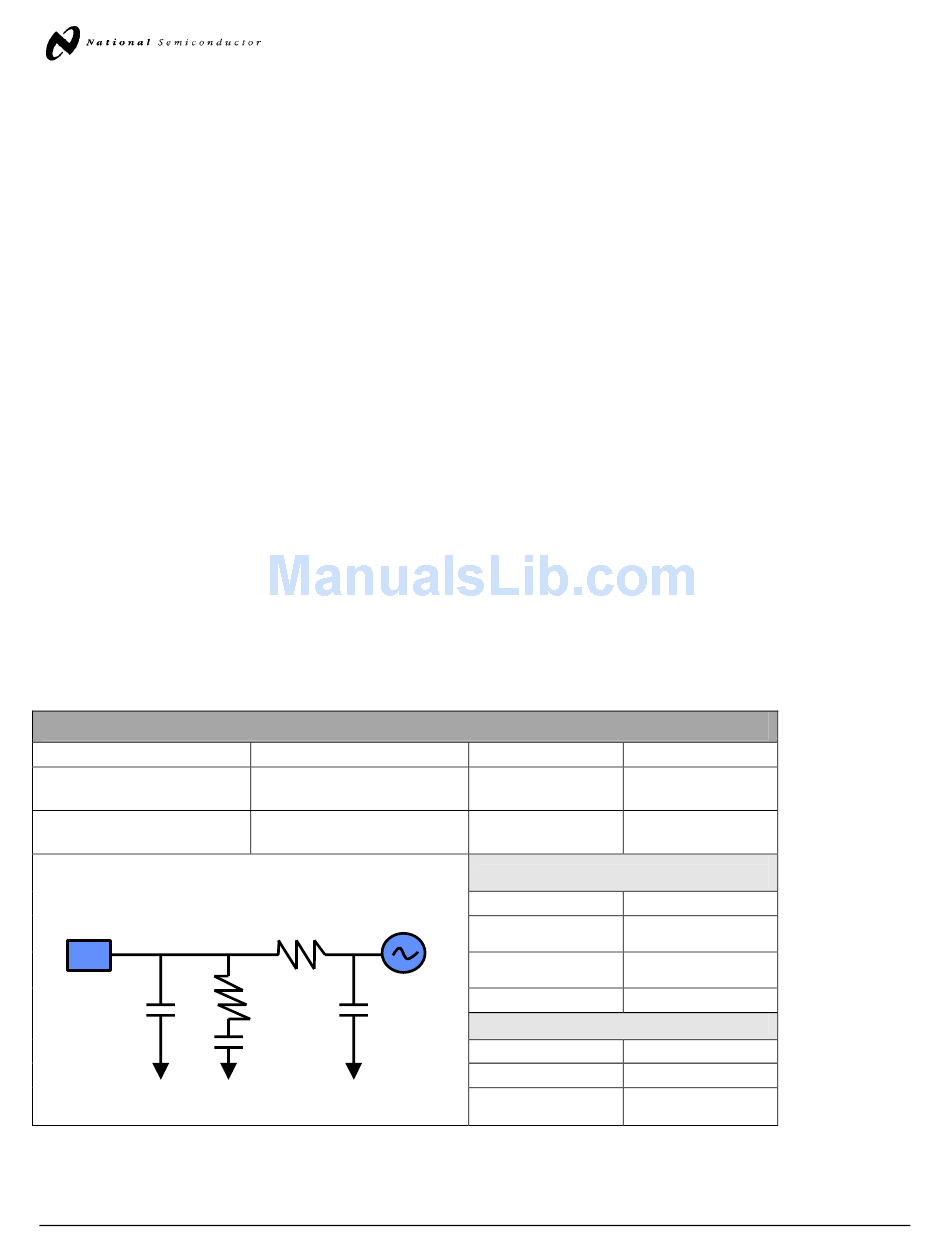

PLL Loop Filter Design
The table below summarizes the loop filter that is implemented on the LMX2306TM Evaluation Board. These results are
based on theoretical calculations, not measured results.
Phase Margin
Loop Bandwidth
Lock Time
Kφ
680 pF
L M X 2 3 0 6 T M
PLL LOOP FILTER DESIGN SUMMARY
51.3 deg
4.8 kHz
436 - 465 MHz to 1 kHz
tolerance in 625 µs
VCO
0 Ω
15 KΩ
OPEN
5600 pF
E V A L U A T I O N
B O A R D
Pole Ratio T3 /T1
Spur Gain
@ 50 kHz
Spur Gain
@ 100 kHz
Settings for Operation
KΦ
Comparison
Frequency
VCO Output
Frequency
VCO Supply

Other Information

VCO Used
VCO Gain
VCO Input
Capacitance
1
I N S T R U C T I O N S
0.0 %
47.9 dB
36.1 dB
1 mA (High Gain )
50 kHz
435 - 465 MHz
3 Volts
VARIL LVCO 4279U
20 MHz/Volt
100 pF
10-27-2003
