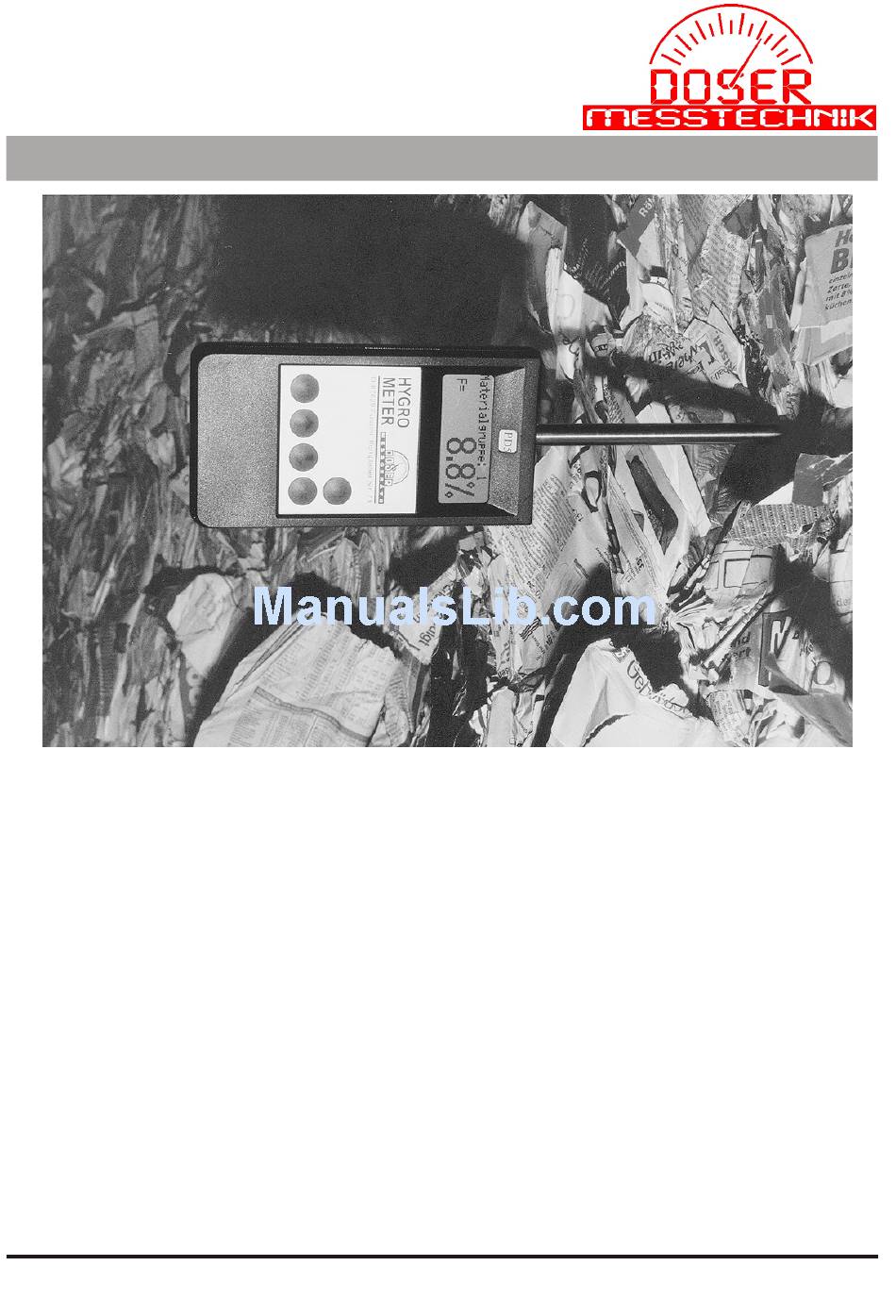

MOISTURE METER
STICKING ELECTRODE
DS5-AL Operating instruction
Moisture meter type DS5AL
for absolute moisture measurement in waste paper balls,
wooden chips, pellets, etc.
Duly use:
The electronic moisture meter DS5-AL is used to quickly
determine the moisture in materials
moisture content is measured.
materials:
measuring range: 0 - 100 % water content
material temperature range:
working temperature range:
storage temperature range:
version 072009
. An absolute average
wastepaper balls, wooden chips, pellets
+5 - +40°C
+5 - +40°C
-20 - +70°C
page 1
Advertisement
Table of Contents
Summary of Contents for DOSER Messtechnik DS5-AL
- Page 1 Moisture meter type DS5AL for absolute moisture measurement in waste paper balls, wooden chips, pellets, etc. Duly use: The electronic moisture meter DS5-AL is used to quickly determine the moisture in materials . An absolute average moisture content is measured.
- Page 2 Moisture meter type DS5-AL Method of operation: The measuring electrode of the meter is pushed into the paper or cardboard piles and a high frequented field is able to pass through the material. Taking in account the material setting, the percentage water content is determined.
- Page 3 Moisture meter type DS5-AL Parameter Settings: With code numbers parameter settings can be changed. Press both arrow buttons, the display shows “code:00“, adjust the required code with the arrow buttons and confirm it with OK. The following parameters are changeable:...
- Page 4 Moisture meter type DS5-AL Basic Calibration: start calibration procedure with code 97 1. zero point The zero point only can be tested, not adjusted. On the display the zero point (NP) and the actual measuring value (UM) are shown. At the test...
- Page 5 Moisture meter type DS5-AL Customer Specific Linearisation Curves: It is possible to store 10 special linearisation curves with up to 8 free programmable points each. The values in this storage will stay in the memory during replacement of the battery. The adjustemt of the calibration points can be done with the PC-software DMI-Controller, or they can be changed through the kexpad as decribed below.
- Page 6 Moisture meter type DS5-AL Battery: The meter works with a commercial 9V block battery. The capacity is continuously controlled. If the battery is running low, the display shows “BAT” Change battery: - open the battery box for example with a small screw driver Ser.
