Summary of Contents for EDL Displays 3018

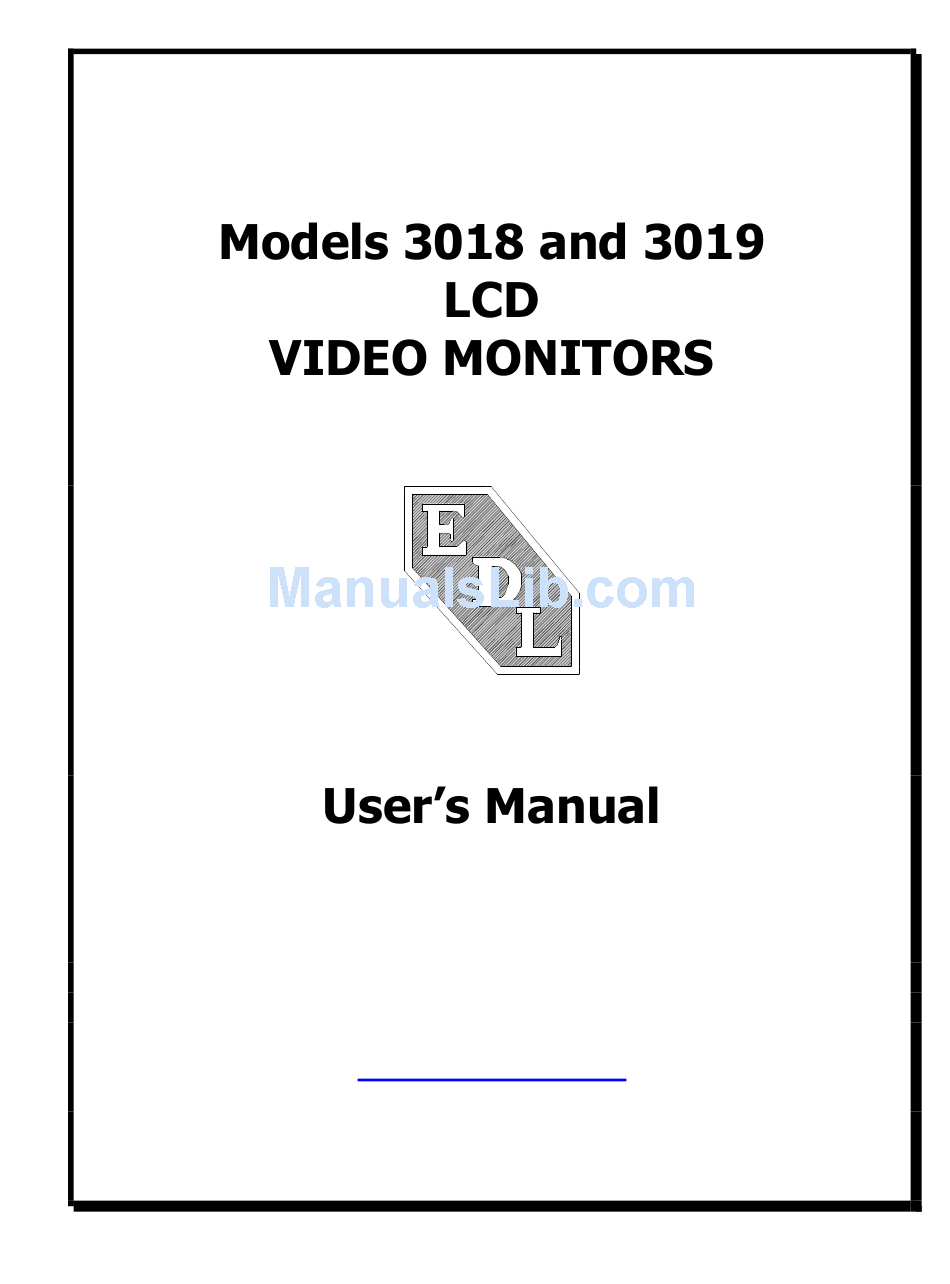

- Page 1 EDL Displays, Inc. 1300 Research Park Drive Dayton, Ohio 45432 (937) 429-7423 www.edldisplays.com Part Number: 3018-19-MAN-LCD, rev. 2, April 10, 2003...
-
Page 2: Notice To Users
EDL Displays, Inc. has made every effort to ensure that information presented in this manual is complete and accurate. However, EDL Displays, Inc. cautions that this information often relates, of necessity, to a typical or exemplary situation. -
Page 3: Table Of Contents
HD-15 HD-15 ........................ 21 HD-15 5 BNC ........................ 21 APPENDIX C: TOUCHSCREEN SERIAL INTERFACE ..........22 APPENDIX D: X-TERMINAL OPTION................23 ........................23 NSTALLATION ............24 ECOMMENDATIONS FOR ETUP OF THE TERMINAL Copyright © 2002 -iii- by EDL Displays, Inc. - Page 4 Figure 2 – 3018/19 front view, showing operator controls............8 Figure 3 – OSD Controls ......................12 Figure 4 -- 3018/19 I/O panel showing fuse location ............. 18 Figure 5 – Rear View 3018/3019 with X-terminal ..............23 Figure 6 – Optional Hand-held control unit................25 Figure 7 –...
-
Page 5: Introduction
User’s Manual INTRODUCTION FEATURES OF EDL 3018 AND 3019 LCD MONITORS • Screen diagonals of 18.1” and 19.0” • High performance video controller/scaler common to all models. • Full-range backlight dimming standard on all models • Luminance stabilization circuit standard on all models •... - Page 6 EDL Displays 3000 Series LCD Monitors Options available for the 3000 series monitors are described in the table below. 3018CM 3018RM 3018VM 3019CM 3019RM 3019VM Power Supply Options 115 to 230VAC Input (85 to 264VAC, 47 to 66Hz and 400Hz), IEC receptacle...
-
Page 7: Installation
If damage has occurred, the shipping carton and all packing materials should be saved for possible inspection by the shipping company, and the shipping company and EDL Displays should be notified immediately. NOTE: EDL recommends saving the packaging for re-use in case the monitor should ever have to be shipped to a new location. -
Page 8: Console Or Panel Mounting
EDL Displays 3000 Series LCD Monitors • Adequate ventilation must be available within the rack cabinet to ensure that monitor is not exposed to ambient temperatures above 50°C. • The relative humidity of the air within and around the rack cabinet should not exceed 85%. -
Page 9: Vesa Arm Or Yoke Mounting
The 30xx-VM monitors are designed for mounting to an articulated arm that provides a mounting flange with a VESA standard hole pattern. Please refer to mounting instructions supplied with the VESA arm to be used. Copyright © 2002 by EDL Displays, Inc. -
Page 10: Making Video Input Connections
SERIAL FUSE 85-265 VAC 47-440HZ Figure 1 -- Rear view of 3018/19 showing connectors MAKING POWER AND GROUND CONNECTIONS AC Power A monitor equipped for operation on AC power should be connected to a single-phase power source providing 115 to 230VAC nominal (85 to 264VAC) at 47 to 66Hz, or 400Hz. -
Page 11: Dc Power
DC Power A monitor equipped for operation from a DC power source should be connected to the DC main using UL approved #10 stranded wire. The wire should use properly color-coded insulation. Copyright © 2002 by EDL Displays, Inc. -
Page 12: Operation
(OSD), and a luminance control. The 3018 and 3019 monitors have an LED to indicate power on; other models do not. Otherwise, the layout of the controls is similar for all 3000 series monitors. A drawing of the 3018-RM is used here to illustrate the layout. POWER... -
Page 13: Etting Up The Ideo Ource
A general rule for determining the video memory requirements (in megabytes) for a given resolution and color depth is given here: Frame buffer memory (MB) = horz_resolution * vert_resolution * bpp / 8388608 Copyright © 2002 by EDL Displays, Inc. - Page 14 EDL Displays 3000 Series LCD Monitors The following table provides a good guideline for estimating the capabilities of a given video source or for determining the memory requirements for a new source. Video RAM Requirements for Various Display Resolutions and Color Depths*...
-
Page 15: Using The On-Screen Display (Osd) To Adjust The Monitor
Source button to return to the Picture submenu. NOTE: For best results, allow the monitor to warm up for 20 minutes before making final adjustments. Adjustments should be made in the order given in the text. Copyright © 2002 -11- by EDL Displays, Inc. -
Page 16: Navigating The On-Screen Menu System In Detail
EDL Displays 3000 Series LCD Monitors NAVIGATING THE ON-SCREEN MENU SYSTEM IN DETAIL The EDL 3000 series monitors’ integrated On-Screen Display (OSD) is used to control various display and system parameters. The OSD provides a system of setup menus that are accessed with the controls shown below. -
Page 17: Picture Submenu
However, if the monitor controller is scaling the image, the sharpness can be set to obtain the best possible image. This setting should be made while observing a display of text. Copyright © 2002 -13- by EDL Displays, Inc. -
Page 18: Osd Submenu
EDL Displays 3000 Series LCD Monitors Use the UP or DOWN button to select the desired function. Use the LEFT or RIGHT button to set the value of the selected function. Use the SOURCE button once a setting has been made, and again to return to the Main Menu. -
Page 19: Utility Submenu
When the SOURCE button is pressed, the monitor will likewise wake up, scan its inputs and present a message about what it found before returning to sleep. Copyright © 2002 -15- by EDL Displays, Inc. -
Page 20: Quick Menu
EDL Displays 3000 Series LCD Monitors Quick Menu If any of the direction buttons are pressed while no OSD is active, the Quick Menu will be activated. The Quick Menu consists of 4 functions: Navigation RIGHT LEFT Buttons Menu Item... -
Page 21: Maintenance And Service
Ensure that the luminance control is not turned all the way down. Check for activation of screen saver software at the video source. Activate the monitor’s OSD using either the AUTO button or the SOURCE button to verify that the Copyright © 2002 -17- by EDL Displays, Inc. -
Page 22: Line Fuse Replacement
FUSE 85-265 VAC 47-440HZ Figure 4 -- 3018/19 I/O panel showing fuse location The line fuse is accessible from the rear of the unit. Please refer to the figure above for location. Always disconnect the power cable before attempting to inspect or replace the line fuse. -
Page 23: Backlight Replacement
If you need in-warranty or out-of-warranty service or repair, including backlight replacement, please contact your distributor or EDL directly: EDL Displays, Inc. 1300 Research Park Drive Dayton, OH 45432 Telephone 937-429-6985 FAX 937-429-6985 Copyright © 2002 -19- by EDL Displays, Inc. -
Page 24: Appendix A: Video Input Connector Pin Assignments
EDL Displays 3000 Series LCD Monitors APPENDIX A: VIDEO INPUT CONNECTOR PIN ASSIGNMENTS HD15 VIEW LOOKING INTO THE PIN END OF MALE CONNECTOR SOLDER TERM END OF FEMALE CONNECTOR Signal Red Video Green Video Blue Video Reserved Red Return Green Return... -
Page 25: Appendix B: Video Cable Options
Horizontal Sync (5 BNC setup) BNC V Vertical Sync (BNC RGB (BNC RGB (BNC RGB Analog RGB Ground 6,7,8 shells) shells) shells) BNC H/C (BNC H/C Sync Ground shell and V shells) Copyright © 2002 -21- by EDL Displays, Inc. -
Page 26: Appendix C: Touchscreen Serial Interface
EDL Displays 3000 Series LCD Monitors APPENDIX C: TOUCHSCREEN SERIAL INTERFACE When an EDL 3000 series monitor is equipped with a high resolution resistive or capacitive touchscreen, a touch controller is integrated into the monitor enclosure. The touch controller provides an RS-232C serial interface to a remote computer at a DE-9 female connector. -
Page 27: Appendix D: X-Terminal Option
APPENDIX D: X-TERMINAL OPTION A 3018 or 3019 monitor equipped with an integrated X-terminal is shipped with a keyboard, mouse, video jumper cable, a 10Base2 to 10/100BaseT Ethernet adapter, and a separate X- terminal manual (in addition to other options that might have been specified by the customer.) -
Page 28: Recommendations For Setup Of The X-Terminal
EDL Displays 3000 Series LCD Monitors • Connect the mouse and keyboard cable to the X-terminal’s mouse/keyboard input connector (J13). • Connect the X-terminal to the local Ethernet drop, using the 10Base2 to 10/100BaseT adapter as required, at J6. • Connect power at J1. -
Page 29: Appendix E: Ir Remote Control Option
The sensor is capable of detecting signals sent by infra-red from the hand-held unit at distances of several feet. Figure 6 – Optional Hand-held control unit Copyright © 2002 -25- by EDL Displays, Inc. -
Page 30: Appendix F: Outline And Mounting Drawings
EDL Displays 3000 Series LCD Monitors APPENDIX F: OUTLINE AND MOUNTING DRAWINGS Figure 7 – Model 3018RM Outline Drawing (shown with X-terminal option) Copyright © 2002 -26- by EDL Displays, Inc. -
Page 31: Figure 8: 3018 Outline Drawing
User’s Manual Figure 8: 3018 Outline Drawing Copyright © 2002 -27- by EDL Displays, Inc. -
Page 32: Figure 9: 3019Rm Outline Drawing
EDL Displays 3000 Series LCD Monitors Figure 9: 3019RM Outline Drawing Copyright © 2002 -28- by EDL Displays, Inc. -
Page 33: Figure 10: 3019 Outline Drawing
User’s Manual Figure 10: 3019 Outline Drawing Copyright © 2002 -29- by EDL Displays, Inc. -
Page 34: Appendix G: Technical Specifications
EDL Displays 3000 Series LCD Monitors APPENDIX G: TECHNICAL SPECIFICATIONS MODEL 3018 Display Physical Environment Active area 359mm x 287mm Temperature 0° C to +50°C (operating) Native resolution 1280 x 1024 Temperature -20° C to +60°C (storage) Pixel pitch 0.28mm... -
Page 35: Model 3019
Emissions Per EN50081-1, FCC Safety Per UL/C 1950, Class B EN60950* * Note: The monitor does not comply with UL/C and EU requirements for maximum leakage current when operated at 400Hz AC. Copyright © 2002 -31- by EDL Displays, Inc.
