Summary of Contents for Aliteam 938HM-TX11

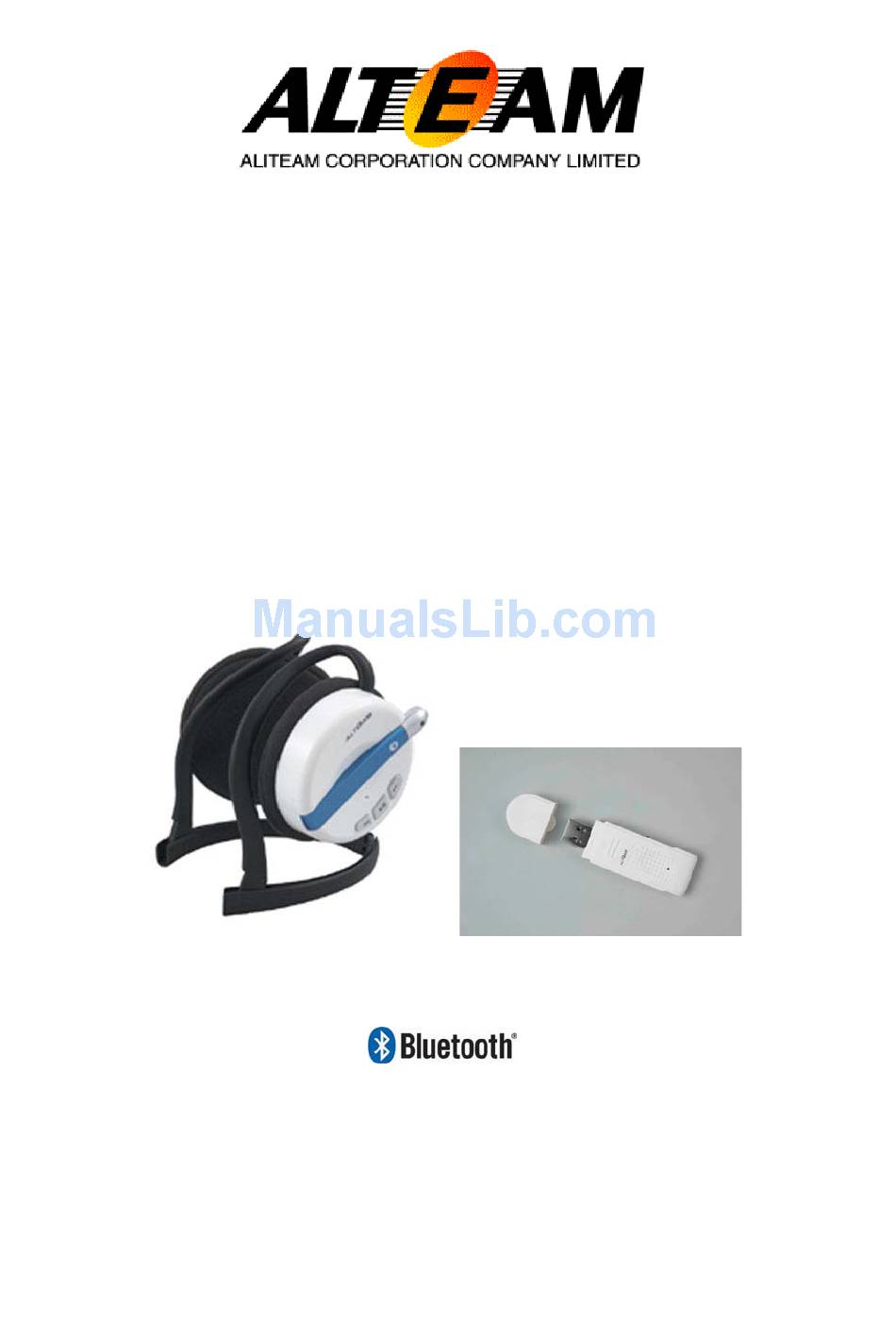

- Page 1 Aliteam Stereo Headset Kit (938HM-TX11) User Manual Version 1.4 Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
-
Page 2: Table Of Contents
FCC Statement................1 Bluetooth Introduction..............2 Package List.................. 3 Aliteam Stereo Headset Kit............3 Features ..................4 Bluetooth Headset ..................4 AV / SKYPE Dongle...................4 Function ..................5 Stereo Headset..................5 AV / SKYPE Dongle...................7 How to Use ..................8 Before You Use..................8 Responding to Cell Phone .................9... -
Page 3: Fcc Statement
End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 4: Bluetooth Introduction
‧ In-car handsfree kits ‧ GPS navigation receivers ‧ Home appliances (microwaves, washers, driers, refrigerators) In addition, add on Bluetooth adapters are available for computers (i.e. with a USB interface) and for PDAs. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 5: Package List
CD with Software BluePacket Stereo Headset Kit Thank you for choosing Aliteam Stereo Headset Kit. For the stereo headset, it is unique and different from most Bluetooth headsets in the market for its good integration of Advanced Audio Distribution Profile (A2DP), Headset (HS) Profiles and Handsfree (HF) profiles. -
Page 6: Features
Wireless mobility – It is very convenient without being restricted by cables. No “Line-of-sight” restriction - Unlike infrared devices, it offers you a wide transmission range (up to 10 meters). Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 7: Function
Easy Pairing – Use the “Bonding Function” to pair a Bluetooth headset. The pairing status is shown immediately. Supported profile - Supports Headset Gateway profile of the Bluetooth specification. Function Stereo Headset Button 2 Power (ON/OFF) Button 3 Button 1 Charging Port Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... - Page 8 1 time in 2 seconds Charging Always on. It will be turned off when charging completes. * Short Press: Less than 3 seconds. * Long Press: More than 3 seconds. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
-
Page 9: Av / Skype Dongle
3 minutes. Need to unplug for searching devices again.) Phone Mode (when you are using the headset and cell phone with the dongle at the same time) Skype Mode Always on Searching or link devices Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 10: How To Use
Please charge the headset when you see the low power signal. When you are charging the battery, the power LED indicator will constantly on. When the battery is full, the power light of the headset will shut off automatically. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 11: Responding To Cell Phone
Phones that do not support ring indication will automatically accept the call. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 12: Enjoying The Superior Music Quality
(1) Turn on the headset. Meanwhile, you can hear the opening sound from the headset. (2) The headset can be automatically paired with the dongle. (3) When the pairing is done, the status LED indicator on the headset will start flashing slowly. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 13: Switching Between Music And Phone Calls
(3) When the connection is set up, the music will pause and you can switch to the cell phone mode automatically. You can start to make an outgoing call and are Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 14: Call Transfer
And you can hear the ring tone in the headset. Then you can answer call by short press button one. The music will stop and you can start your conversation. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 15: Before You Use
Note: If you are using Windows XP, please install SP2. AV Mode Please see the section “Enjoying the Superior Music Quality” and “Switching Between Music and Phone Calls” to experience the high music quality. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 16: Skype Mode
Step 1: If you have installed the SKYPE software, please exit it first. If you never install SKYPE software, please download it from SKYPE website http://www.skype.com and install it after you complete Aliteam SKYPE Dongle Software Installation. Step 2: Insert the Installation CD Step 3: Run the setup.exe... - Page 17 Step 4: Click “Next” Button Step 5: Start to install Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 18 Step 6: Click “Finish” button to complete the installation Step 7: this message might be shown up because of the firewall. Please click “Unblock” button. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 19 Step 9: The BluePacket logo and SKYPE icon will be shown in the tool bar. Step 10: Then Check the presence of “Start -> Programs -> BluePacket -> Launch SkypeDongle.exe” Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
-
Page 20: Skype Software Setup
SKYPE Software Setup STEP 1: Run SKYPE STEP 2: Select “Tools” -> “Options…” Figure 4.1 STEP 3: Verify the audio is setup for Windows default value. (Figure 4.2) Figure 4.2 Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 21: Hardware Installation
STEP 2: Verify that the Bluetooth headset is in pairing mode (Please refer to the headset manual about its operation sequence.) STEP 3: Trigger Bonding. Move cursor over the Aliteam logo icon then right click the mouse button and select Bonding item. - Page 22 STEP 6: If Bonding succeeds, click OK button and start using Bluetooth headset with SKYPE. If not, please make sure headset’s battery is fully charged and put it into pairing mode before triggering Bonding again. STEP 7: Installation is done. Congratulations! Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
-
Page 23: Responding Skype Calls
There are 2 ways to hang up the phone call. 1. Press the Bluetooth headset multi-function button (please refer to Bluetooth headset user manual) or 2. Click the “hang up” button in the SKYPE user interface. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 24: Faq
(2) Check if the headset is powered on and the Status LED indicator is flash quickly. (3) Verify that the headset is within the specified range of 10 meters from the audio source. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... - Page 25 2.Q: How to launch the application? A: Start->Programs->BluePacket->SkypeDongle->Launch SkypeDongle.exe 3.Q: How to exit the application? A: Right click the BluePacket logo icon and select the “Exit” item Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 26 A: There are 2 ways to hang up the phone call. (1) Push the Bluetooth headset multi-function button (please refer to Bluetooth headset user manual) or (2) Click the “hang up” button in the SKYPE user interface. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 27 7. Q: How to verify a user is using SKYPE dongle for SKYPE now? (1) Click “Start ->Setting-> Control Panel and double click “Sounds and Audio Devices” (2) Check if “BluePacket SKYPE Dongle” is detected (3) Correct “Audio” setting (4) Correct “Voice” setting Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 28 8.Q: How to force SKYPE application using SKYPE Dongle? (1) Select Tools->Options in SKYPE menu. (2) Select “BluePacket SKYPE Dongle” for ‘Audio In” and “Audio Out”. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 29 10.Q: How can I tell the SKYPE dongle is ready after bonding has been done? There are 2 ways to do it: BluePacket has the self test function to verify it. (1) Right click the BluePacket Logo. (2) Select the “Self Test” item. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 30 (3) Click OK to start the selftest function. (4) It will pop up a Testing in progress windows. (5) A dialog box showing “Testing Finished” will pop up when testing is done. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 31 (1) Add new contact. (2) Type in “echo123”. (3) Click “Next” -> “Finished”. (4) Testing service will show up in SKYPE contact list. (5) Call the echo service and follow the operator instructions. Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
- Page 32 Dual mode dongle may probably malfunction when you "hot swap". If you want to make a switch, please pull out the dual mode dongle and plug it in the USB port Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved...
-
Page 33: Specification - Bluetooth Stereo Headset
Note: The maximum operating range depends on the paired phone model, battery power, and environmental factors. Power Consumption Music Streaming: 75 mA (Typical), Power Supply 500mA Lithium Ion Battery ℃ ℃ Operating Temperature ~ +55 Aliteam Corp. Co., Ltd. Copyright © 2005. All rights reserved... -
Page 34: Specification - Bluetooth Av / Skype Dongle
Specification – Bluetooth AV / SKYPE Dongle Product Name Aliteam Bluetooth SKYPE Dongle Standard Bluetooth 1.2 compliant Power Class Class 2 Interface USB 1.1 or 2.0 Bluetooth Profile AV Mode A2DP Profile SKYPE Mode Headset Gateway Profile Output Power -6dBm to 4 dBm... -
Page 35: Technical Support
Technical Support If you have further questions, please contact our Technical Support Department. Thank you! Appendix A– Supported Cell Phone List Supported Cell Phones by Aliteam Stereo Headset Brand Nokia Moto Sony Ericsson Siemens Panasonic Model 3650 V600 T610* 3660... -
Page 36: Appendix B - Supported Headset List (Skype Mode)
Clip S35 / BlueBand (Stereo HS) ** Aliteam Quality Assurance team completed the Skype test cases for those headsets. According to the result, Skype Dongle can support most of Bluetooth Standard 1.2 headsets. The compatibility test includes but not limit to the list. It is subjected to update while more headsets are available for testing.
