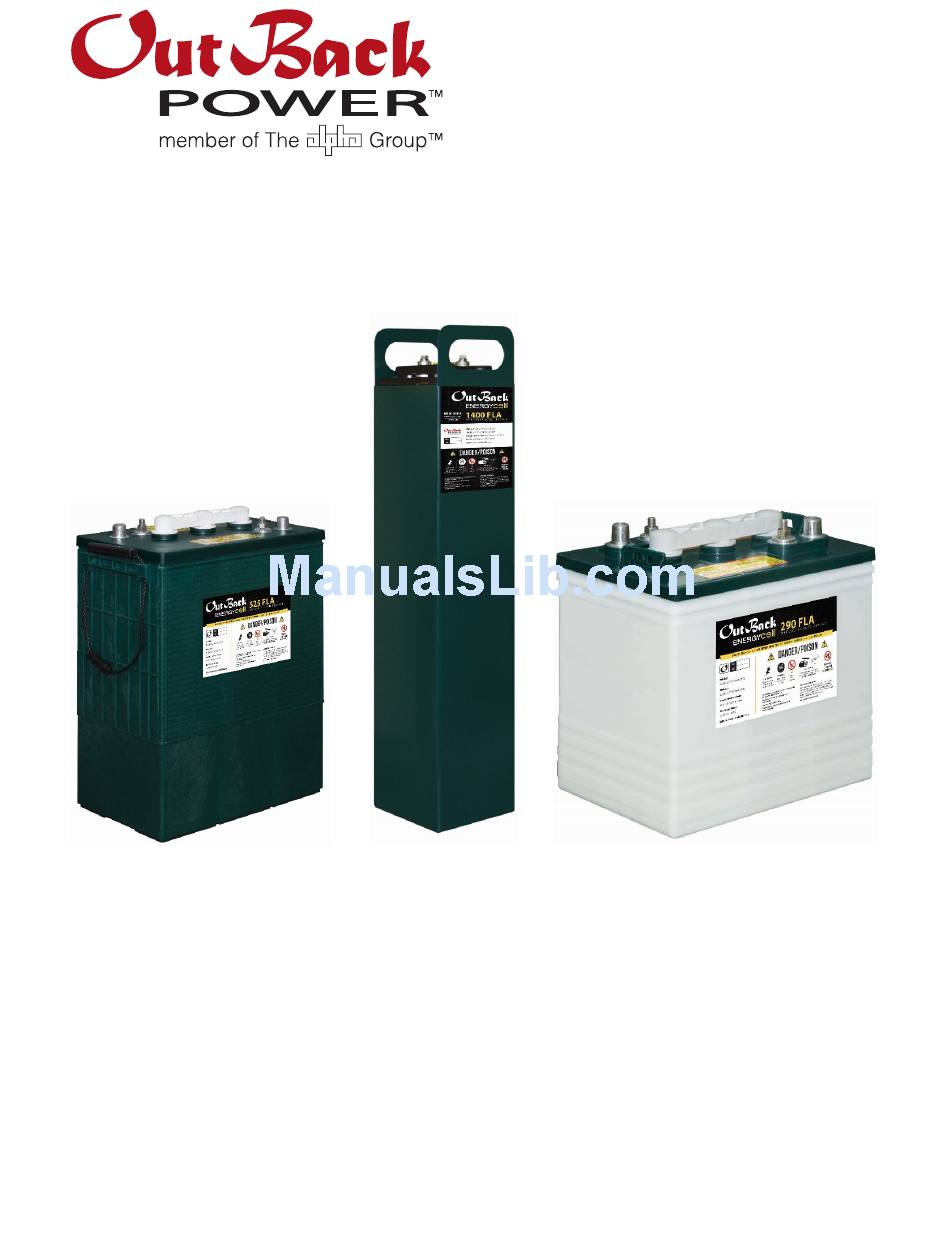

- Page 1 EnergyCell FLA Series Owner’s Manual...
- Page 2 Information included in this manual is subject to change without notice. Notice of Copyright EnergyCel FLA Series Battery Owner’s Manual © 2017 by OutBack Power Technologies. All Rights Reserved. Trademarks OutBack Power and the OutBack Power logo are trademarks owned and used by OutBack Power Technologies, Inc.
- Page 3 Review all documentation to become familiar with all of the features and functions of the EnergyCell FLA series before proceeding. Failure to install and/or use this equipment as instructed can result in damage to the equipment. This product is only serviceable by qualified personnel.
- Page 4 EnergyCell FLA Table 1 Specifications EnergyCell EnergyCell EnergyCell Model: 290FLA 525FLA 1400FLA Cells Per Unit Voltage Per Unit Operating Temperature –40° to 120° F –40° to 120° F –40° to 120° F Range (–4° to 49° C) (–4° to 49° C) (–4°...
-
Page 5: Preventative Maintenance
EnergyCell FLA Handling Preventative Maintenance Battery covers and terminals should be kept clean, dry and free of corrosion. Battery vent caps must be secured to the batteries during use and charging period. Remove vent caps only to inspect electrolyte levels or specific gravities. - Page 6 EnergyCell FLA Battery Strings Certain systems require the installation and connection of multiple batteries to accommodate minimum voltage or capacity specifications. Connect these batteries in series, parallel, or other string combinations as appropriate. Technicians should always confirm that batteries are oriented in proper position according to battery terminal polarity —...
-
Page 7: Inspection And Test
EnergyCell FLA Renewable Energy (RE) Charging Systems To maximize performance and life, batteries should be recharged fully after each discharge period. To verify full recharging, regularly monitor individual battery voltage and specific gravity. As a general rule, the total input amperes from the RE charging source should be between 10% and 20% of the total ampere-hours (24-hour rating) of the battery system. - Page 8 EnergyCell FLA Specific Gravity Inspection Hydrometer reading of all cells should be at least 1.225 and show less than 50 points difference between high and low. More than 50 points difference: replace the battery. Less than 50 points, but some cells read less than 1.225: recharge the battery. Replace the vent caps during recharge.
- Page 9 EnergyCell FLA If the test voltage is above the minimum, return the battery to service. If the test voltage is below the minimum, replace the battery. Batteries with less than 75% state of charge should be charged before an electrical load test is applied to the battery.
- Page 10 EnergyCell FLA This page intentionally left blank. 900-0221-01-00 Rev A...
- Page 11 EnergyCell FLA NOTES: 900-0221-01-00 Rev A...
