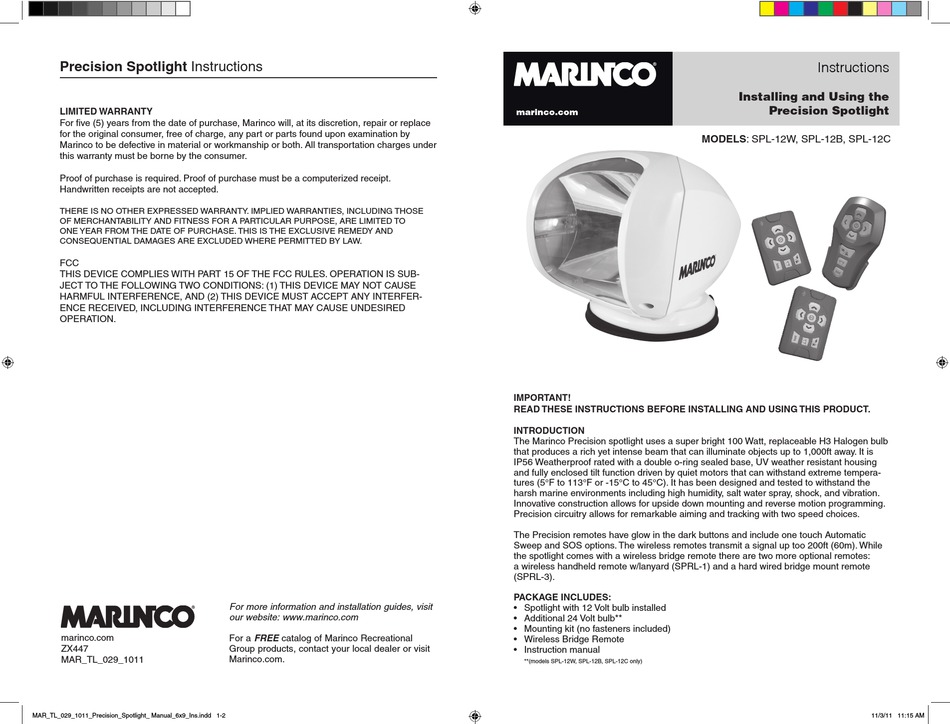

marinco SPL-12W Installing And Using

Precision Spotlight Instructions
LIMITED WARRANTY
For five (5) years from the date of purchase, Marinco will, at its discretion, repair or replace
for the original consumer, free of charge, any part or parts found upon examination by
Marinco to be defective in material or workmanship or both. All transportation charges under
this warranty must be borne by the consumer.
Proof of purchase is required. Proof of purchase must be a computerized receipt.
Handwritten receipts are not accepted.
THERE IS NO OTHER EXPRESSED WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
ONE YEAR FROM THE DATE OF PURCHASE. THIS IS THE EXCLUSIVE REMEDY AND
CONSEQUENTIAL DAMAGES ARE EXCLUDED WHERE PERMITTED BY LAW.
FCC
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUB-
jECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFER-
ENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
marinco.com
ZX447
MAR_TL_029_1011
MAR_TL_029_1011_Precision_Spotlight_ Manual_6x9_Ins.indd 1-2
For more information and installation guides, visit
our website: www.marinco.com
For a FREE catalog of Marinco Recreational
Group products, contact your local dealer or visit
Marinco.com.
Precision Spotlight Instructions
marinco.com
IMPORTANT!
READ THESE INSTRUCTIONS BEFORE INSTALLING AND USING THIS PRODUCT.
INTRODUCTION

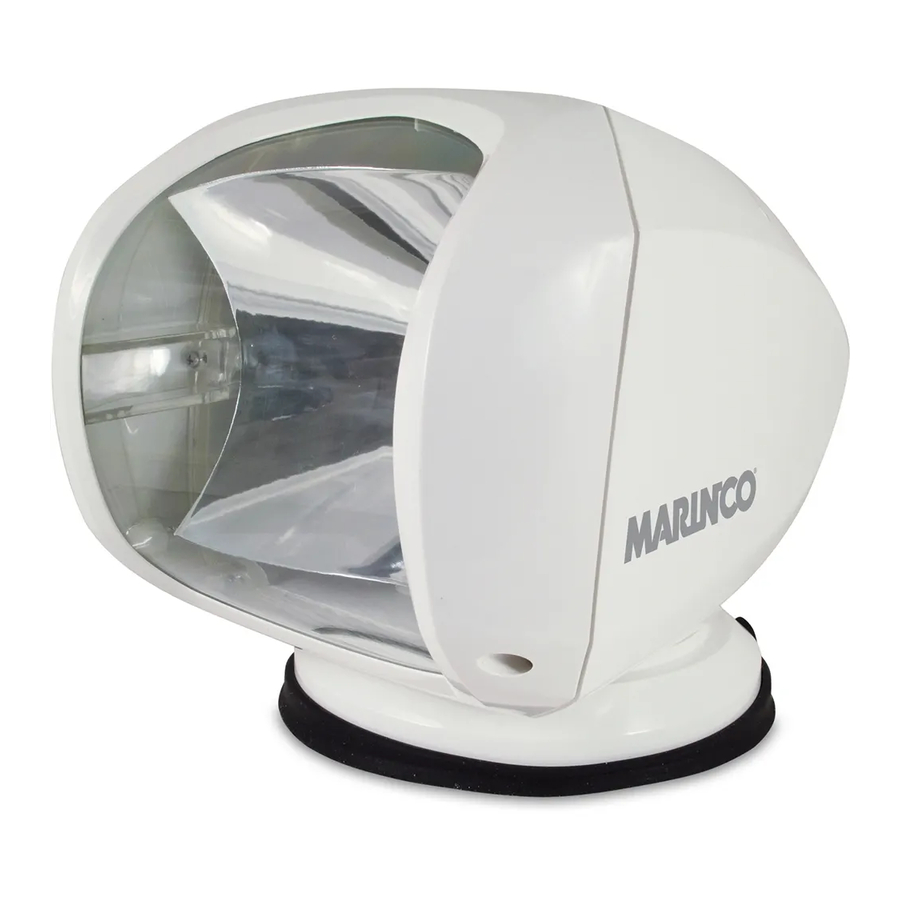

The Marinco Precision spotlight uses a super bright 100 Watt, replaceable H3 Halogen bulb
that produces a rich yet intense beam that can illuminate objects up to 1,000ft away. It is
IP56 Weatherproof rated with a double o-ring sealed base, UV weather resistant housing
and fully enclosed tilt function driven by quiet motors that can withstand extreme tempera-
tures (5°F to 113°F or -15°C to 45°C). It has been designed and tested to withstand the
harsh marine environments including high humidity, salt water spray, shock, and vibration.
Innovative construction allows for upside down mounting and reverse motion programming.
Precision circuitry allows for remarkable aiming and tracking with two speed choices.
The Precision remotes have glow in the dark buttons and include one touch Automatic
Sweep and SOS options. The wireless remotes transmit a signal up too 200ft (60m). While
the spotlight comes with a wireless bridge remote there are two more optional remotes:
a wireless handheld remote w/lanyard (SPRL-1) and a hard wired bridge mount remote
(SPRL-3).
PACKAGE INCLUDES:
• Spotlight with 12 Volt bulb installed
• Additional 24 Volt bulb**
• Mounting kit (no fasteners included)
• Wireless Bridge Remote
• Instruction manual
**(models SPL-12W, SPL-12B, SPL-12C only)
502-2 & 503-2 instructions Instructions
Installing and Using the
Precision Spotlight
MODELS: SPL-12W, SPL-12B, SPL-12C
