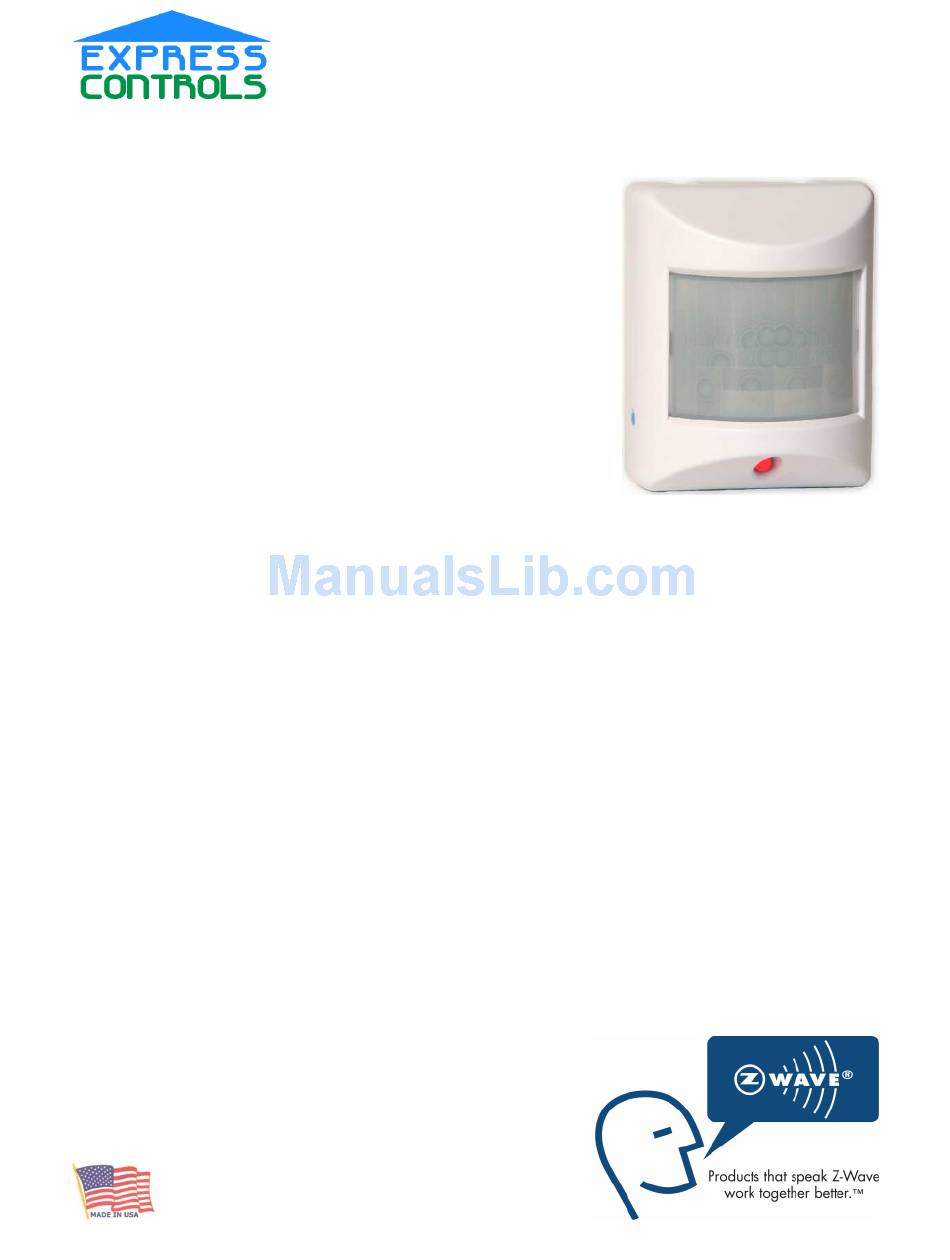

EZMotion
Wireless 3-in-1 Sensor:
Motion Sensor
Light Sensor
Temperature Sensor
Features
®
Z-Wave
Wireless RF Communication
Advanced Mesh Network Protocol
Up to 4 Associated ZWave Nodes
150 ft Range
40,000 bits/sec
Adjustable WakeUp Notification
Motion Sensor
Passive Infrared Sensor (PIR)
30 ft Range
90° Coverage
Adjustable Sensitivity
Programmable Timeout
LED Motion Indicator
Light Sensor
Detects the amount of light in the room
Lights stay off if there is sufficient natural light
Temperature Sensor
20° - 150°F Range
0.2°F Resolution
Two piece wall-mount enclosure or can be placed on any flat surface
Battery Powered (3 AAA)
1 Year Battery Life
Made in USA
October 2008
The Quick and Easy Way to Control Your Home
EZMotion
Wireless 3-in-1 Sensor
Motion – Light - Temperature
www.ExpressControls.com
™
1
Advertisement
Table of Contents
Summary of Contents for Express Controls EZMotion
- Page 1 ™ EZMotion Wireless 3-in-1 Sensor Motion – Light - Temperature www.ExpressControls.com ™ EZMotion Wireless 3-in-1 Sensor: Motion Sensor Light Sensor Temperature Sensor Features ® Z-Wave Wireless RF Communication Advanced Mesh Network Protocol Up to 4 Associated ZWave Nodes 150 ft Range...
- Page 2 In addition to the motion sensor, EZMotion also senses the amount of light in the room as well as the current temperature. The light sensor of EZMotion can be programmed to leave the lights off if there is already sufficient natural light in the room.
-
Page 3: Quick Start
EZMotion to detect unless it is placed close to the person. The sensitivity of EZMotion can be set to high or the time delay when lights are turned off can be made fairly large (1 hour or more) to compensate for situations where people are sitting still. -
Page 4: Battery Installation
EZMotion remains in this mode for 10 minutes during which time the desired motion sensitivity can be set as well as other configuration settings. Once the 10 minutes has gone by, EZMotion will enter a low-power state and only wake-up when there is motion or when the Wake-Up timer expires. Pressing the blue reset button will restart the 10 minute full-power mode if additional time is needed to configure EZMotion. -
Page 5: Battery Status
Light Report EZMotion can report the amount of light currently in the room. The value is from 0 to 100% and is relative to the maximum and minimum amount of light EZMotion has measured since the blue reset button was last pressed. -
Page 6: Led Configuration
Light Threshold EZMotion can use its light sensor to decide to leave the lights off in a room with plenty of natural light. The Light Threshold value can be set from 1 to 100%. The default is 100% which turns off this feature. - Page 7 Light Threshold is often used in room with a lot of natural daylight. Setting Light Threshold to a value of 50% will cause EZMotion to not turn the lights on when the natural light in the room is already at the 50% value.
- Page 8 6) Press and release the reset button on EZMotion 7) The ZTH100 will display the NodeID – write the number down. EZMotion is now part of the Z- Wave network and can be configured to control other Z-Wave devices such as light switches and dimmers.
-
Page 9: Troubleshooting
Mount the EZMotion upside-down so the lens looks upward instead of downward. want them to Note that you may need to mount EZMotion 3 to 6 feet from the floor in this case. The LED illuminates when there is motion during the initial 10 minute period after The LED doesn’t... -
Page 10: Regulatory Information
LIMITED 2 YEAR WARRANTY If within two (2) years from the date of purchase, this product fails due to a defect in material or workmanship, Express Controls will repair or replace it, as its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. -
Page 11: Technical Specification
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with proof of purchase, postage prepaid to the authorized service center listed below. This warranty is made by: Express Controls – www.ExpressControls.com. Please, be sure to package the product securely to avoid shipping damages. Technical Specification...
