Summary of Contents for Adaptiv AUDI A3 MIB PLATFORM

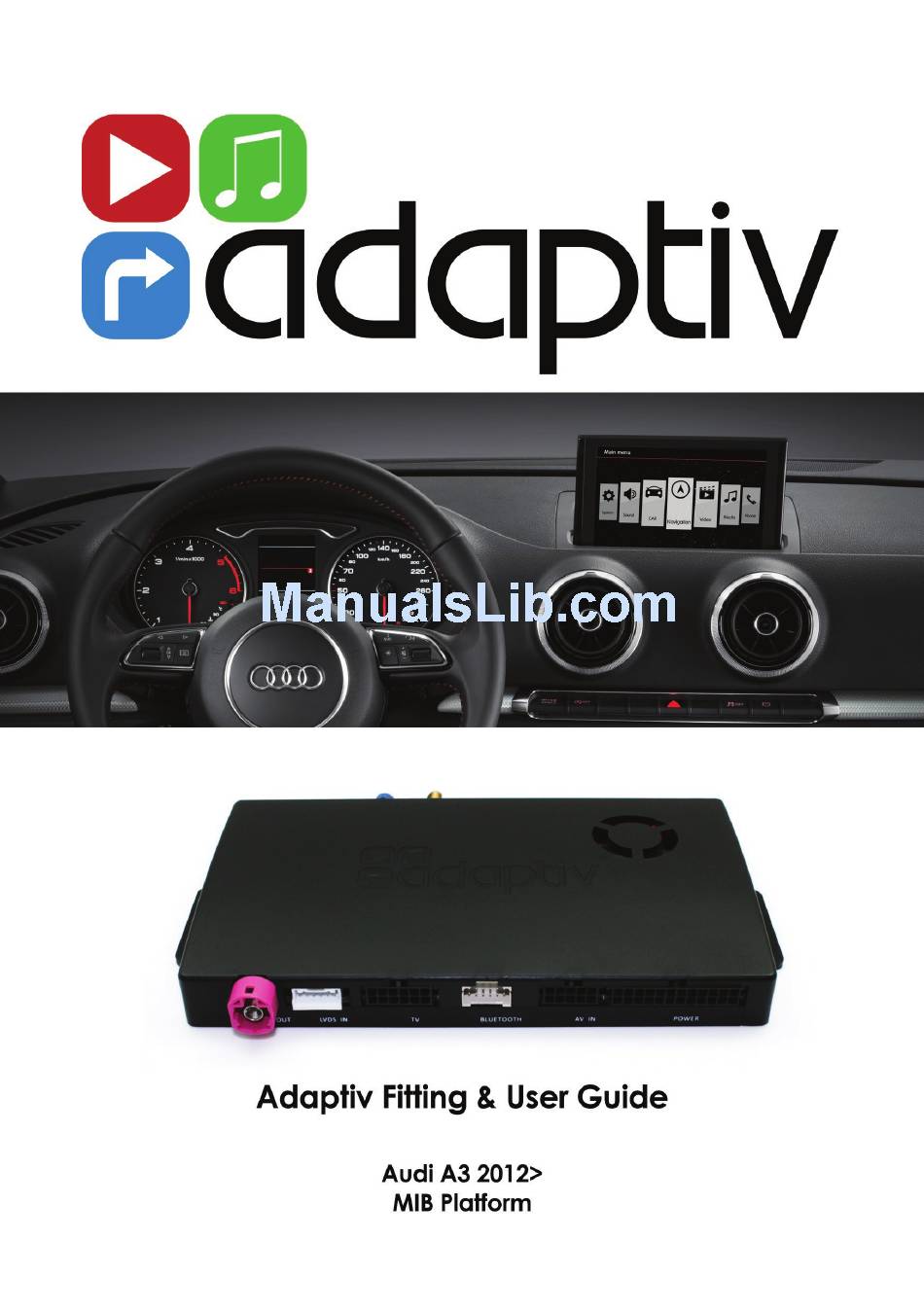

- Page 1 WWW.ADAPTIV-MULTIMEDIA.COM...
-
Page 2: Table Of Contents
CONTENTS Contents About Connection Diagram Quick Start Guide System Sound Settings Navigation 12-13 Video - HDMI Video - DVBT 15-16 Video - AV In Media - USB/SD 18-22 File Transfer 23-24 Info/Update Technical Specifications AUDI A3 MIB PLATFORM... -
Page 3: About
ABOUT Adaptiv Adaptiv is a new brand from Connects2, which allows extensive multimedia and navigation upgrades to the OEM screen. The plug and play, all in one interface adds Navigation, USB/SD, AV In and an in- put for an aftermarket reverse camera. Optional modules allow the ability to add DAB Digital Radio (ADV-DAB), HDMI (ADV-HDMI) and DVBT TV (ADV-DVBT). -
Page 4: Connection Diagram
CONNECTION DIAGRAM CONNECTION DIAGRAM - ADAPTIV AUDI A3 MIB PLATFORM Audi Multimedia AUDI A3 MIB PLATFORM... - Page 5 2. Disconnect Pink LVDS connector (B) from the rear of the OEM head unit. 3. Connect this Pink LVDS to the Pink “LVDS OUT” on the Adaptiv interface. 4. Connect the LVDS cable supplied (C) into the Pink LVDS IN on the OEM head unit, connect the other end of this cable to “LVDS IN”...
-
Page 6: Quick Start Guide
1. Before using your Adaptiv product, please ensure that the Aux in option is selected on your OEM head unit. This allows the Adaptiv product to use the Aux In source for its wide range of multimedia inputs. 2. In order to activate your Adaptiv product, press and hold the MENU button on your OEM rotary commander in the centre armrest console. - Page 7 5. Scroll up and select Media In and ensure Adaptiv is selected from the drop down menu. 6. In order to exit Adaptiv and return to the OEM head unit menu, use the rotary commander to select the ‘CAR’ icon on the Adaptiv homescreen.
-
Page 8: System
Media In This allows the user to switch between Adaptiv and Car as an audio source. When using Adaptiv, ensure that Adaptiv is selected from the drop down list. Should you wish to use an OEM audio source, select Car. - Page 9 SYSTEM Language Allows the user to change language of the Adaptiv interface. The interface is set by default to English. Video Input Change the Brightness/Contrast of the picture for AV Map Data Update This allows access to update the Navigation SD card software.
-
Page 10: Sound Settings
If the level slider controller is in the 0 position the volume that is set by the master volume control. Move the volume controller up or down to increase or decrease the volume gain level. AUDI A3 MIB PLATFORM... -
Page 11: Navigation
Before Use To use the Navigation there must be an SD-Card inserted into the Navi slot of the Adaptiv interface. The GPS antenna must also be connected and located in a suitable location. Navigation uses iGO Primo software. Please see the iGO Primo user manual for full details on operating the navigation feature. -
Page 12: Dab
Before Use Please ensure the optional ADV-DAB module is connected to the Adaptiv interface and that the DAB antenna is connected. Note that the dipswitch on the ADV-DAB module should be in the On position. This outputs 5V power to the DAB antenna. - Page 13 (1-10) on the station presets display. Press and hold the rotary commander to save the preset. The station name will then be shown within the preset icon. It is possible to store 10 presets. Station Presets display Station List display Radio station info display WWW.ADAPTIV-MULTIMEDIA.COM...
-
Page 14: Video - Hdmi
HDMI socket which allows connection of Apple/Android devices with HDMI out (Device specific adapters not included). Selecting HDMI Scroll to Video on the Adaptiv homescreen and select with the rotary commander. Select the HDMI icon Playback The HDMI source allows high resolution multimedia playback from a variety of Apple/Android devices. -
Page 15: Video - Dvbt
Please ensure the optional ADV-DVBT module is connected to the Adaptiv interface and the DVBT antennas are connected. Selecting TV Scroll to Video on the Adaptiv homescreen and select the TV icon with the rotary commander. Scanning When TV is first selected, you must scan in order to find available TV stations. - Page 16 VIDEO - DVBT TV Exit TV Press the back arrow on the rotary commander. AUDI A3 MIB PLATFORM...
-
Page 17: Video - Av In
(Aux L, Aux R and Video). Control is from the connected device. Selecting AV In Scroll to Video on the Adaptiv homescreen. Select the AV In icon on the Adaptiv homescreen. Exit AV In Press the back button on the rotary commander. -
Page 18: Media - Usb/Sd
- MP4 - MKV - OGM Selecting USB/SD Ensure that a USB or SD card is inserted into the Adaptiv interface Multimedia or HDMI socket. Scroll to Media on the Adaptiv homescreen. Select the USB icon or the SD icon as required. - Page 19 MEDIA - USB/SD Key to Icons Previous track Next track Play / Pause Select once to repeat the song Repeat Select twice to repeat/loop. Shuffle Select this to shuffle and play tracks at random. Play list WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 20 Open image files on USB/SD media Open all files on the USB/SD media (Folder Structure) Movie playback Key to Icons - Movie playback Previous track Next track Play / Pause Stop Fast forward Back to previous menu AUDI A3 MIB PLATFORM...
- Page 21 Images - Menu Images which are saved on the SD-Card or USB device can be displayed on the Adaptiv unit startup screen. Any supported image format can be used. To do this, select the icon in the bottom left corner, as shown in the picture above.
- Page 22 To delete the startup image, select the memory button as shown above. A red symbol appears to confirm the image was deleted as the start screen. Folder Structure Menu Select a folder. If the folder has a sub-folder this can also be selected from this page. AUDI A3 MIB PLATFORM...
-
Page 23: File Transfer
SD Card. Selecting File Transfer Scroll to System on the Adaptiv homescreen. Select the File icon Files can be copied to/from an SD card which is inserted in the ‘Media SD’ slot and also a USB memory stick inserted into ‘Multimedia’... - Page 24 FILE TRANSFER Key to Icons Copy File Paste File Choose all files Delete selected file Back to previous menu AUDI A3 MIB PLATFORM...
-
Page 25: Info/Update
Connects2 for support. Should your unit require a software update, please ensure the USB key with the update file is inserted into the Adaptiv interface ‘Multimedia’ USB slot, or alternatively the USB input on the HDMI module can be used. -
Page 26: Technical Specifications
400 x 240 / 800 x 480 Inputs Video Input 1 x RCA (AV) 1 x Rear Camera (V) 1 x HDMI (Optional ADV-HDMI) 1 x DAB (ADV-DAB) 1 x TV (ADV-DVBT) 1 x Multimedia 1 x Navigation 1 x Multimedia AUDI A3 MIB PLATFORM... - Page 27 WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 28 AUDI A3 MIB PLATFORM...
