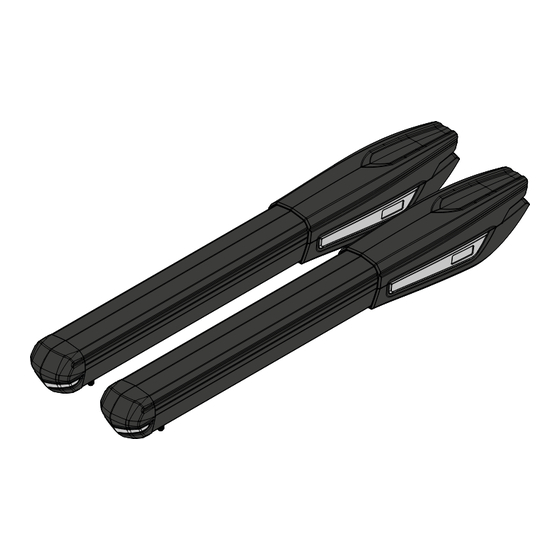

Summary of Contents for Motorline PERSA 400

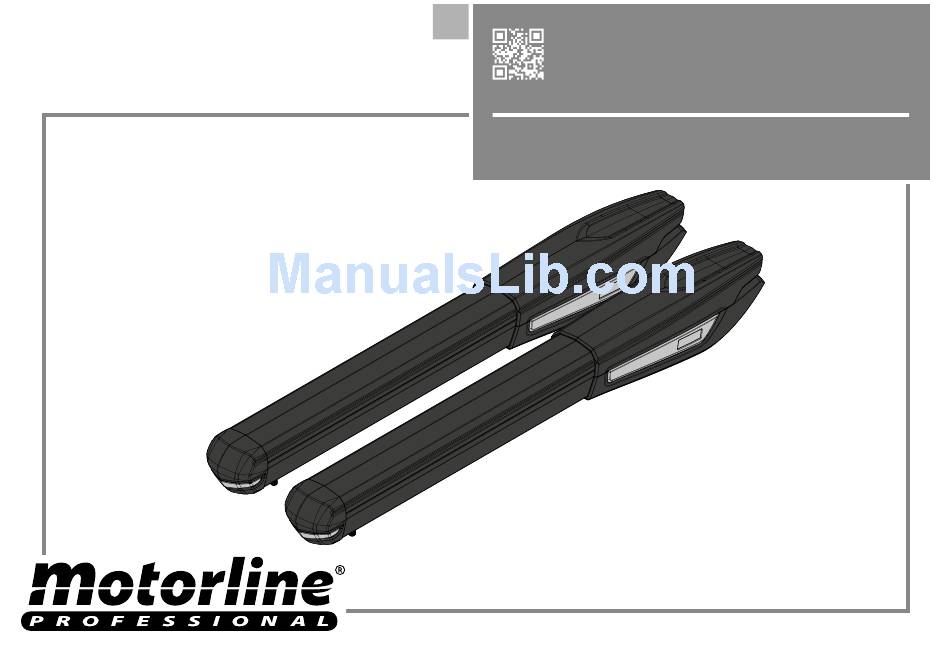

- Page 1 PERSA 400 USER’S AND INSTALLER’S MANUAL V2.0 REV. 12/2016...
-
Page 2: Safety Instructions
VERTICAL INSTALLATION MEASURES when used with components that were not sold by the them. HORIZONTAL INSTALLATION DIMENSIONS • The ELECTROCELOS S.A. informs that, to guarantee greater compatibility and proper functioning, install only components MOTORLINE. INSTALLATION STEPS MICROS ADJUSTMENT Mechanism use: INSTALLATION MAP •... -
Page 3: Technical Specifications
02. PACKAGE 03. OPERATOR INSIDE PACKAGE TECHNICAL SPECIFICATIONS In the package you will find the following components: PERSA specifications are as follow: 01 • 02 Swing operators PERSA400 02 • 01 Central de controlo 03 • 02 Remote controls (4 channels) 04 •... -
Page 4: Installation
04. INSTALLATION TECHNICAL SPECIFICATIONS VERTICAL INSTALLATION DIMENSIONS PERSA 400 dimensions are the following: PERS 400 operator must be installed with a small inclination , to prevent water infiltration through the extension arm. For this, the front support must be fixed to the gate with a height lower than the height of the rear support. - Page 5 04. INSTALLATION 04. INSTALLATION HORIZONTAL INSTALLATION DIMENSIONS HORIZONTAL INSTALLATION DIMENSIONS On the Illustrated diagrams below and on the next page, are the horizontal dimensions for the installation of the automated system. INTERIOR OPENING EXTERIOR OPENING (EXTERIOR) Axis of rotation of the *Opening motor, on the front bracket Opening...
-
Page 6: Installation Steps
04. INSTALLATION 04. INSTALLATION INSTALLATION STEPS INSTALLATION STEPS Pay attention to the installation dimensions mentioned on pages 03B, 04A and 04B! 03 • Test the movement. • Install the pins removed earlier on each side with a small amount of lubricant for less friction. - Page 7 04. INSTALLATION 04. INSTALLATION MICROS ADJUSTMENT MICROS ADJUSTMENT 01 • Unlock the motor (see page 3A). 02 • Remove the chrome clip with a screwdriver. 06 • Take the gate to the open position. 03 • Unfasten the two front screws, remove the cover and the profile cover. 07 •...
-
Page 8: Installation Map
04. INSTALLATION INSTALLATION MAP CONTROL WARNING MOTOR BOARD LAMP ANTENNA SELECTOR EXTERIOR PHOTOCELLS JUNCTION BOX EXTERIOR INTERIOR PHOTOCELLS PHOTOCELLS GATE STOPPER LEGEND: • Connection cables It is important to use mechanical stoppers in the opening and closing position of the It is important to use junction boxes for connections between motors, components gate. -
Page 9: Connection Scheme
05. CONNECTION SCHEME 06. COMPONENTS TEST 110V/230V MOTOR MOTOR A 24V To detect which are the components with problems in a 24V PERSA automatism installation, it is necessary to conduct tests with a direct connection to a external power supply (bateria 24V). - Page 10 06. COMPONENTS TEST 110V /230V MOTOR To detect if the malfunction is on the control board or on the NOTES: All tests must be performed by qualified per- motor is, sometimes, necessary to perform tests with connection sonnel due to serious danger associated with •...
-
Page 11: Maintenance
07. MAINTENANCE MAINTENANCE • Lubricate pins • Place a small amount of lubricant on the holes that contains support pins. • Check motor supports • Make sure that supports remain well fixed on the pillars and gate to ensure proper functioning of the equipment. -
Page 12: Troubleshooting
A) SECURITY SYSTEMS: B) START SYSTEMS: All MOTORLINE control boards have LEDs that • Motor opens • Unlock motor and • Gate opened but 1 • Check if there is any easily allow to conclude which devices are but doesn’t...
