1

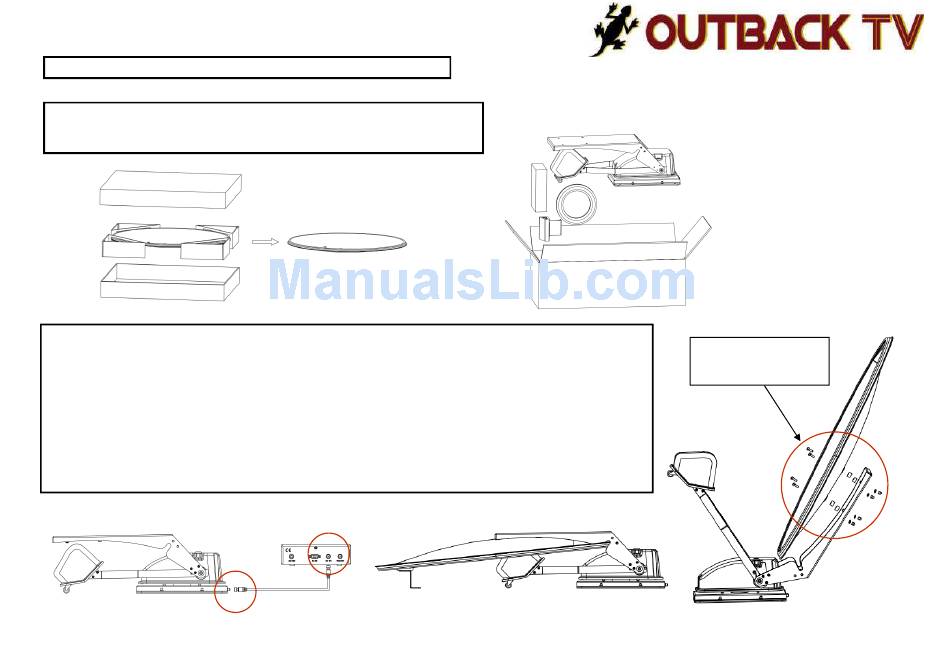

1. Before you begin, please read the following guide lines.
2. Open the Two Boxes
A.
Unpack the two boxes carefully.
B.
Take out all accessories and check everything is included.
3. Setting up the Antenna.
A.
If you have not installed an Outback TV before, it is suggested you setup the system before doing
the final install.
B.
Connect the ODU RF1(Out Door Unit) to the IDU RF1 (Indoor Unit) with 8m RG6 Antenna Cable.
C.
Connect the Power Cable Red and Black wires,
D.
Power up the antenna and then press DEPLOY.
E.
When the bracket is open at a slight angle backwards press PAUSE.
F.
Install the Dish using the Allen Key supplied. Making sure the longer bolts and spacers are used
on the top two connections.
G.
Press RUN and the antenna will now search and lock on. The northern sky needs to be clear.
Please make sure the base is either screwed down or supported to stop it tilting over.
Red +
Positive, Black - Negative, to 12/24vDC
RF1
RF1
Bolts and Spacers
Longer Bolts and Spacers
on Top two connections
Advertisement
Summary of Contents for Outback TV RV85A
- Page 1 Take out all accessories and check everything is included. 3. Setting up the Antenna. Bolts and Spacers If you have not installed an Outback TV before, it is suggested you setup the system before doing Longer Bolts and Spacers the final install.
- Page 2 Installation Once you are confident of the wiring and how the antenna works, it is now time to install The ODU Antenna needs to face “Backwards” when Location stowed. Carefully pick an area of the RV roof that is strong and will allow the Antenna to be mounted as flat and as level as possible.
- Page 3 Power Connections Please connect to either a 12v or 24VDC power source. The IDU will automatically switch between these two voltages. 5A Fuse A 5amp Fuse or Circuit Breaker is required on both the Red and Yellow Positive Not Supplied Cables.
-
Page 4: Cable Connection Diagram
1. Cable Connections Outback TV The RV85A Antenna comes standard with 1 x 8m RG6 and 1 RV85A Cable Connection x 1m RG6 Antenna Cables, suitable for a VAST FTA Receiver. Diagram An Optional IQ Kit, 2 x 8m RG6 Cables, is available for Pay TV Satellite Receivers. -
Page 5: Operation
1. Operation Turn on System Outback TV Turn On Power The antenna system will retract to shut down position and enter into Sleep Mode. The power consumption is very low. Deploy System OPTUS C1 / D3 Press DEPLOY will deploy system. Then antenna will lock onto target sat-... - Page 6 OCEAN TV OUTBACK TV Outback TV 100% Australian Owned RV85A and RV60A MR Marine Group Australia’s Specialist in Marine and RV Satellite TV Antennas WEBSITES RV Antennas www.OutbackTV.com.au Marine Antennas www.OceanTV.com.au EMAIL info@mrmarine.com.au PHONE Ocean TV O45HD and O60HD 0428 250 520...
