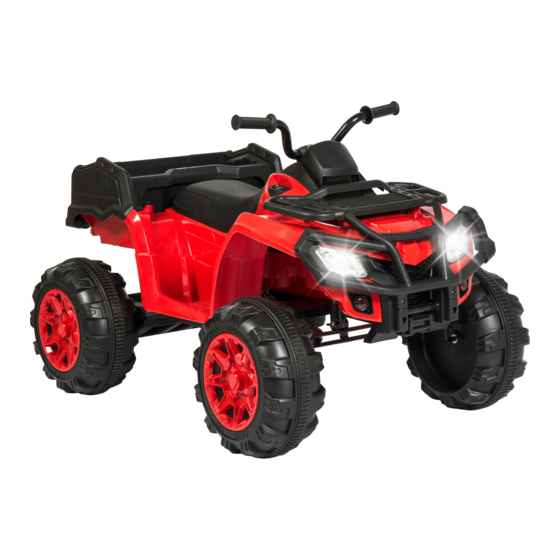

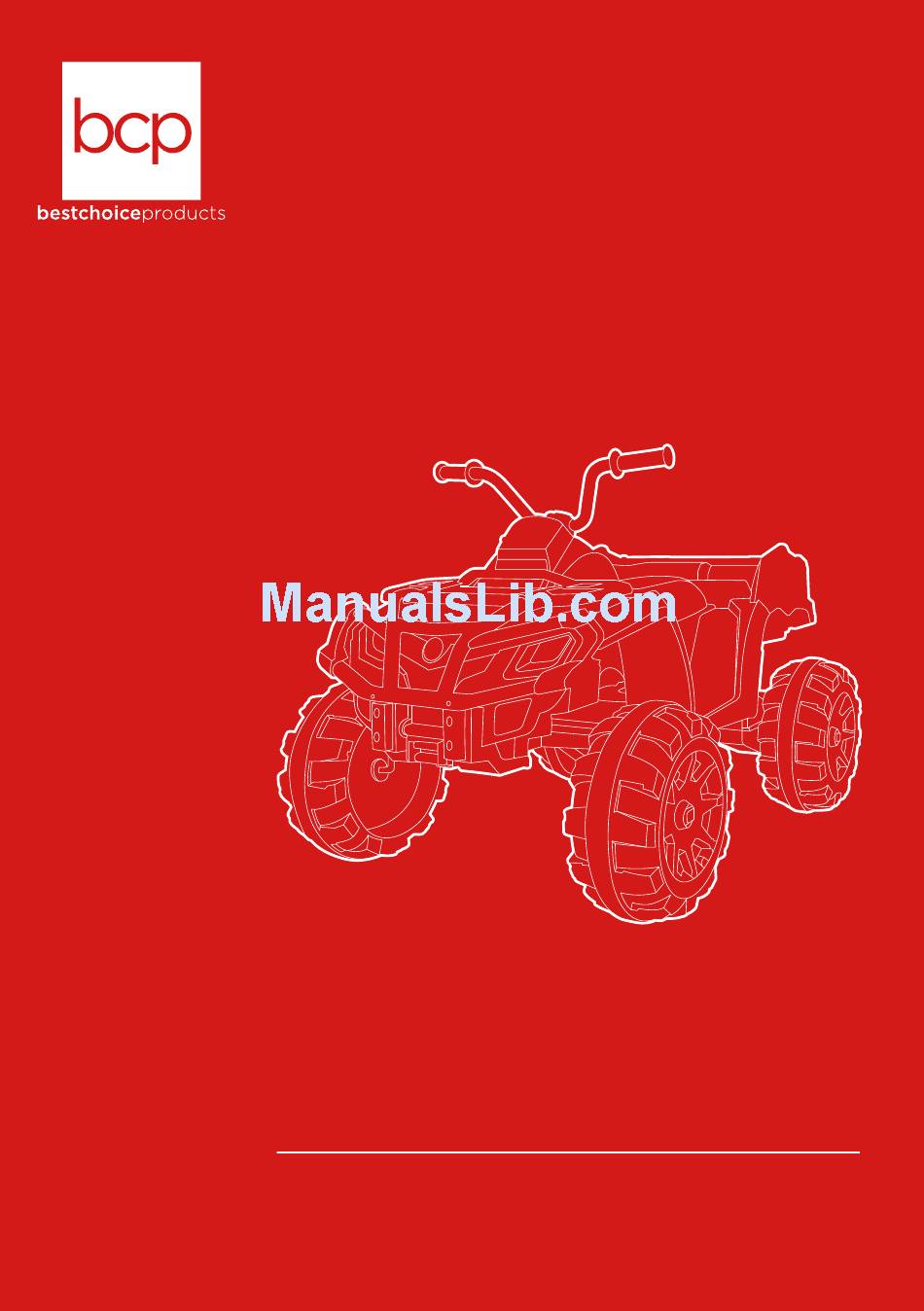

- Page 1 INSTRUCTION MANUAL Ride-On Quad ATV XL SKY3722 + SKY3723 + SKY3724 + SKY3725 Ver. 3...
- Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
-
Page 3: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 4: User Warnings
USER WARNINGS The following safety hazards may result in serious injury or death: • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. •... -
Page 5: Tools Required
TOOLS REQUIRED PHILLIPS METAL SPANNER 100 LBS 2 PERSON APPROXIMATELY (PROVIDED) SCREWDRIVER PLASTIC SPANNER CAPACITY ASSEMBLY 45 MIN. (PROVIDED) ASSEMBLY HARDWARE 1 PCS PARTS REAR AXLE FRONT WHEEL REAR WHEEL 1 PCS 2 PC 2 PC HUB CAP HANDLEBARS INSTRUMENT COVER 1 PC 4 PC 1 PC... -
Page 6: Product Assembly
PRODUCT ASSEMBLY Please retain these instructions for future reference. Flip the vehicle over and lay it on a level surface. Remove all the parts from the interior of the car. Note: the part A rear axle is secured within the vehicle with zip ties. Use the plastic spanner to remove the nut and washer from the center steering column. - Page 7 While swinging the axle around, lift up the front shocks and slide the axle onto the center steering column. Use the metal spanner to replace the nut and washer on the hinge of the axle. Position the front shocks into the designated slot; they will lock into place. Replace the nut and washer on the steering column and tighten using a plastic spanner.
- Page 8 PRODUCT ASSEMBLY Washer Washer Remove the nut and washer from one side of the front axle. Slide on a part B front wheel and position it between the two washers. Use the plastic spanner to tighten the nut. Repeat on the other side. Snap a part D hub cap onto each wheel.
- Page 9 PRODUCT ASSEMBLY Flip the assembly right side up. Press on the part E handlebars and it will lock in place. Press on the part F instrument panel. Within the seat, connect the red wire to the red Place the part H seat in position and secure it with terminal on the battery.
- Page 10 CHARGING INSTRUCTIONS & WARNINGS: • Charging socket is located behind the seat. Insert one end of the part G charger into the charging socket and plug the other end into a wall outlet. • Charge the battery at least 12 hours before initial use. •...
-
Page 11: Troubleshooting
MP3 FUNCTIONS • USB port: play music from a USB drive • AUX input: plug in music player to play music • MicroSD port: play music from a MicroSD card • : play/pause music • : short press to play to the next song, long press to increase volume •... -
Page 12: Product Warranty Information
ASSEMBLY IS COMPLETE! PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included. All returned items will receive a full refund back to the original payment method.
