Summary of Contents for Kandolite K64P36W3RGBAW
-

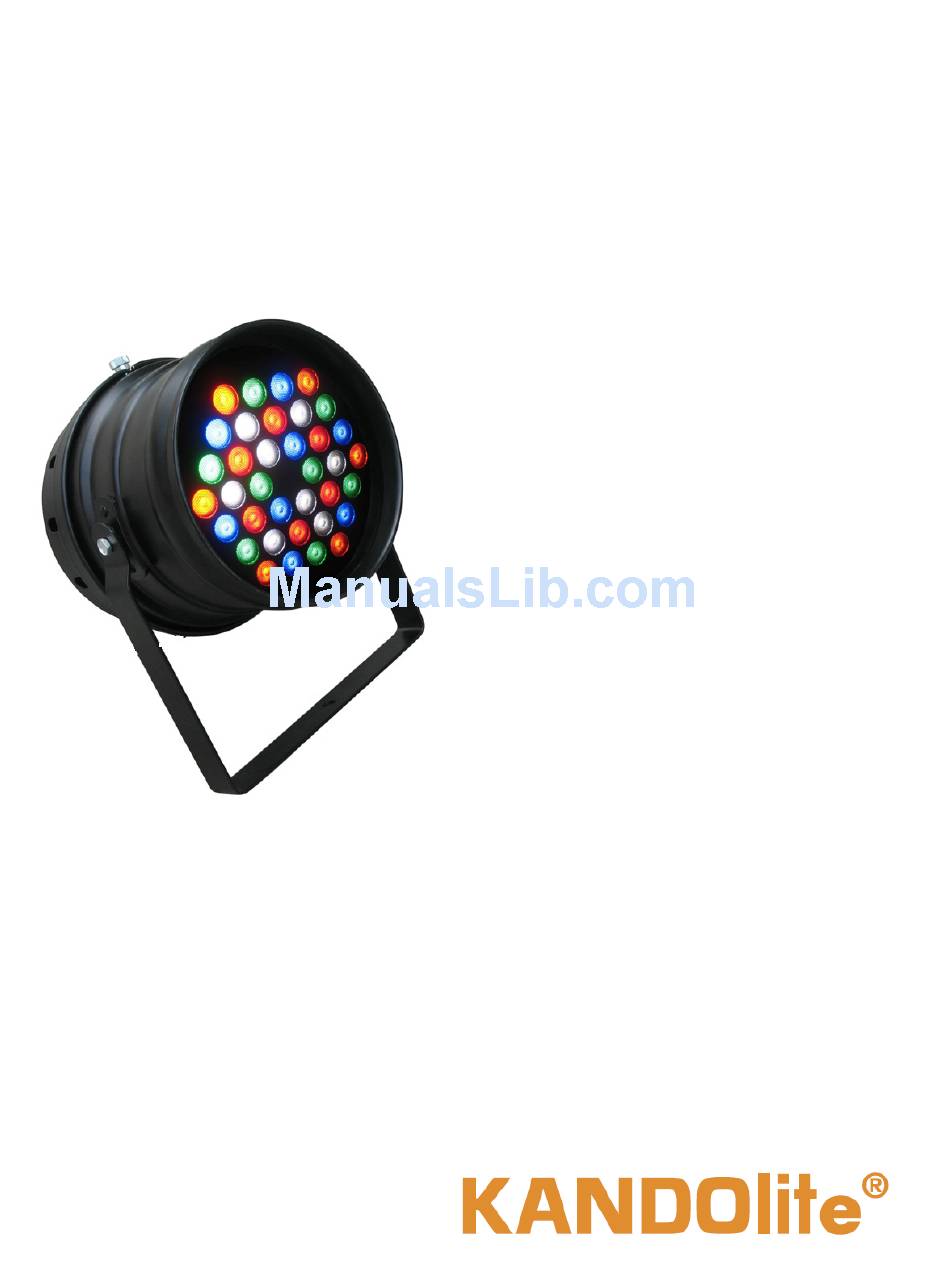

Page 1: User Manual
USER MANUAL K64P36W3RGBAW... -
Page 2: Table Of Contents
I n d e x summarize ................. 3 safety instruction ..............3 outside size picture ............. 4 main function ..............5 DMX controller function ............5 Display operation instruction..........6 Manual instruction............... 7 Operating control instruction..........9 XRL connection instruction ..........9 Connection picture .............11 Exploded Views ..............13 illuminance list ..............14... -
Page 3: Summarize
Products introduce This led K64P36W3RGBAW light is uses aluminum shell, designed in a fashion of hydrodynamic form. Appearance shows: long can, short can or short can with color filter. It takes uses high power R,G,B,A,W 5 kinds LED. It uses power switch, performs low weight and consumption, stable capability and long life. -
Page 4: Outside Size Picture
●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 40 degree. ●The fixtures maybe mounted in any position provided there is adequate room for ventilation. -
Page 5: Main Function
Main Function • high quality LED: low consumption, brightness, stable capability and long life • Each color of LED with 256 dimming, RGB each color has a good degree of saturation. • Liner Dimming 0%-100%, function of strobe, eotic, gradual change and jumping change •... -
Page 6: Display Operation Instruction
Channel DMX Value Control Function Remark 0-255 General dimming 0-255 Red Dimming 0——100% 0-255 Green Diming0——100% 0-255 Blue Dimming 0——100% 0-255 Amber 0——100% 0-255 White 0——100% 0-14 Dimming When the 7CH above31 t his ， 15-255 Strobe Speed function is invalid 0-31 Invalid... -
Page 7: Manual Instruction
Manual Instruction Operating instruction 1 MENU is used to access the menu or return to a previous menu option. It can not be used to select and store the current menu option. Press UP / DOWN to choose a desired menu item. Here are the operation details : •... - Page 8 • Press ENTER to select and store the current menu options. DMX mode will be • stored automatically and the screen will stop glinting. • DMX channel choosing Operation C HNd mode ： • Press Menu, go back to the initial setting •...
-
Page 9: Operating Control Instruction
Operating Control Instruction Master/Slave Master T he master should set as built-in program and shows” P - X – X” send out ： synchronization signals. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The signal lines are longer than 60 meters should increase a signal amplifier. - Page 10 The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable...
-
Page 11: Connection Picture
Connecting picture ： Cable connecting picture... - Page 12 Electrical wiring diagram...
-
Page 13: Exploded Views
Exploded views... -
Page 14: Illuminance List
Luminance list... -
Page 15: Problem Analyse
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check it the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... - Page 16 Some of the LED not Use the multimeter to check if the led is bright or not, of light not, please change the led check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the normal IC) Single color leds Check the switch of this color is normal or not...
-
Page 17: Technicals Secification
Technical Specification • Input voltage A C 100V-264V/47-63HZ ： • Output voltage D C24V ： • Consume 6 0W 3 6*3W 1 20W ： （ ： ） • Lamp Type H igh Power LED(1W/3W) ： • Lamp Spec R (6PCS) G(8PCS) B(8PCS) A (6PCS) - Page 18 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
