Tekbox TBWA2 Manual

20/40 db rf amplifiers
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

V1.2
TBWA2/20dB, TBWA2/40dB

1 Introduction

TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory
setups. With a 3dB bandwidth of 3MHz to 3GHz and a usable frequency range up to 6GHz, they are ideal to
boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with
20dB or 40dB gain.
Application:
general purpose gain block
EMC probe amplifier
Wideband RF Amplifiers

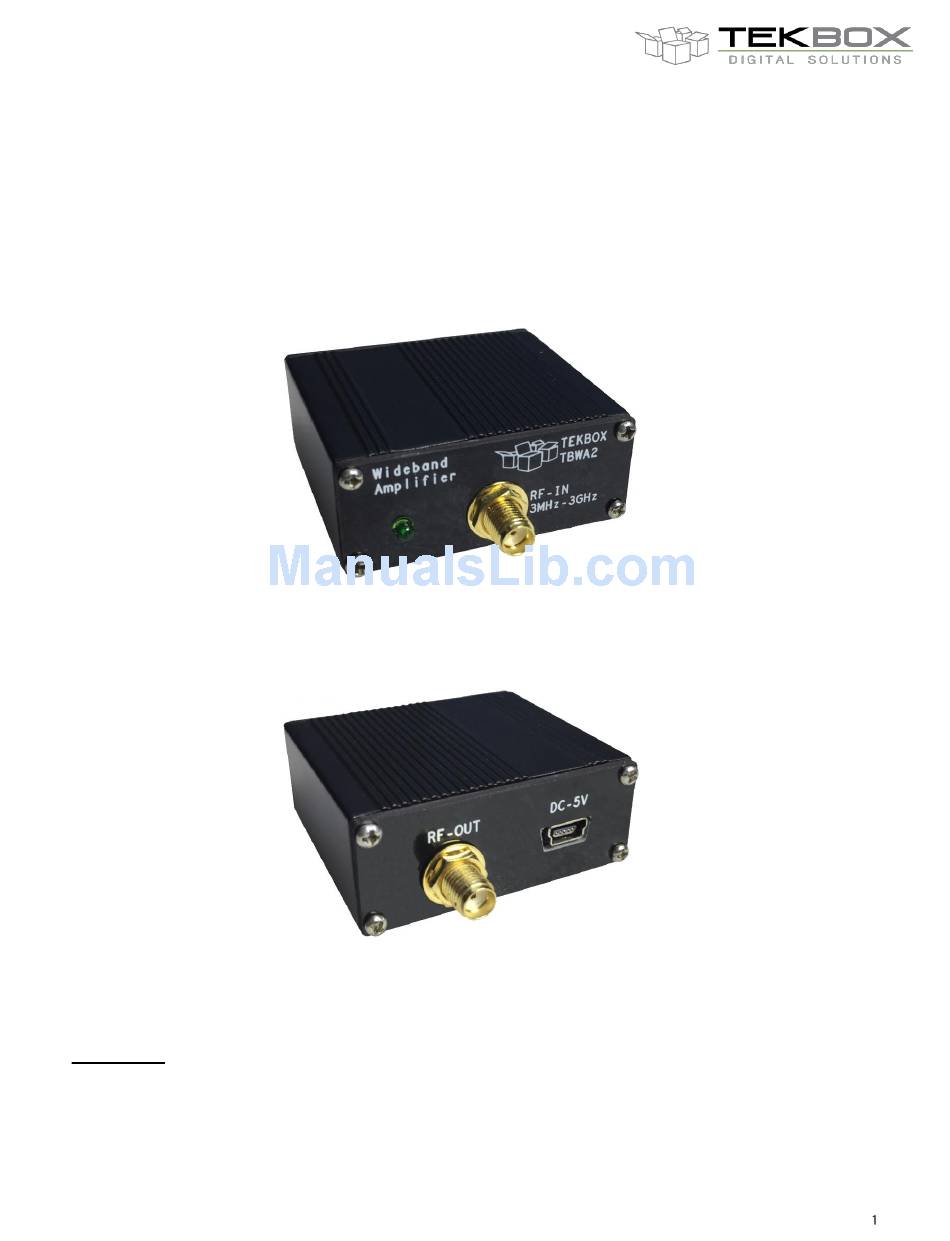

Picture 1 – TBWA2 wideband amplifiers front view
Picture 2 – TBWA2 wideband amplifiers rear view

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBWA2 and is the answer not in the manual?

Questions and answers

Related Manuals for Tekbox TBWA2

Summary of Contents for Tekbox TBWA2

  • Page 1 With a 3dB bandwidth of 3MHz to 3GHz and a usable frequency range up to 6GHz, they are ideal to boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.
  • Page 2 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 1.5 GHz 2 GHz 2.5 GHz 3 GHz 14.8 dB 20.3 dB 20.3 dB 20 dB 19.6 dB 18.9 dB 18.7 dB 18.3 dB 17.8 dB Table 1 – TBWA2/20dB gain...
  • Page 3 TBWA2/20dB, TBWA2/40dB Wideband RF Amplifiers Picture 3 – TBWA2/20dB, gain, 300 kHz – 3 GHz, lin. Picture 4 – TBWA2/20dB, gain, 300 kHz – 10 MHz, lin. Picture 5 – TBWA2/20dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.
  • Page 4 V1.2 TBWA2/20dB, TBWA2/40dB Wideband RF Amplifiers Picture 6 – TBWA2/20dB, output return loss, lS22l, 300 kHz – 3 GHz, lin.
  • Page 5 1.5 GHz 2 GHz 2.5 GHz 3 GHz 30 dB 40.2 dB 40.5 dB 40.2 dB 39.6 dB 38.8 dB 38.1dB 37.6 dB 36.6 dB Table 2 – TBWA2/40dB gain Picture 7 – TBWA2/40dB, gain, 300 kHz – 3 GHz, lin.
  • Page 6 V1.2 TBWA2/20dB, TBWA2/40dB Wideband RF Amplifiers Picture 8 – TBWA2/40dB, gain, 300 kHz – 10 MHz, lin. Picture 9 – TBWA2/40dB, input return loss, lS11l, 300 kHz – 3 GHz, lin.

  • Page 7: Ordering Information

    V1.2 TBWA2/20dB, TBWA2/40dB Wideband RF Amplifiers Picture 10 – TBWA2/40dB, output return loss, lS22l, 300 kHz – 3 GHz, lin. 3 Ordering Information Part Number Description TBWA2/20dB 20 dB amplifier, 1 pc 25cm SMA-male to SMA-male cable, 1 pc 75cm SMA- male to N- male cable.
