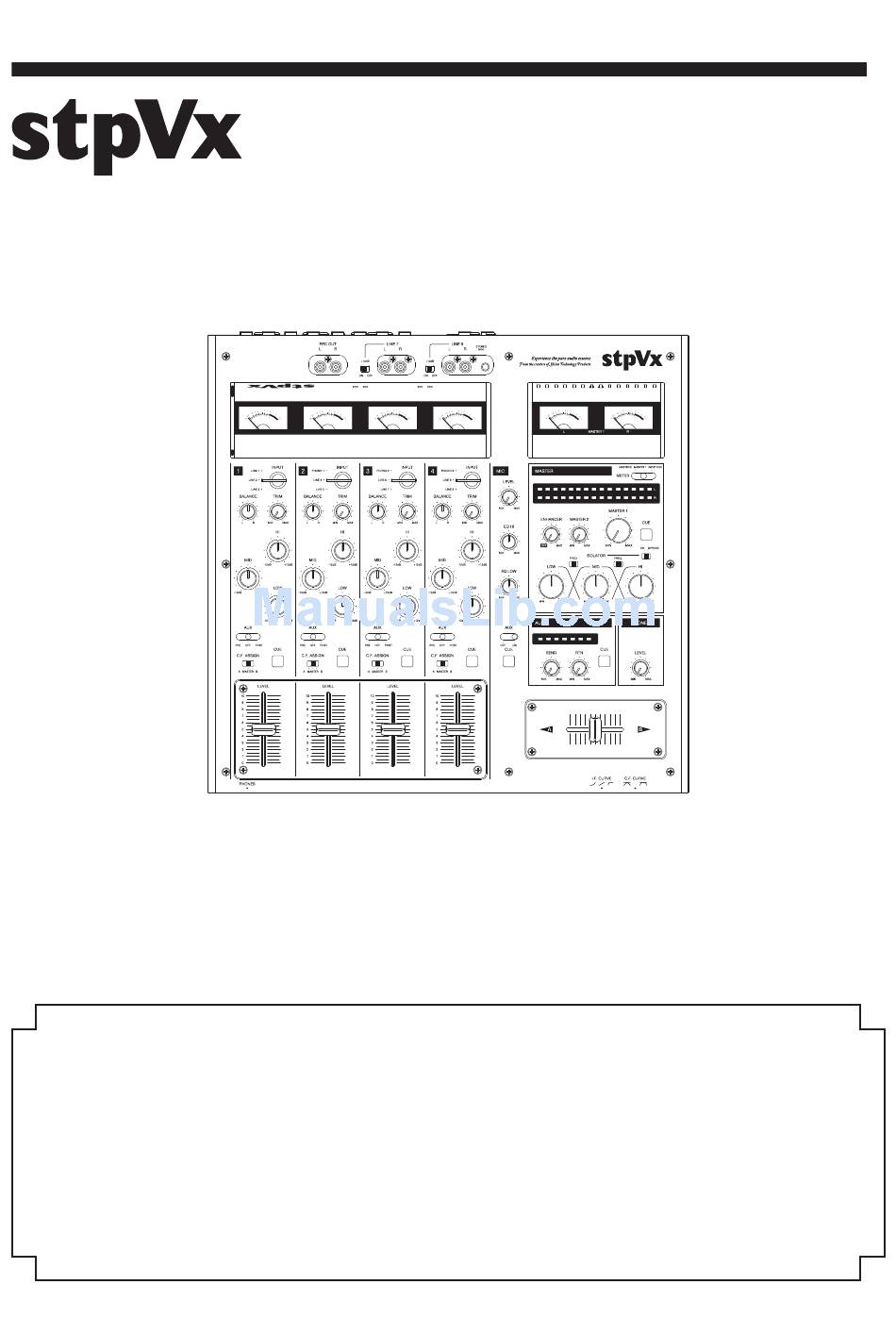

USER MANUAL INTRODUCTION Thank you very much for purchasing STPVestax PHOENIX Professional DJ Mixer. Read this manual thoroughly to get the most out of the performance of this DJ Mixer and also to use it safely. In particular, please be sure to read “IMPORTANT SAFELY INSTRUCTIONS” prior to use.
1. IMPORTANT SAFETY INSTRUCTIONS For correct operation and safety, please read this manual thoroughly prior to using your DJ mixer. After reading, please ensure to keep this manual in a safe place for ready reference. EXPLANATION OF GRAPHICAL SYMBOLS This “Safety Instructions” contain various pictorial symbols in order to use our product safely and correctly, to prevent injury to you and other users, and to prevent damage to property.
Page 3
WARNING ● ● Do not place naked flame sources on top of the Do not block the ventilation ducts. Blocked device, such as lighted candles. It may cause ventilation ducts may cause heat to accumulate fire. inside and result in fire. This device has ventila- tion ports both at the top and bottom of the chassis to prevent internal temperature-rise.
Page 4
CAUTION ● ● Even when the power switch is in the OFF To move/relocate the device, turn off the power position, the unit is not completely isolated from switch, make sure to disconnect the power cord the power supply. In order to prevent accidents, from AC outlet, and remove all connected cables place this product near the AC outlet and so that between other devices.
2. MAIN FEATURES The Phoenix Professional DJ Mixer is an all-round type 4CH mixer, created through careful design and tapping the abundant development/experience history and knowledge-base of its sound equipment master-craftspersons. It is manufactured using the highest technologies. ● Full, rich analog sound is produced that could not be gained with a digital mixer through reviewing the techniques of DJ mixer production history, as well as using original large toroidal transformers, specially-selected parts, and adapting advanced discrete circuitry.
4. NAMES AND FUNCTIONS Main features and their functions can be divided into 3 panels: Input channel panel Master panel Input/Output terminal panel Input/Output terminal panel KYORITSU KYORITSU KYORITSU KYORITSU KM-48 KYORITSU KM-48 KYORITSU KM-48 KM-48 KM-48 KM-48 Master panel Input channel panel Input/Output terminal panel - 6 -...
Page 7
Input channel panel ② ③ ④ ⑤ ① KYORITSU KYORITSU KYORITSU KYORITSU KM-48 KM-48 KM-48 KM-48 ⑬ ⑥ ⑦ ⑭ ⑧ ⑮ ⑯ ⑨ ⑰ ⑩ ⑪ ⑫ ⑤ INPUT SELECTOR 4 ① INPUT VU METER Selects the input to assign to CH4. Select one Displays the input level of each channel.
Page 8
⑫ CHANNEL FADER (VERTICAL FADER) ⑧ CHANNEL 3BAND EQUALIZER Controls the volume of the channel. The curve Adjusts Hi (high frequency range), Mid characteristics can be selected at Channel (medium frequency range), and Low (low fader curve control. frequency range) of each channel.Hi and Low adjustable range are between -12dB to +12dB, and Mid is between -10dB to +10dB.
Page 9
Master panel MASTER1 LEVEL VU METER Indicates MASTER1ʼs output level. There are 2 master outputs; MASTER1/2 which can be adjusted the volume individually. KM-48 KYORITSU KM-48 KYORITSU LED LEVEL METER DISPLAY SWITCH Selects the source to show on the LED level meter.
Page 10
3BAND ISLATOR Low CONTROL HEADPHONE VOLUME Controls the volume of low frequency range Controls the output level of from the head- between -∞ to +6dB. Flat at 12:00 position. phone jack (6.3mm stereo-phone) equipped on the front left of the unit. 3BAND ISLATOR Mid CONTROL ※...
Page 11
Input/Output terminal panel LINE1 INPUT TERMINAL (RCA Pin) LINE6 INPUT TERMINAL (RCA Pin) Input terminal for line level output devices Input terminal for line level output devices such as CD player or audio interface, and is such as CD player or audio interface, and is assigned to CH1.
Page 12
LINE5 INPUT TERMINAL MASTER LOOP INPUT TERMINAL (Φ6.3 standard mono phone) (Φ6.3 standard mono phone) Input terminal for line level output devices This mixer can add external effectors such as CD player or audio interface, and (isolator, equalizer, delay, reverb etc) just also for an audio mixer, keyboard or instru- before the final output stage.
Page 13
AUX OUTPUT SEND TERMINAL (RCA Pin) MASTER2 BALANCED OUTPUT TERMINAL (XLR Pin2-Hot) Useful when applying external effectors (delay, reverb, sampler, etc.) for a specific Unbalanced output of final mix which level is channel. Connect to the input terminal of the set at MASTER2 volume.
Page 14
REC OUT TERMINAL LINE9 INPUT ATTENUATOR SWITCH Outputs same sound as master. However, its Switches the attenuator value of the sound volume does not relate to the master volume, input to LINE9. Set it to OFF to connect a and it outputs as the level of 14:00 position. normal LINE output device, and set +10dB It is useful for recording the event mix.
5. SPECIFICATIONS INPUT STAGE (Standard level / impedance) LINE 1, 2 IN RCA Pin terminal (Unbalanced) -10dBv/10kΩ LINE 3 IN φ6.3 Terminal×2 (Unbalanced) -10dBv/10kΩ PHONO1 IN RCA Pin terminal (Unbalanced) -52dBv(1kHz)/47kΩ LINE 4 IN RCA Pin terminal (Unbalanced) -10dBv/10kΩ LINE 5 IN φ6.3 Terminal×2 (Unbalanced)...
6. WARRANTY AND AFTER-SALES SERVICE (1) WARRANTY CARD There is no printed warranty card included. The purchase date, owner information, and the serial number of this unit will be registered and managed by “Stpvestax LLP”, and can be verified by the dealer or owner by contacting the manufacturer “Stpvestax LLP”...
