Summary of Contents for E&Q AVHR-5000

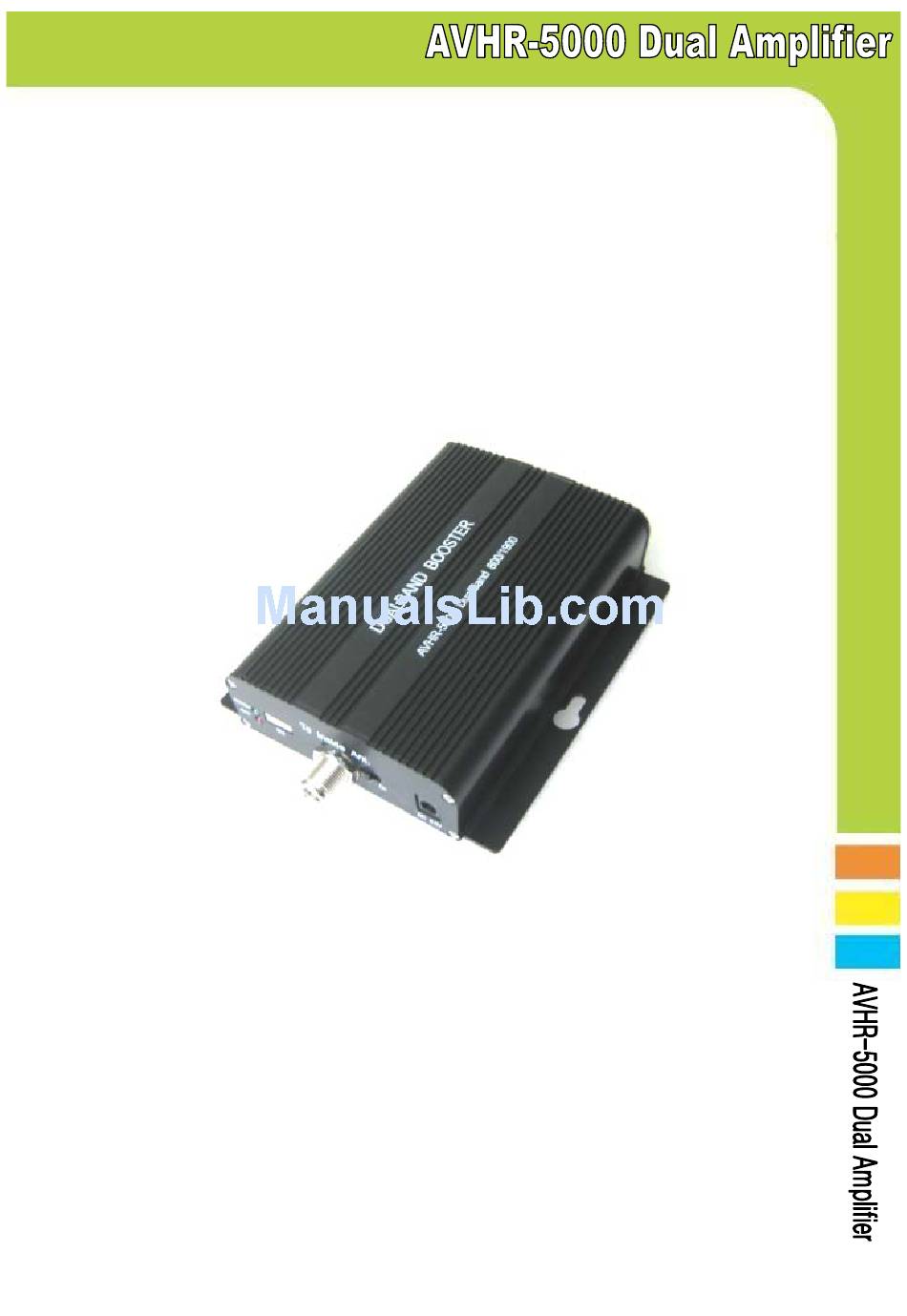

  • Page 1 Installation User Guide MODEL : AVHR 5000 MODEL : AVHR 5000...
  • Page 2: Table Of Contents

    - Content - 1. General Information 1.1 Precautions 1.2 Features 2. System Components 3. Installation 3.1 Outside Antenna Installation 3.2 Inside Antenna Installation 3.3 Amplifier and Antenna Connection 3.4 Operating Instructions 4. Trouble Shooting 4.1 LED Alarm 4.2 Insufficient Outside Signal Problem 4.3 Vehicle Battery Discharge Problem 5.
  • Page 3: General Information

    1. General Information 1.1 Precautions Reference : Things you need to know to operate the product properly Caution : Things that you need to know not to damage the product Warning : Showing instructions for users to avoid unexpected hazard 1.1.1 Do not drop the device - Drop could damage the product 1.1.2 Do not place near magnetic...
  • Page 4: Features

    1.2 Features 1.2.1 Summary This product is installed on cars, trucks, trailers, boats and homes to improve user’s mobile phone signal. Decrease dropped call II. Increase 2G/3G/4G data speed III. Battery life extension IV. Voice quality improvement It is a RF type amplifier used for only CDMA Cellular bands in the 800MHz and PCS1900MHz .
  • Page 5: System Components

    ▣ System Components ① . Inside Antenna: connects signal between mobile phone and amplifier ②. AVHR-5000: amplifies signal from outside antenna which receives signal from a base station and sends amplified signal to mobile phone ③. User Manual: shows how to operate system ④.
  • Page 6: Installation

    3. Installation 3.1 Outside Antenna Installation 3.1.1 Outside antenna is magnetic. So you can mount on the roof of vehicle 3.1.2 Outside antenna should be distance at least 5 feet from inside antenna 3.1.3 As showing on the picture below, suggested place to mount outside antenna is rear end of roof Best Good...
  • Page 7: Amplifier And Antenna Connection

    3.3 Amplifier and Antenna Connection 3.3.1 Place the amplifier under the seat or appropriate location. 3.3.2 Connect inside antenna connector to repeater 3.4 Operating Instructions 3.4.1 As the picture shown below, plug in the cigarette power code and press red button to turn on Page 6...
  • Page 8 3.4.2 Connect DC Jack as picture down below 3.4.3 Turn on the Switch as picture down below 3.4.4 After turning on switch, green LED light will be on(Green LED means that system is normal mode) ※ Green and Red LED simultaneously brinks 3 times and then only green LED light will be on Page 7...
  • Page 9: Led Alarm

    4. Trouble Shooing 4.1 LED Alarm Item GREEN LED RED LED 문제점 찾기 ON (after 3 times Setting/Resetting 3 times blinks See 4.1.1 blinks) Normal Mode See 4.1.2 Overload Blink( once) See 4.1.3 Oscillation Blink(twice) See 4.1.4 Insufficient Blink(3 times) See 4.1.5 Isolation Alarm...
  • Page 10: Insufficient Outside Signal Problem

    4.1.5 ① There is a insufficient isolation between inside and outside antenna ② While installing if LED light blinks three times, move the inside and outside antenna away and turn on/off and move antenna as needed. ③ If there was no blinking problem while set up but happens after, it could be caused by surrounding structure but that could be come back to normal if you move to different location.
  • Page 11: Specification

    5. Specification 5.1 Amplifier Specification Items Cellular Remarks Downlink 869 ~ 894 MHz 1930 ~ 1990 MHz CDMA Only Operating Frequency Uplink 824 ~ 849 MHz 1850 ~ 1910 MHz CDMA Only Downlink 55dB±2.0dB 55dB±2.0dB Gain Uplink 55dB±2.0dB 55dB±2.0dB Downlink +10dBm +10dBm Output Power Level...
  • Page 12: Outside Antenna Specification

    5.2 Outside Antenna Specification Items Cellular Remarks Operating Frequency 820 ~ 890 MHz 1710 ~ 1990 MHz Bandwidth 70MHz 170MHz Gain 5dBi VSWR ≤ 2.0 : 1 Impedance 50 Ω Polarization Vertical Connector FME(Female) Antenna Length 28Cm Weight 220g Cable Length 5.3 Inside Antenna Specification Items Cellular...
  • Page 13: Certificates

    350mV Over Current Protection 7.0A Short Circuit Protection 6. Certificates 6.1 FCC Certification ▪ Model : AVHR-5000 ▪ Certificate Data : 2011.03 ▪ Certificate No.: 6.2 IC Certification ▪ Model : AVHR-5000 ▪ Certificate Data : 2011.03 ▪ Certificate No.: 7.
  • Page 14: Memo

    7. Memo Page 13...
