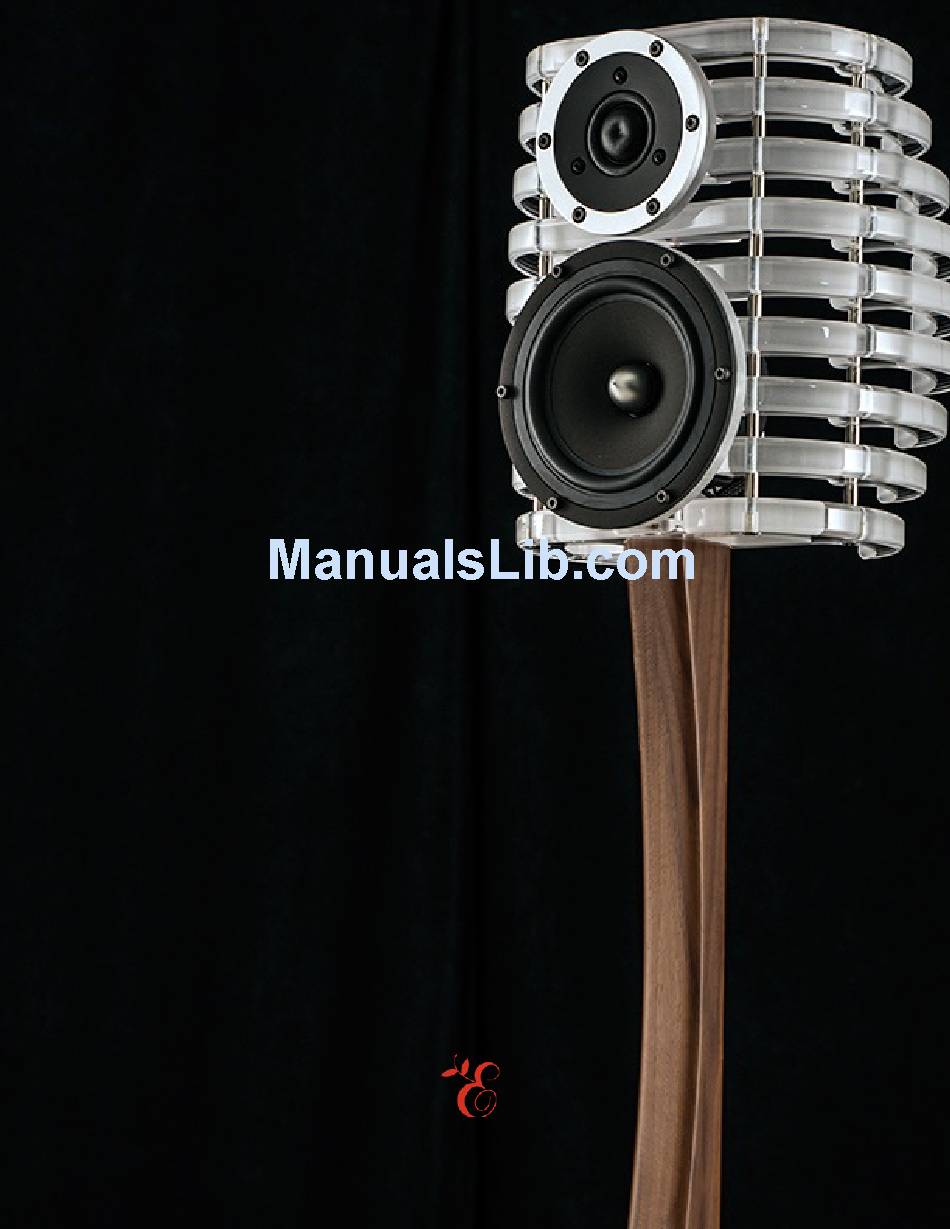

TÔMEI

User Manual

Version 4.3 - April 2017
O
P
E
N
A
I
R
L O
EDEN ACOUSTIQUE
U
D
S
P
E
1
! sur !
22
A
K
E
R
S

Advertisement

Table of Contents
loading

Summary of Contents for Eden Acoustics TOMEI

  • Page 1: User Manual

    TÔMEI User Manual Version 4.3 - April 2017 EDEN ACOUSTIQUE ! sur !

  • Page 2: Table Of Contents

    3.7.1 Splash Screen ....3.7.1 Volume Mode ....3.7.2 Source selection ....3.7.3 Settings ....3.7.5 Settings Description 3.8 Testing the installation 3.9 Positioning the TOMEI loudspeakers 3.10 Run-in period TROUBLESHOOTING SERVICE AND GUARANTEE 5.1 Service 5.2 Guarantee ! sur !

  • Page 3: Introduction

    TOMEI means “transparent, invisible” in Japanese and it exactly defines the sound of your new loudspeakers. With TOMEI you do not hear a loudspeaker, you attend a live musical event. Dipole loudspeakers propagate the sound in front of a baffle as well as towards the back.

  • Page 4: Unpacking

    UNPACKING ! of !

  • Page 5: Precautions

    1.1 PRECAUTIONS TOMEI loudspeakers come in two crates. The largest crate contains the two TOMEI The crates are quite big so you may need towers on their wood stands. help to move them. Please allow sufficient space for the boxes to be opened and the contents to be removed.

  • Page 6: Larger Crate

    The screws are identified by a yellow surround. Once the crate is open you will see the acrylic Remove the padding material that protects base of the bass module. It is seen from the the TOMEI monitors and the solid wood bottom. stands. ! of !
  • Page 7 Remove the bass module by pulling carefully Extract the TOMEI towers from the foam on its acrylic base. The bass module is heavy protection by pulling carefully on the wood and might require a second person to pull it support.
  • Page 8 From the small crate: Remove the burlap Remove the Control Unit carefully. It is pouch that contains the cables and located just besides the bass module in the accessories. crate in a black pouch. Remove and unpack the spikes from the pouch.

  • Page 9: Installation

    INSTALLATION ! of !

  • Page 10: Installing The Spikes

    The way to connect the cables to the Control Unit and loudspeakers is as follows: Floor Protect Ring 2.2 CONNECTING TOMEI LOUDSPEAKERS TOMEI loudspeakers come with high-end bi- wire cables. The following images show each 1. Place the cable plug on the speaker connector.

  • Page 11: Standard Loudspeaker Set-Up

    8 inches (20 cm) behind the All three speakers connect to the Control Unit Control Unit so you can easily access/connect using the included cables. the cables. For more details see Section 3 - Using Tomei Loudspeakers. of !

  • Page 12: Using Tomei Loudspeakers

    USING TOMEI LOUDSPEAKERS of !

  • Page 13: Brief Description

    3.1 BRIEF DESCRIPTION 3.3 CONNECTING A SOURCE COMPONENT The Control Unit offers balanced (XLR) and The TOMEI loudspeakers are the fruits of unbalanced (RCA) input connectors for more than 3 years of continuous analog signals. A high performance USB development to eliminate the loudspeaker...

  • Page 14: Analog Input

    3.5 DIGITAL INPUTS or moves toward the start of a list. Normal Click (pushing like a mouse • Your TOMEI loudspeakers use one S/PDIF click) is a normal selection, works like digital input (up to 24 bits/192 kHz sampling an Enter key.

  • Page 15: Splash Screen

    3.7.1 SPLASH SCREEN Three types of input sources are available: a. ANALOG: Both balanced and unbalanced Eden Acoustique analog inputs are available. ACU-01 v2.0.3.1 b. USB AUDIO: A high-end USB Audio Class 2 input let’s you connect your computer directly to the Control Unit to play HD The splash screen typically displays company music.

  • Page 16: Settings Description

    3.7.5 SETTINGS DESCRIPTION DAC Filter DAC Level This sets the internal DAC filters of the AKM AK4495 DACs. The super slow roll off setting The DAC Level adjusts the amplitude of the is generally preferred. The options are: signal going to the amplifiers. You will normally set this to Consumer or Balanced.

  • Page 17: Testing The Installation

    To obtain the best separation and imaging, to get the best from your loudspeakers. While we recommend sitting closer to the speakers the TOMEI will sound great after about two than customary. Try sitting within an weeks, they will need at least 100 hours of equilateral triangle with the speakers.

  • Page 18: Troubleshooting

    TROUBLESHOOTING of !
  • Page 19 Front display does not lit Unable to access the Control Unit menu Make sure the power cord is connected and On power ON, the splash screen first appears well seated in its receptacle. Make sure the and while the initialization process is going Control Unit power switch is ON.

  • Page 20: Service And Guarantee

    SERVICE AND GUARANTEE of !

  • Page 21: Service

    Please contact your Eden without the written authorization of Eden Acoustique dealer for more info. Acoustique Inc. In the unlikely event that your TOMEI DSP Attempted servicing by unauthorized people loudspeaker fails to function correctly, it may also invalidate this guarantee. Labor and...
  • Page 22 Open Air Loudspeakers Finely handcrafted in Canada St-Eustache, QC, CANADA +1-450-472-5908 of !
