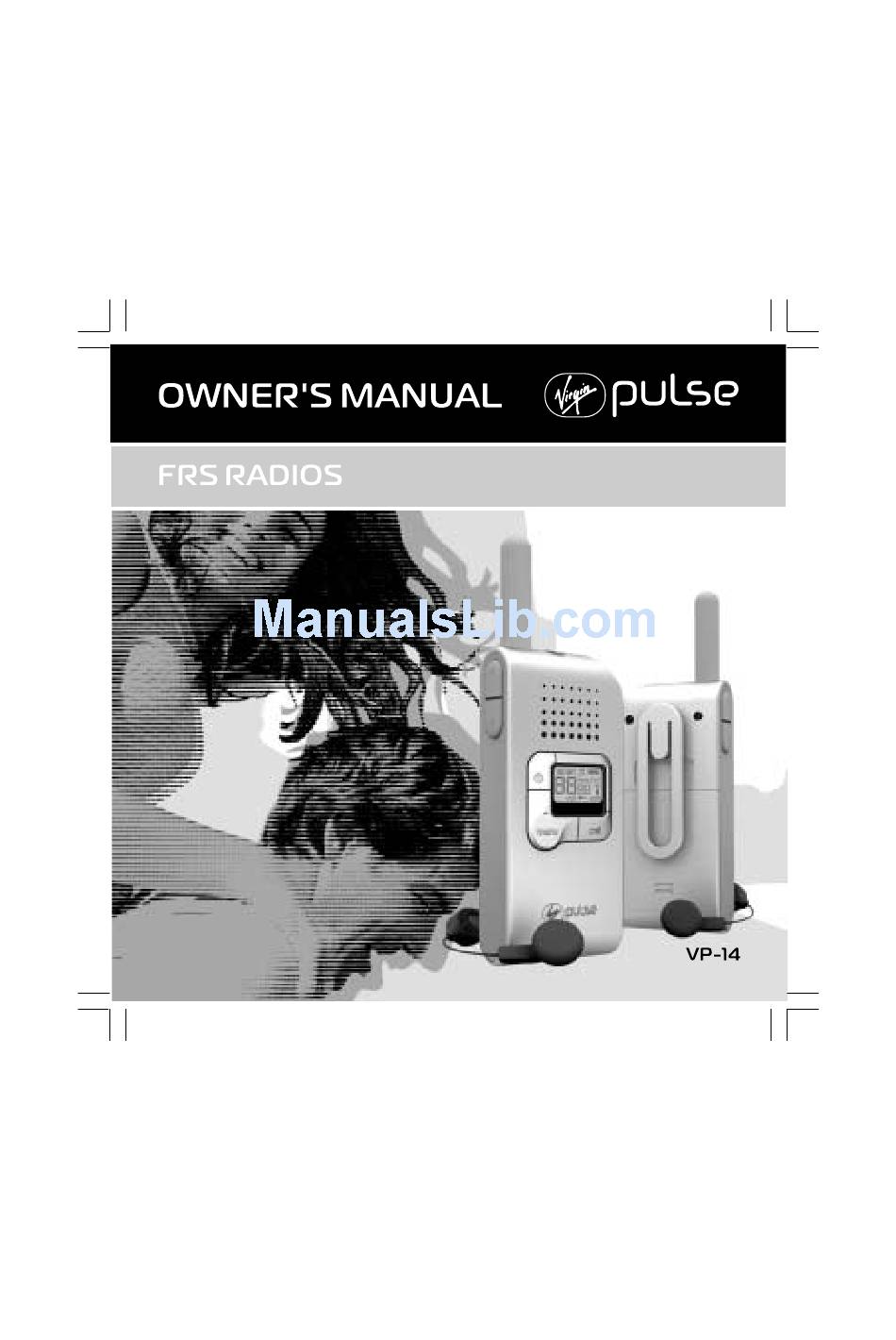

Summary of Contents for Virgin Pulse VP-14
- Page 1 1.877.4VPULSE or www.virginpulse.com...
- Page 2 INTRODUCTION Congratulations! You’ve just bought the sexiest 2-way radios on the planet. Of course, we may be biased. But consider this: they’re seductively simple to use and super easy to carry in your hand, on your arm, or on your hip. Take them on a hike through the moun- tains or even down to the local shopping mall.
-
Page 3: Fcc Information
FCC INFORMATION Caution: Do not open your radio to make any internal adjustments. Your radio is set up to transmit a regulated signal on one of 14 assigned frequencies. It is against the law to alter or adjust the settings inside the radio. Adjustments to your radio can only be made by a qualified technician using the proper test equipment. -
Page 4: Lcd Display Symbols
LCD DISPLAY SYMBOLS Your radio comes with a multifunction backlit display. By pressing any button except the call and talk button, the backlight will illuminate for 10 seconds. 10 9 1.877.4VPULSE or www.virginpulse.com... - Page 5 Number Symbol Explanation Shows the selected channel number Shows the selected CTCSS code number Displays when the volume of radio is being adjusted higher or lower Displays when the Key Lock is activated Indicates the Automatic Power Off mode is activated Displays when your radio is transmitting or the CALL function is set.
-
Page 6: Key Features
KEY FEATURES 1. HipClip With the belt clip, you can carry your radio very conveniently wherever you go. Just push the HipClip into the snap slot on the back of the unit. (See Fig. 1). To remove, pull up the snap tab and pull out the HipClip. - Page 7 2. Battery Compartment Your radio uses three (3) AAA Alkaline batteries for power. To open the battery cover, push in and slide out as shown. Button The UP button is used to adjust volume and settings up one level. Button The DOWN button is used to adjust volume and settings down one level.
-
Page 8: Talk Button
10. Talk Button To talk, press and hold down the talk button, and speak into the Speaker/Microphone to transmit. 11. Transmit LED When you transmit, the transmit LED will illuminate. 12. External Microphone/Speaker Jack Connect the supplied earbud in this jack. 13. -
Page 9: Basic Functions
BASIC FUNCTIONS Operating the Radio To start using your radio, insert three (3) AAA alkaline batteries or Ni-MH rechargeable batteries into the battery compartment. Note the battery orientation as indicated in the battery compartment. 2. Press and hold the Power On/Off button to turn on the radio. Adjust the volume to a desired level. 3. -
Page 10: Menu Options
MENU OPTIONS To access the Menu Options, press the menu button. The radio will then toggle between the following configurable settings sequentially. Symbol Setting Description Channel Selects a channel for transmission CTCSS Selects a CTCSS code for the current channel Enable/disable voice-activated transmission Roger Beep Enable/disable beep heard after the finish of a received... -
Page 11: Channel Frequencies
CHANNEL FREQUENCIES Frequency: MHz 01=462.5625 02=462.5875 03=462.6125 04=462.6375 05=462.6625 06=462.6875 07=462.7125 08=467.5625 09=467.5875 10=467.6125 11=467.6375 12=467.6625 13=467.6875 14=467.7125 Scanning When you are selecting a channel, you can also activate the channel scan function by pressing and holding . “SCAN” will show on the display. If a valid signal is present, the radio will pause on the current active channel. - Page 12 Frequency: Hz CTCSS PRIVACY CODES 01: 67.0 02: 71.9 03: 74.4 04: 77.0 05: 79.7 06: 82.5 07: 85.4 08: 88.5 09: 91.5 10: 94.8 11: 97.4 12: 100.0 13: 103.5 14: 107.2 15: 110.9 16: 114.8 17: 118.8 18: 123.0 19: 127.3 20: 131.8 21: 136.5...
- Page 13 LCD Symbol Description VOX disabled Low sensitivity – only audibly loud voices are transmitted (useful for noisy environment) Normal sensitivity – ideal setting for voice-activated transmission High sensitivity – all detected sounds (including noise) are transmitted You can use the VOX function with either the radio’s speaker/microphone or with the supplied earbud.
- Page 14 Roger Beep Mode If the Roger Beep mode is enabled, the receiving party will hear a beep tone when you finish transmitting a message. This avoids situations where messages are interrupted because the other party is not aware that the transmission is not finished. Press to activate or deactivate the Roger Beep function.
-
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS RX Frequency 462.5625-467.7125 MHz Channels Modulation type Antenna impedance 50 Ohm Microphone condenser type Power supply 3 × AAA Alkaline Sensitivity at 12dB Sinad 0.5µV Adjacent Channel Rejection 45dB Audio Squelch Auto Audio output power 100mW @ 8 Ohm Audio Distortion RF Output Power 270 mW ERP @4.5VDC... - Page 16 Virgin Item#VP-14 Made in China Products manufactured and distributed for, and under license from Virgin Enterprises Limited. Virgin Pulse is a trademark of Virgin Enterprises Limited, 2003. 1.877.4VPULSE www.virginpulse.com Customer Care Form: VP-14 IB-00500 Rev. 5/25/03 1.877.4VPULSE or www.virginpulse.com...
