Sat Cruiser DSR-301 ACE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DSR - 301 ACE
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSR-301 ACE and is the answer not in the manual?

Questions and answers

Summary of Contents for Sat Cruiser DSR-301 ACE

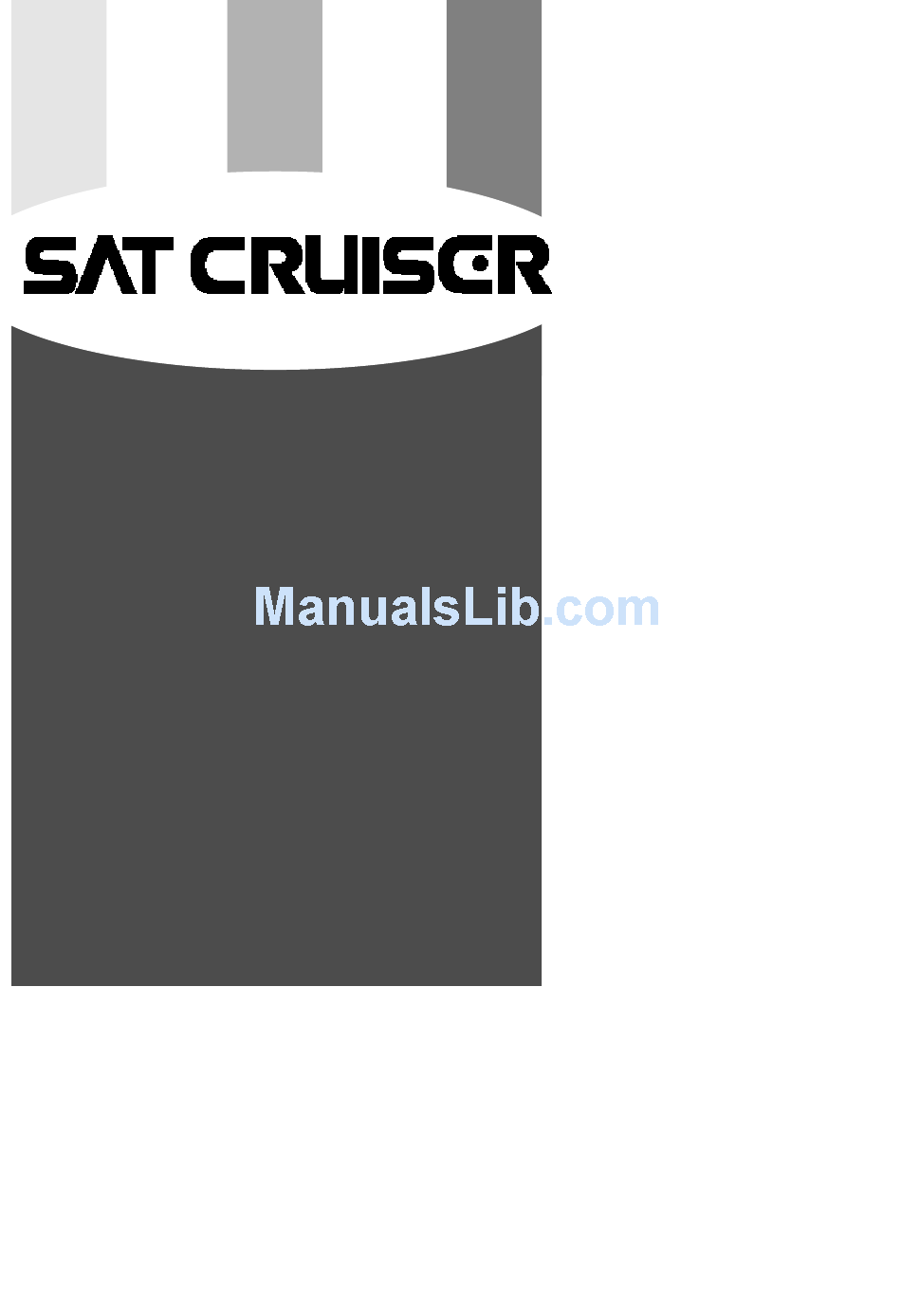

  • Page 1 DSR - 301 ACE User Guide...
  • Page 2 I N F O R M A T I O N T O T H E U S E R INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    C O N T E N T S For Your Safety 1. Before Getting Started 1.1 Main Features 1.2 Accessories 2. Controls and Functions 2.1 Front Pannel 2.2 Rear Pannel 2.3 Remote Control Unit 3. Connections 3.1 Connecting to the TV, VCR and Satellite Antenna 3.2 Connecting to the TV, HiFi system and 0/12V switch 3.3 Connecting DiSEqC switch 3.4 Connecting CA Module...

  • Page 4: Before Getting Started

    B e f o r e G e t t i n g S t a r t e d 1.1 Main Features Easy Menu Function TV Guide Function RF Output Function Electronic Program Guide(EPG) for On Screen Channel Information Software Upgrading Function Through RS-232C Cable by PC Perfect DiSEqC 1.2 and 0/12V Support for Various Antenna System or 2-LNB on 1 Antenna System...

  • Page 5: Accessories

    A c c e s s o r i e s 1.2 Accessories User Manual Battery Remote Control Unit RCA cable...

  • Page 6: Controls And Functions

    C O N T R O L S A N D F U N C T I O N S 2.1 Front pannel STANDBY ON Turn the power on/off. MENU Shows the menu application. Channel Change channel, move menu, or input frequency value. Volume Control volume, change item on menu or input frequency value.

  • Page 7: Rear Pannel

    R e a r p a n n e l 2.2 Rear pannel DIGITAL It receives signals from the LNB in the range of 950 ~ 2150MHz. Connect a satellite dish to DIGITAL. It sends signal to the another receiver. RS-232C It receives data by connecting to PC for software upgrading.

  • Page 8: Remote Control Unit

    C O N T R O L S A N D F U N C T I O N S 2.3 Remote Control Unit Open the controller cover on the back and insert two batteries (AA - 1.5V). POWER Turn the power on/off. TV/SAT Select between TV Channels and Satellite channels for RF output.
  • Page 9 R e m o t e C o n t r o l U n i t PROGRAM GUIDE Shows the broadcasting information.(Video - Audio - LNB) INFORMATION Shows the information of current channel. Click the INFO button twice, TELETEXT mode will be displayed.

  • Page 10: Connections

    C o n n e c t i o n s 3.1 Connecting to the TV, VCR and Satellite Antenna It is not necessary to adjust power, as the product is of free - voltage (100 ~ 240V ) 1. Connect the RF cable from the TV OUTPUT on the satellite receiver to a TV and connect the RF modulate on the VCR and the TV ANT.IN.

  • Page 11: Connecting To The Tv, Hifi System And 0/12V Switch

    C o n n e c t i n g t o t h e T V 3.2 Connecting to the TV, HiFi system and 0/12V switch 1. Connect the RCA cable from the VIDEO INPUT on the TV to the VIDEO on the satellite receiver.

  • Page 12: Connecting Ca Module

    C o n n e c t i o n s 3.4 Connecting CA module To receive the distrivuted program of Service Provider you need a Smart card or CI module. 1. Insert CI module fully into the CI slot for watching TV programmes from Service Provider. 2.

  • Page 13: Settings And Operations

    S e t t i n g s a n d O p e r a t i o n s 4.1 Basic Settings If it is the first time using a receiver, you should set parameters for system configuration. Refer to the following section.
  • Page 14 D i s E q C 1 . 2 L i m i t S e t t i n g s <DiSEqC 1.2 Limit Settings> If you have a DiSEqC 1.2 motoried system to control your satellite antenna you have to make the following setting.
  • Page 15 S e t t i n g s a n d O p e r a t i o n s <TP Configuration> You have to know valid value for your LNB at first. 1. Select TP Configuration of the installation. 2.
  • Page 16 T P C o n f i g u r a t i o n 7. Move to desired TP with CH on the RCU. If there are no transponder data which you want, move to Add and press OK button. 8.
  • Page 17 S e t t i n g s a n d O p e r a t i o n s 12. In case of searching a certain satellite which can not be searched by TP Search, add channels by PID. Select Add Channel and input proper Channel name and input the values of Video PID, Audio PID and PCR PID.

  • Page 18: Viewing Tv(Or Radio)

    V i e w i n g T V 4.2 Viewing TV(or Radio) 1. Press the Power button. 2. Press the TV(or Radio) button. 3. If you want to see all TV channel list, click the MENU button and then select the TV Channels(or Radio Channels).
  • Page 19 S e t t i n g s a n d O p e r a t i o n s Edit TV Channels / Edit Radio Channels From these menus you can creat and edit channel list. Press OK button from Edit TV Channels and similar screen will be shown as below. Arrange channel To change the channel orders from TV List, press OK button from your desired channel.
  • Page 20 L o c k C h a n n e l s Sort If you want to sort channels in order, select the SORT button in Edit channels. You can select the order you want. Lock Channels From here you can lock channels in any of the lists in order to prevent your children from watching.

  • Page 21: System Settings

    S e t t i n g s a n d O p e r a t i o n s Parental Control If you use this funciton you have to enter the password everytime you start this satellite receiver. 1.

  • Page 22: Other Functions

    O t h e r F u n c t i o n s 4.3 Other functions Audio Selection If broadcasting channel is supporting multi language, different language can be selected from Audio Selection. 1. To select different language on current channel, select Audio Selection on the Main Menu.
  • Page 23 S e t t i n g s a n d O p e r a t i o n s From Teletext Screen CLEAR Overlay background screen and teletext mode according to the following order(transparency - Teletext only - Opacity) INFO Hold of current Teletext page PAGE UP/DOWN...
  • Page 24 S y s t e m S e t t i n g s 4.4 System Settings Please make sure to press OK button always, after the changing items of System Settings. Audio language Only if a current channel contains 2 or more audio language information, set the Audio Language as English or other favorite language.
  • Page 25 S e t t i n g s a n d O p e r a t i o n s TV Standard Except for a few, most countires are using PAL system for TV signal, accordingly set TV Standard as PAL. To be more flexible for NTSC or PAL signal from different satellites, select MULTI for automatic signal conversion.

  • Page 26: Ca Information

    S y s t e m S e t t i n g s S/W Version Show software version. Select S/W Version. Initialization Press OK button from Initialization. If you want initialization, select OK button, otherwise, select any button of remote controller. The receiver will be turned off and on automatically after 1~2 seconds to initialize all the values to factory setting mode.

  • Page 27: Appendix

    A p p e n d i x 5.1 Troubleshooting SYMPTOM SOLUTION No picture display and no LCD channel Check the power connection display No picture display with normal LCD 1. Check the connection with TV channel display 2. Check the connection between TV outside input and receiver cable 1.

  • Page 28: Glossary

    G l o s s a r y 5.3 Glossary Low Noise Block converter. The LNB is an electronic unit mounted on satellite dish to receive signals reflected by the dish and convert to signals. L.O. frequency Local Oscillator frequency as a part of LNB. It converts the satellite frequency to usable signals for the receiver.
  • Page 29 A p p e n d i x NTSC National Television Standards Committee Phase Alternate Line Ku band 11~18GHz Frequency C band 3~4GHz Frequency SCPC Single Channel Per Carrier MCPC Multi Channel Per Carrier Packet Identifier. TransPonder SCART, RCA A connector for connection of Satellite receiver, VCR and TV sets. Video Cassette Recorder.
