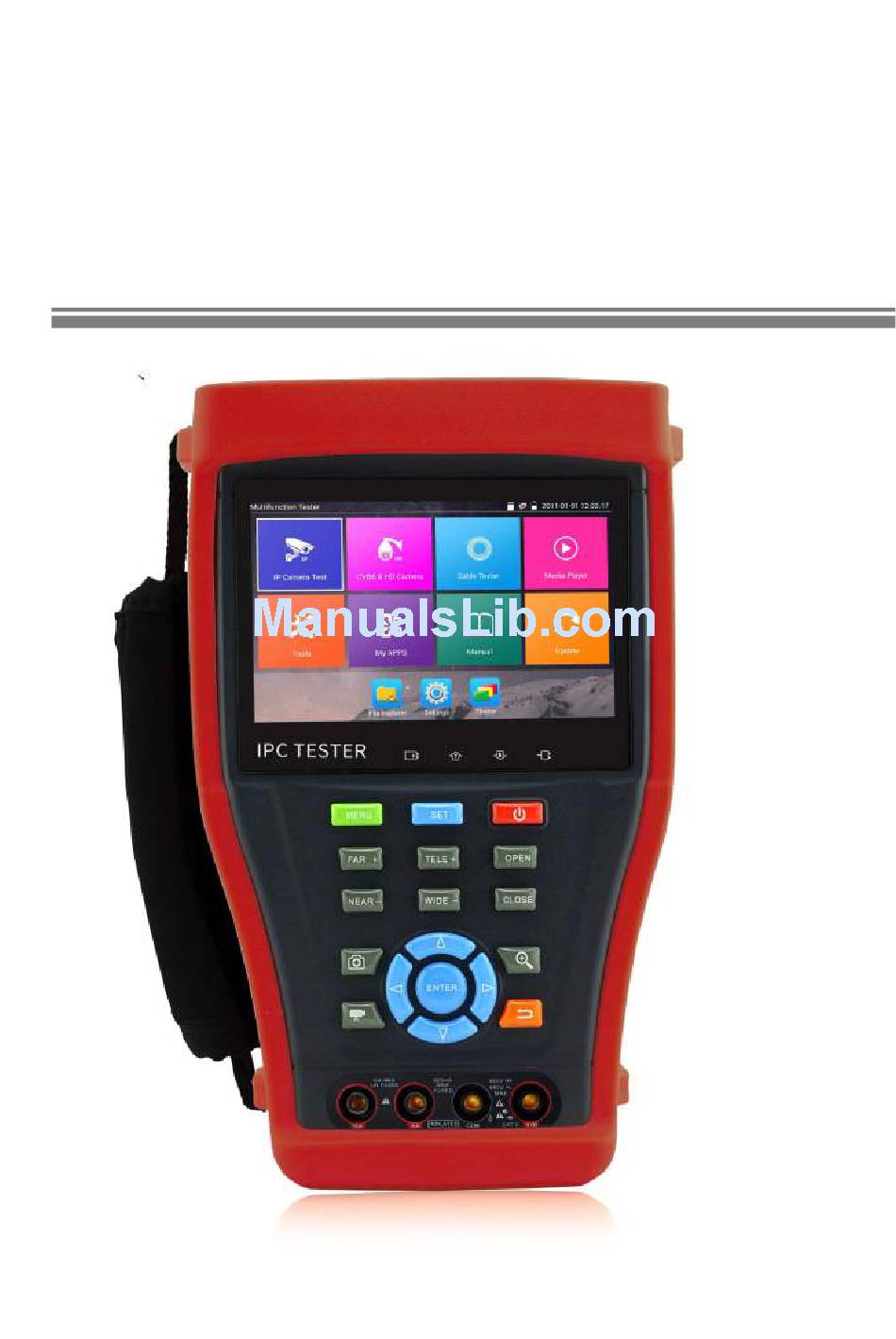

Page 1 IP camera tester User Manual （V01.00）...
Page 2 Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period.
Page 3: Table Of Contents
Content 1 .Safety information--------------------------------------------------------------------------------------------------1 2. IP Camera Tester Introduction------------------------------------------------------------------------------------2 2.1 General------------------------------------------------------------------------------------------------------- 2 2.2 Features------------------------------------------------------------------------------------------------------ 2 2.3 Packing list---------------------------------------------------------------------------------------------------6 2.4 Function interface-------------------------------------------------------------------------------------------7 3. Operation-----------------------------------------------------------------------------------------------------------11 3.1 Installing the Battery--------------------------------------------------------------------------------------11 3.2 Instrument connection------------------------------------------------------------------------------------ 12 3.2.1 IP camera connection----------------------------------------------------------------------------------- 12 3.2.2 Analog camera connection-----------------------------------------------------------------------------13 3.2.3 HD Coaxial camera connection----------------------------------------------------------------- 14 3.2.4 HDMI IN ( *Optional )---------------------------------------------------------------------------15 DVR or other device’s HDMI in port connect to tester’s HDMI in port, the meter will display...
Page 4 3.3.11 Video monitor test------------------------------------------------------------------------------- 45 3.3.12 Color-bar generator (TV OUT)---------------------------------------------------------------- 53 3.3.13 SDI Camera Test ( *Optional )-------------------------------------------------------------- 54 3.3.14 CVI camera test ( *Optional )--------------------------------------------------------------- 55 3.3.15 TVI camera test ( *Optional )----------------------------------------------------------------61 3.3.16 AHD camera test ( *Optional )-------------------------------------------------------------- 63 3.3.17 Network tool------------------------------------------------------------------------------------- 65 （1）IP address scan------------------------------------------------------------------------------------65 （2）PING Test----------------------------------------------------------------------------------------- 65...
Page 5 3.3.33 RTSP Player--------------------------------------------------------------------------------------96 3.3.34 Hik test tool---------------------------------------------------------------------------------------97 3.3.35 Dahua test tool----------------------------------------------------------------------------------100 3.3.36 Update------------------------------------------------------------------------------------------- 103 3.3.37 Office-------------------------------------------------------------------------------------------- 104 3.3.38 LED Flashlight--------------------------------------------------------------------------------- 104 3.3.39 Browser------------------------------------------------------------------------------------------105 3.3.40 Notepad:----------------------------------------------------------------------------------------- 105 3.3.41 System Setting----------------------------------------------------------------------------------106 3.3.42 File explorer------------------------------------------------------------------------------------ 110 3.3.43 Theme--------------------------------------------------------------------------------------------112 3. 4 Audio test------------------------------------------------------------------------------------------------ 114 3.5 PoE power output---------------------------------------------------------------------------------------- 115 3.7 DC12V 2A power output------------------------------------------------------------------------------- 116 4.
Page 6: Safety Information
1 .Safety information ◆ The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆...
Page 7: Ip Camera Tester Introduction
◆Never connect the meter with any voltage source while the function switch is in the current, resistance, capacitance, diode, continuity, otherwise it will damage the meter. ◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully. ◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Page 8 RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation  reflectivity, impedance, skew and other parameter. Screen capture, long press the key “enter”, can capture screen interface and save it in any time  12V power input test ...
Page 9 ONVIF camera test, support 4K.  It is used unique hardware decoding, display image from the 4K camera via mainstream. You can select sub-stream to test higher resolution camera ONVIF IP camera video testing.  Compatible with H.265/H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and ...
Page 10 Optical power meter, test fiber loss and value * (Optional)  Digital Multi-meter , DC and AC voltage measurement, Resistance measurement Continuity test,  Diode measurements, Capacitance measurement * (Optional) Video level meter PEAK video signal level, SYNC signal level, Color burst chroma level ...
Page 11: Packing List
2.3 Packing list 1). Tester 2). Adaptor DC12V 2A 3) Network cable tester 4) Polymer lithium ion battery (7.4V DC 5000mAh) 5). BNC cable 6). RS485 cable 7). SC,ST connector（Only for optical power meter） 8). Multi-meter test leads one pair of red and black (only for the Multi-meter models) 9).
Page 12: Function Interface
2.4 Function interface Page.7.
Page 13 Press more than 2 seconds, turn on or off the device ,short press to turn on or off the menu display Set key Menu key Near focus: Focus the image nearby Far focus: Focus the image faraway TELE: zoom in the image WIDE: zoom out the image Open/set ,Confirm the setting of parameters, open or enlarge the aperture Return/Close : Return or cancel while setting parameters of the menu, close or...
Page 14 The power indicator: it lights green while the tester is powered on by the adapter The data accepted indicator: it lights red while the data is being received The RS485/RS232 data transmission indicator: it lights red while the data is being transmitted The charge indicator: it lights red while the battery is being charged.
Page 15 RS485 Interface: RS485communication for the PTZ RS232 Interface: RS232 communication for the PTZ"HD IN" , AHD /TVI/CVI Coaxial interface (Optional ) DC12V2A power output , for provisional DC power supply TDR cable test interface LED lamp SDI input (BNC interface) (Optional) HDMI input Video image signal output（BNC interface）/cable tracer interface (Optional) Video image signal input（BNC interface）/ AHD,CVI and TVI input (BNC interface)
Page 16: Operation
3. Operation 3.1 Installing the Battery The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.
Page 17: Instrument Connection
3.2 Instrument connection 3.2.1 IP camera connection Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester’s LAN port, if the link indicator of the tester’s LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are communicating.
Page 18: Analog Camera Connection
IN” port, otherwise will damage the tester. 3.2.2 Analog camera connection (1) Connect the camera's video output to the IP tester’s VIDEO IN. The image will display on the tester after pushing the PTZ icon (2) CCTV IP Tester “VIDEO OUT” interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note positive and negative connection of the cable).
Page 19: Hd Coaxial Camera Connection
3.2.3 HD Coaxial camera connection * SDI, CVI, TVI, AHD camera are classified as HD coaxial cameras. Hereby the following instruction of how to connect SDI camera to the tester is also applied to CVI, TVI, and AHD camera. (1) Connect the SDI camera's video output to the IP tester’s “SDI IN” interface, the image will display on the tester.
Page 20: Hdmi In ( *Optional )
3.2.4 HDMI IN ( *Optional ) DVR or other device’s HDMI in port connect to tester’s HDMI in port, the meter will display input image 3.3 OSD menu Press the key 2 seconds to turn on  Press the key 2 seconds to turn off ...
Page 21: Normal Mode
 In Lite mode, Press the icon several seconds, can move the icon to other apps  In lite mode, click the finger icon in the lower right corner to release lock icon, move icons and change function icons sequence. Normal mode ...
Page 22 In normal mode, press icon several seconds, go screen management status. Change icons sequence and move it to common tools bar. You can move the icon to any pages,self-define the number of icons in any page. Make interface sample and individuality. Page.17.
Page 23 Create New Folder: Drag the icon to the folder in top right corner, enter the folder name. Icon will be auto placed in the new named folder. Press the folder several seconds, to change the folder name, you can move the icon out of folder, the folder will be auto deleted until move out all icons.
Page 24: Drop-Down Menu
3.3.2 Drop-down Menu Press and slide at right top right corner twice to open shortcut menu. The shortcut menu includes POE power output, IP settings, Wi-Fi, HDMI IN, CVBS, Video OUT, LAN, Brightness, settings etc. HDMI: Click HDMI IN to enter,In HDMI IN mode, it can converter test from analog to digital with dual test window IP &...
Page 25: Short Cut-Menu
3.3.3 Short cut-menu You can call shortcut –menu by press tester’s “menu” key, you can self- define shortcut -menu Press the key“ ”, you can turn on it and switch functions, then press to enter app, tap other area on the screen, to exit the menu Short cut-menu setting, you can long press any app in the all applications list ,it will auto move to shortcut menu .
Page 26: Screen Capture
3.3.4 Screen capture long press the key “enter”, can capture screen interface and save it in any time. You can go file management to view “file management –sdcard- Pictures—Screenshots 3.3.5 TesterPlay Mobile screen projection (Only for android version) The meter creates WIFI hotspot, connect mobile phone to the tester’s WIFI hotspot, or the tester and mobile phone connect to the same Wi-fi network.
Page 27 PC screen projection： Install VLC player in the PC, turn on the VLC player "Media - Open Network Streaming", and input the RTSP address of on the top instrument two-dimensional code, click "play" to view the screen real-time projection. Page.22.
Page 28: Rapid Video
video 3.3.6 Rapid Press enter function, One key to detect all network cameras and auto play the images. Auto log in and display camera image. Detailed operation refer to ONVIF function Page.23.
Page 29: Ip Discovery
After exit ONVIF app, Click Refresh to search ip address. 3.3.7 IP discovery Press IP discovery ,tester auto-scan the whole network segment IP, as well as auto-modify the tester‘s IP to the same network segment with the scanned camera's IP. Local IP：...
Page 30: Rapid Onvif Test
Discovery IP： Connected tester equipment’s IP address. If the camera connected to the tester directly, tester will display the camera’s IP address, if tester connects to Local Area Network, it displays the current IP address. Temp IIP：A fter searching IP address, the modified tester’s IP address will not be saved, if you do not select “Temp IP,”...
Page 31 If you select ONVIF Rapid mode, the meter automatically scan different network segments for ONVIF cameras. It lists the camera name and IP address on the Device List. Tester can auto login camera and display camera image. Click the button “Refresh”, tester will scan the ONVIF camera again. Click the newly displayed ONVIF camera on the “Device List“.
Page 32 Enter a new password for the camera When comes out “activate success” prompt, click login to display camera image. Pop-up settings menu when click the “ONVIF setting ”icon in the upper left corner Page.27.
Page 33 Across network segments scan: After open this function , enter “Setting”-“IP Settings”-“Advanced”to add other network segments IP, Rapid ONVIF function can across network segments to scan camera’s Auto Login : After open this function, tester can auto login camera and display camera image (The login password is the same with last time, the first time using password is the default password "admin") Video transmission protocol: UTP and TCP protocol...
Page 34 While in the “Live video” menu, click “Video Menu” at the top right of the image to access the following tools: Snapshot, Record, Photo, Playback, PTZ and Settings ONVIF PTZ control: Tap the image in the direction you want the PTZ camera to move. Tap the left side of the image to move left, right to go right, up to go up and down to go down.
Page 35 IP camera video settings: Click “Video Set” to enter the IP camera’s encoder and resolution settings. Make the desired changes and click “OK “to save. Image setting: Click “Imaging Set” to adjust image brightness, saturation, contrast, sharpness and backlight compensation mode. Page.30.
Page 36 Profiles：Click “profiles"，can view video streaming current configuration files, as well as switch between Major stream and minor stream . Preview pictures：Quickly preview and zoom in or out pictures, automatically and manual refresh Page.31.
Page 37 Identification: click “Identification” to view information of the camera Time set: click “Time set”, Select " Manual set" to set up the time of camera Maintenance: For camera software reset or restore to factory settings. Page.32.
Page 38 User Set: Modify camera user name ,password etc parameters Network setting：Click “Network Set “to change the IP address. Some cameras cannot support change IP address, so there is no change after saving. Page.33.
Page 39 Zoom in image :press the key to enter the zoom mode. Press it again to exit zoom mode.When the image is enlarged tap left, right, up or down on the image to move the whole image on the screen When the image is enlarged, if not operate on touch screen, it can operate by the keyboard ,press the to zoon in , press the key to zoom out ,press upward and downward key to move image.
Page 40 Snapshot：Click bottom “snapshot” to screenshot the image and store it to SD card. if select manual storage, appears dialog box “Input Name” , user-defined the files name(by Chinese character, English letter ,or digit ) to save in SD card, if select “Auto- storage”， the tester auto stores the files after snapshot.
Page 41 To rename or delete a photo, click and hold on the file until this screen appears: Video files can play in the Video player on the main menu. Set preset position :Move the camera to preset position, enter the preset number on the Bottom right corner to complete position preset.
Page 42 PTZ Speed set : Horizontal and Vertical Speed set RTSP: Get RTSP address of the current camera Doc: Auto generate test reports document of camera, click "Create document”. Click Preview to view the report document Page.37.
Page 43: Ip Camera Test
Enter the camera test information, click "Create Document" to complete the report. click doc menu again, you can preview the report document. Icons description: the description of function icons on the bottom toolbar 3.3.9 IP camera test Display image from the 4K H.265 camera by mainstream Click icon to enter IP camera test Note: Currently, the IPC Test App only supports some brands’...
Page 44 not fully integrated, please use the ONVIF or RTSP apps. IPC test interface Local IP: This is the tester’s IP address. Click “Edit“ to enter “IP setting“ and change the tester ‘s IP address settings IP camera type : Click on the IP Camera type to select the Manufacturer and model number of the integrated IP camera Manual：...
Page 45 Stream code: When test camera via RTSP, you can select mainstream or sub stream to test (if camera’s RTSP have not been start or without, it will tip “auto match fail, please witch to manually selecting IP Camera's IP: Enter the IP camera’s IP address manually or click “Search” to auto-scan for the IP camera’s IP address.
Page 46: Hdmi In ( *Optional )
If IP address setting has error or IP camera is not connected.. The tester prompts “Network Error” Click to quit from image display and return to IP camera test interface. Once you are viewing video on the IPC Test app, you will see the “Video Menu” icon on the top right.
Page 47 for the snapshot. If the unit is set up to automatically set file names, this box will not pop up. (2) Video record When you click the “Record” icon, video starts recording. A red recording icon appears on the screen and begins to flash and a timer appears indicating the time elapsed for the video.
Page 48 (3)Photo Click the icon “photo” to enter, click the selected thumbnail photo to display it on the screen. Double-tap the image you want to view to make it full screen. Double-click again the photo to return. To rename or delete an image, click and hold on the file until this screen below appears Click to close and return to PTZ controller.
Page 49 (4) Recorded video playback Click the “Playback” icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears: Video files also can play in the main menu “Video Player". Page.44.
Page 50: Video Monitor Test
3.3.11 Video monitor test Analog camera test and PTZ control, click icon to enter Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including “Photos”, “Snapshot” , “Record”...
Page 51 A. Protocol Use the up and down arrow keys to move the yellow cursor to the “protocol ”, set corresponding Protocol and support more than thirty PTZ protocols. Such as Pelco-D,Samsung,Yaan,LiLin,CSR600,Panasonic,Sony-EVI etc. B. Port Click and move, to “port” Select the communication port for the PTZ camera controlling (RS485) C.
Page 52 PTZ Control: Press the key control the PTZ direction of rotation Press the key , to switch on or turn off the aperture. Press the key , adjust the focus manually Press the key , manually adjust the zoom 2) Video and storage setting Click icon “set”,to enter and set analog video image brightness , contrast, color saturation, as well as the file storage way after snapshot and recording, support auto-storage and manual storage.
Page 53 If not use touch screen to operate, press the key to zoom out , press the key zoom in, press upward and downward key to move the image For analog video input, as the resolution is 720*480, it is normal that the zoom in image is not clear.
Page 54 (5) Video record When you click the “Record” icon, video starts recording. A red recording icon appears on the screen and begins to flash and a timer appears indicating the time elapsed for the video. Click on the “Record” icon again to stop recording and save the video file to the SD card. if select manual storage, before recording begins ,appears dialog box “Input Name”...
Page 55 To rename or delete an image, click and hold on the file until this screen below appears. (7) Recorded video playback Click the “Playback” icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears: Page.50.
Page 56 Video files also can play in the main menu “Video Player". (8) Video level meter Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and processing technology, can perform both NTSC and PAL video amplitude signal measurements for PEAK to PEAK, SYNC levels and COLOR BURST chroma level.
Page 57 Video signal level 140±15IRE NTSC Chroma level( COLOR BURST) 40±5IRE SYNC signal level 40±5IRE Video signal level 1000±200mV Chroma level( COLOR BURST) 300±35mV SYNC signal level 300±35mV Video signal PEAK to PEAK level: For NTSC format, the video signal level is 140±15IRE For PAL format, the video signal level is 1000±200mV If the level is too low, it will cause the image to lose quality and limit the distance it will travel over cable.
Page 58: Color-Bar Generator (Tv Out)
3.3.12 Color-bar generator (TV OUT) Click to enter, the tester sends the color bars from the “Video out” port ,Click the icon “PAL”, select “PAL/NTSC” output formats. Click the selected color-bars, testing image or single bar ( red, green, blue, white or black). Double click to full display on the screen and output, click to return main menu.
Page 59: Sdi Camera Test ( *Optional )
BNC loop test: Tester can send and receive color bar generator through the tester’s “video out and video in” port, it is for testing transmission channels, such as video Optical, video cables etc. The tester “VIDEO OUT” port to connect optical terminal’s sending port, and “VIDEO IN” Port to optical terminal’...
Page 60: Cvi Camera Test ( *Optional )
The tester supports resolution as follows: 1280x720P 25Hz 1280x720P 30Hz 1280x720P 50Hz 1280x720P 60Hz 1920x1080P 25Hz 1920x1080P 30Hz 1920x1080I 50Hz 1920x1080I 60Hz IPC tester’s HDMI output port can be use as SDI to HDMI converter, output HD SDI image to HD TV monitor.
Page 61 When HD CVI signal input, the tester will display the image resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows 1280x720P 25FPS / 1280x720P 30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS （1）PTZ control 1.1 Coaxial PTZ control...
Page 62 Enter PTZ address to perform parameters setting Operation instructions, please refer to “3.3.1 PTZ (1) Video monitor test” The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC tester can test .After setting the parameter, the tester can control the PTZ and lens. To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction, PTZ cameras will rotate accordingly.
Page 63 PTZ Control: Press the key control the PTZ direction of rotation Press the key , to switch on or turn off the aperture. Press the key , adjust the focus manually Press the key , manually adjust the zoom Set preset position: Move the PTZ camera to the preset position, the Tap it and input preset position number.
Page 64 1.2 RS485 control Operation instructions, please refer to “3.3.1 PTZ (1) PTZ control parameters setting” （2）Coaxial camera menu setting Tap icon “UTC””, select “menu setting” to enter the dome camera menu Input calling dome camera menu address code, after finishing the parameter settings, you can press the or click the icon to call the dome camera menu.
Page 65 Press arrow keys to set (3) Snapshot, record, photo viewer and video play back, please refer to “3.3.1 PTZ (1) Video monitor test”.Tap “close menu” or press the key “ ”to close camera menu Page.60.
Page 66: Tvi Camera Test ( *Optional )
(4) Save setting Click icon “Set” on the right toolbar to enter storage setting. Support auto-storage and manual storage. When select manual storage, user can name and store the files. 3.3.15 TVI camera test ( *Optional ) HD TVI camera, TVI dome camera test and PTZ control, Click icon to enter When HD TVI signal input, the tester will display the image resolution on the top bar.
Page 67 1280x720P 25FPS / 1280x720P30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS / 1920x1080P 50FPS / 1920x1080P 60FPS Coaxial camera menu settings Tap icon “UTC”, select “menu setting” to enter the dome camera menu Input calling dome camera menu address code, after finishing the parameter settings, you can press the or click the icon to call the dome camera menu Page.62.
Page 68: Ahd Camera Test ( *Optional )
More operation instructions (such as PTZ control, coaxial camera menu setting ,snapshot, recording and playback etc), please refer to“3.3.6 CVI camera test” 3.3.16 AHD camera test ( *Optional ) AHD camera, AHD dome camera test and PTZ control, Click icon to enter When AHD signal input, the tester will display the image resolution on the top bar.
Page 69 The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P 30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS (1) Coaxial PTZ control UTC control : select “PTZ control or PTZ control-2”(AHD camera has two different order ,if select “PTZ” cannot control , pls go “PTZ-2” ) If to coaxial PTZ control the AHD camera, no parameters setting is needed.
Page 70: Network Tool
3.3.17 Network tool （1）IP address scan Connect the cable to the LAN port, click icon to enter, Set your IP address search range by changing the Start and End IP addresses. Click the “Start” button to scan the IP address range. You can also input an IP address in the Port Number Scan to scan for open ports.
Page 71: 3）Network Test (Ethernet Bandwidth Test)
Application: PING testing is the most conventional network debugging tools. It is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct. It’s normal that the first data packet will be lost when test start. （3）Network test (Ethernet bandwidth test) Network test (Ethernet bandwidth test) To use the Network tester, you will need two IP testers.
Page 72 b). Start send packet test: Using the other IP tester, type in the Server's IP address at the top right corner of the screen. This app is used to send packets for network speed testing. Click the “Start” button to send the packets and start testing. Network bandwidth testing can also be tested with a computer using compatible network bandwidth testing software.
Page 73 “Start” to test network bandwidth. Or use tester as a Server, computer as test Client（select Client, input tester’s IP address to test） When use tester as Server, shows results: Page.68.
Page 74: 4）Port Flashing
（4）Port Flashing Connect a network cable to the meter’s “LAN” port, click the icon to open the Port Flashing app. Click “Start”. The IP tester sends a unique signal to make the connected LAN port of the switch flash. If the tester and PoE switch are connected well, the LAN port of POE switch flash at special frequency, If not, no any changes on the LAN port Application: The tester will send special signals to make the connected LAN port flicker at special frequency, which...
Page 75: 5）Dhcp Server
（5）DHCP server Click on the DHCP icon to open the DHCP server app. Select the “Start” check box at the top and make any desired changes to the network settings. Click “Save” to start assigning dynamic IP addresses for IP cameras and other networked devices. Click the “Refresh” button to check your Client list. （6）Trace route It is used to determine path of the IP packet access target.
Page 76: 7）Link Monitor
Click “start” to trace the goal address （7）Link monitor Click the icon to open the Link Monitor app. This app is used to see if an IP address is occupied by other network devices. This will avoid new address conflicts Click “Add”...
Page 77: Rapid Ip Discovery
Application: Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will result IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied. 3.3.18 Rapid IP Discovery Connect the cable to tester’s LAN port.
Page 78: Cable Test
Note: 1. Don’t input power into the “DC12/2A OUTPUT” port. 2. Don’t output this DC12V/2A power to the DC12V/IN port of the IP camera tester to avoid destroy 3. The IPC tester power output is close to 2A, if the IP camera’s power is over 2V, the tester will auto enter protection mode.
Page 79: Rj45 Cable Tdr Test
Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed.
Page 80 Single test: Test cable status, length and attenuation. Repeat test: Continue to test cable status, length and attenuation. Status: After link up, screen display “online”, if not link up or open circuit, screen display ”open circuit”, if cable pair is short circuit, screen display “short circuit” Length: The max test length is 180 meters, when cable is open circuit or short circuit, can test the cable length, if screen display “online”, the testing result would be not accurate.
Page 81 Cable sequence diagram: A straight- through and cross-over cable diagram, the cable sequence display for reference Click “Help”, check the instruction of all parameters. Page.76.
Page 82: Cable Search ( *Optional )
3.3.22 Cable Search ( *Optional ) Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the bottom. Click icon to enter, click the Number on the screen to adjust audio type. Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all the cables in the bundle .
Page 83: Tdr Cable Test ( *Optional )
negative pole -, otherwise will damage the tester. Note: While the cable tracer tester is receiving the audio signal from the tester, it may be influenced by other signals and make some noise. 3.3.23 TDR cable test ( *Optional ) Note: The testing cable can’t be connected to any equipment;...
Page 84 User-defined calibration: Choose the cable 100 meters to 200 meters (more than 50 meters) , click “Cable” , “Type” to select user-defined 1 for calibration, 11 groups user-defined can be set. 1.Select user-defined and click “Calibration “to enter test , click “user-defined 1”can define cable name,such as:AiPu BNC-5 2.
Page 85 3.Click “+”or“-” to adjust wave speed ,while display length is the same with the actual Length ,click “Save“to save calibration data . It can be used for the same cable testing next time. Application:TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is open circuit or short-circuit, reflected pulse is generated, the tester receives and deals with the reflected wave, measurement results displayed on the screen.
Page 86: Poe Voltage Test
3.3.24 PoE Voltage test Click icon to enter PoE voltage measurement Connect a network cable from a PoE switch to the IP tester’s PSE IN port. Connect an IP camera or other PoE using node to IP tester’s LAN port, the PoE voltage and the cable’s pin connection status show on the screen.
Page 87: Power Input Test
3.3.25 12V power input test Connect 12V power adaptor to tester’s charging port, then click icon “PoE” to enter voltage measurement app ,screen show the current adaptor input voltage and power. Note: the current 12V input measured power is the battery charging power and the device working power,the measured power will change depending on the different of battery power and backlight brightness.
Page 88: Digital Multi-Meter ( *Optional )
3.3.26 Digital Multi-meter ( *Optional ) Click icon to enter 1) SYMBOLS: U:DC Voltage Measuring A:DC Current Measuring Ω:Resistance Measuring :Diode Testing :AC Voltage Measuring :AC Current Measuring :Continuity Testing :Capacitance Measuring AC/DC Voltage and current measurement state display Auto- range The Multimeter auto adjust the range by input signal or tested components Data hold Hold data...
Page 89 DC Voltage Measuring WARNING! You can’t input the voltage which more than 660V DC, it’s possible to show higher voltage, but it’s may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage. a. Connect the black test lead to the “COM ” jack and the red test lead to the “V/Ω” jack. b.Select , enter the DC voltage measurement.
Page 90 00.00V  66.00V range 000.0V  660.0V range 000.0mV  660.0mV range C. DC Current Measuring (only manual range ) WARNING! Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement. a. Connect the black test lead to the “COM ” jack and the red test lead to the “mA” jack for a maximum of 660mA current.
Page 91 the operator. D. AC Current Measuring (Only Manual range) WARNING! Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement. a. Connect the black test lead to the “COM” jack and the red test lead to the“mA”...
Page 92  In“ AC ” mode, only can input “AC ”, if not, will damage the meter. E. Resistance Measuring WARNING! When measuring in-circuit resistance, be sure the circuit under test has all power removed and that all capacitors have discharged fully. Ω...
Page 93 G. Diode Testing WARNING! The capacitance of a capacitor should be tested separately, should not test in the installation of circuit. a. Connect the black test lead to the “COM” jack and the red test lead to Ω the “V/ ”...
Page 94 00.00uF 66.00μF range  000.0uF 660.0μF range  0.000mF 6.600mF range  00.00mF 66.00mF range  d. Before connect test leads across two sides of the capacitor under measurement, be sure that the capacitor has been discharged fully. Note: The capacitance of a capacitor should be tested separately, should not test in the installation of circuit.
Page 95: Optical Power Meter ( *Optional )
Click “Hold data” to enter, the data be hold, the value is green. Press it again to quit. Relative value measurement Click “Relative “to enter, the tester Auto-save the data, the displayed new measurement and relative value is red color. Press it again to quit The hold function and the relative value be combined use, the display value is yellow The meter protection ...
Page 96 alcohol. Data hold While testing, click “Hold” to data hold, the data will not change. It’s convenient to read. Press again to quit. Relative power value (optical link loss) measurement While testing, set the wavelength for measurement. Click “relative”(difference) to test, the tester Auto save current fiber power value as the base reference value.
Page 97: Visual Fault Locator ( *Optional )
Data hold and Relative measuring use together, the data is yellow while the function is effect. 3.3.28 Visual Fault Locator ( *Optional ) Click icon to enter VFL four status can select——“Steady mode”, “Evasive 1Hz”,“Evasive 2Hz”and“Time off”. Click button “Steady mode” to enter steady status, click button “Evasive 1Hz” and “Evasive 2Hz, to enter Page.92.
Page 98 pulse mode, click button “Time off”, VFL is turned off. Timed turn off can select (5 mins, 10 mins, 30 mins, 60 mins and 120 mins). Click” Steady mode”, red laser source emits steady, click again to quit. Click icons “Evasive 1Hz”or“Evasive 2Hz”to enter pulse mode, the red laser source is emitted by a certain frequency, press it again to quit Page.93.
Page 99: Audio Record
3.3.29 Audio Record Connect an audio device to the IP tester’s audio input port. Click the icon to enter the Audio Recorder app. Click the red button to stop, and the unit will prompt you to save the recording 3.3.30 Data monitor Pls click icon to enter Click “Setting”...
Page 100: Audio Player
3.3.31 Audio player Click the icon to enter . The audio player only supports MP3 format Audio files. 3.3.32 Media Player Click the icon to enter The Media player can browse video and image files. It supports the video formats of MP4, H.264, MPEG4, and MKV.
Page 101: Rtsp Player
appears. You can then rename or delete the file by pressing the desired option. 3.3.33 RTSP Player The RTSP Player app will allow you to view the RTSP video stream from an IP camera. If you were unable to view your camera via the ONVIF or IPC Test apps, it is possible your camera will have an RTSP stream and you can view live video.
Page 102: Hik Test Tool
Local IP: This is the IP testers IP address. RTSP Add: This is where you can manually enter the IP camera’s RTSP URL or click on Search to search the network for cameras that use an RTSP stream. IPC Username: Enter the IP camera’s user name. IPC Password: Enter the IP camera’s password.
Page 103 2.Input password：Input new password, tap “ok” to activate 3. Confirm activation After activating the camera, the program default modifies the camera IP. Activated multiple cameras in the local area Network, and pop-up menu to modify IP, improve project efficiency. Page.98.
Page 104 Play: display image from the camera Modify network information: Change the camera IP address, subnet mask and gateway etc. Modify user information: Modify the camera's user name and password. Factory Reset： Camera factory reset Page.99.
Page 105: Dahua Test Tool
3.3.35 Dahua test tool Dahua test tool is developed for installation and debugging of the Dahua IP camera, it can display image, and modify IP, user name and password etc. Making Dahua camera test more convenient and quickly. Click “DH” icon , to enter Dahua test tool.
Page 106 Pop up stream menu, select mainstream or second stream to test If the camera not supports non-verification login, pls select “camera” of online detection menu, and input correct user name and password, then click “log in”. After logging successful, you can test it. Play: select mainstream or seconded stream, IP camera live video display Page.101.
Page 107 Modify network information: modify camera parameter, such as ip address, subnet mask, gateway etc. Modify user information: modify camera user name and password, which is onvif, Dahua test tool, IPC TESTE user name and password, not web user name and password. Page.102.
Page 108: Update
Factory reset setting: camera will be soft reset, and the device’s user name, password and network set be saved. Other settings information is factory reset. 3.3.36 Update Copy the downloaded update file to SD card "update" directory, if no directory, please create one. Click the icon to open the Update menu.
Page 109: Office
If there are update programs, applications will be listed in the interface, click related applications, update to the latest version. 3.3.37 Office Quick office app (support excel, word, ppt format) doc. editable 3.3.38 LED Flashlight It is convenient for the installation or maintenance in the evening or in the dark. Click icon enter While in the flashlight app, click the red button to turn on the LED lamp.
Page 110: Browser
will stay on. Click the Time Setting button to set a timer that will shut off the lamp. 3.3.39 Browser Click icon to enter Type in the camera’s IP address and press “Go” to access the IP camera’s interface. NOTE: You will not be able to view live video in the web browser. For viewing video, use the IP tester‘s live camera view Apps The IP camera and IP tester be on the same network segment for the browser to interface with the camera.
Page 111: System Setting
pls click to view the notepad , all saving contents display. Click each record bar to show the details. Press the record bar for several seconds, prompt whether delete it 3.3.41 System Setting Click icon to enter Language: Select your desired language: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese Typewriting: You can select typewriting or install other typewriting: Page.106.
Page 112 Date/Time: Set the Date/time of the IP tester IP setting: Manually set the IP address, Subnet Mask, Default Gateway and DNS address or select “Dynamic allocation” to use DHCP. WLAN Net: Turn WiFi off or on by pressing the “Open the wifi” button. Once WiFi is turned on, click connected WIFI, it will scan for wireless networks in your area.
Page 113 Select and press “WIFI” several seconds, to set static IP address Wi-Fi hotspot: input “SSID” name and “password”, and then click “ok”to create Wi-Fi hotspot. Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings. Volume: Set volume level SD Card: Displays SD Card Capacity.
Page 114 Start the FTP server and then input the tester’s FTP address in the PC’s address bar. This will enable the PC to read ,copy and edit the files from the SD card without the use of SD card reader. Version information: Shows applications version information, if press any apps icon several seconds to uninstall Screen display rotation::Click on “Screen Rotation”...
Page 115: File Explorer
Lock Screen: The meter default is not locked. You can choose password Lock screen, pattern Lock screen or “NO” Password Lock Screen: Set password, you can input digitals, letters or characters as password, input it again to confirm .when the meter is in standby mode or turn it on, you can input your password to enter. Pattern Lock Screen: Drawing a pattern to lock.
Page 116 Browse It includes Music, Videos, Pictures, Documents, zip file etc. It is convenient to view and manage FTP server You can choose internal or external SD card. Other operation details, Pls refer to FTP settings Page.111.
Page 117: Theme
3.3.43 Theme Click Theme icon to enter themes setting. Desktop style : you can select Lite mode or normal mode. Theme: Pressing square area’s any color icon several seconds, the selected color icon will be auto move the rectangle area, if you press selected color several seconds, and it will be auto deleted Theme colors include fixed order and random order, and click “set”...
Page 118 After finished color setting, click “set” to set it as desktop or application background. Set as desktop background: Setting color as desktop background Set as application background: Set color as application background Set at the same time: Setting color as desktop background and application background. Cancel: Cancel current setting.
Page 119: Audio Test
Sliding effect: Tester’s sliding effect includes stereo effect, folding effect, Left and right folding, rotate effect, Ombre effect etc, selecting one of effect to view slide effect in the square area, and click “set” to save 3. 4 Audio test You can test the audio input from audio pickup devices by connecting the audio pickup device to the IP tester with the supplied audio cable.
Page 120: Poe Power Output
3.5 PoE power output The IP tester supports PoE (Power over Ethernet) output to an IP camera via the LAN port. Data transmission and 48VDC use the network cable’s 1, 2, 3, and 6 pins to deliver power. If the IP camera supports PoE, you can directly connect to the camera without the use of an external power supply.
Page 121: Dc12V 2A Power Output
3.7 DC12V 2A power output When the IP tester is turned on, the DC 12V power output ON by default. The smaller end of the supplied converter cable connects to the tester’s DC12V/2A OUTPUT and the other end connects to the camera’s power input.
Page 122 auto enter protection mode. Disconnect all the connections of the tester and then connect the tester with power adaptor to resume the tester. Make sure the tester has a sufficient charge otherwise the tester will not able to provide enough output power 3.8 USB 5V 2A power output When the tester is turned on, the 12VDC and 5VDC power output functions are automatically turned on.
Page 123: Specifications
4. Specifications 4.1 General Specifications Model IP Camera Tester IPC-4300 Plus【*】models Optional Display New 4.3 inch IPS touch screen cctv tester 960x540resolution Network port 10/100M auto adjust, RJ45 Built in WIFI,speeds150M, allows you to connect to a wireless network and...
Page 124 * (Optional) 25/30/50/60,1080p 25/30/50/60,1080i 50/60 1 channel CVI input（BNC interface, resolution support 4MP CVI camera CVI video signal test * test,2560x1440P25F/30F,1080p 25/30fps ，720p 25/30/50/60fps,UTC （Optional） control and call OSD menu 1 channel TVI input（BNC interfce）,resolution support 5MP TVI camera TVI video signal test test，2688x1520p 15fps，2560x1944P12.5FPS, 2048x1536p 18fps，1080p （Optional）...
Page 125 Support RS232/RS485 control, Baud 600-115200bps, Compatible with PTZ control more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc Output one channel PAL/NTSC color bar video signal for testing monitor or Color bar generator video cable.(red, green ,blue, white and black color ) Test UTP cable connection status and display on the screen.
Page 126: Multi-Meter Specifications
Rechargeable After charging 5~6 hours, normal working time 10 hours Parameter Capacitive touch screen, OSD menu, select your desired language: English, Operation setting Chinese, Korean, Russian, Italian or Polish, etc Auto off 1-30 (mins) General Working -10℃---+50℃ Temperature Working Humidity 30%-90% Dimension/Weight 240mm x 154mm x 46mm / 620g...
Page 127 6.600V 66.00V ±（0.8%+6） 10mV 660.0V 100mV DC current Range Accuracy Resolution 6.600mA 66.00mA ±（0.5%+3） 10uA 660.0mA 100uA 10.00A ±（1%+5） 10mA AC current Range Accuracy Resolution 6.600mA 66.00mA ±（0.5%+3） 10uA 660.0mA 100uA 10.00A ±（1%+5） 10mA Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±（0.8%+5）...
Page 128: Optical Power Meter Specifications
Continuity Range Resolution Function The measurement value less 30Ω±3Ω,the tester will 660.0Ω 0.1Ω sound Diode Range Resolution Function Schottky diode:0.15~0.25V 2.0V rectifier diode:0.6~1.0V triode PN junction:0.5~0.8V Capacitance Range Accuracy Resolution 6.600nF ±（0.5%+20） 66.00nF 10pF 660.0nF 100pF ±（3.5%+8） 6.600μF 66.00μF 10nF 660.0μF 100nF 6.600mF...
Page 129: Visual Fault Locator Specifications
Detector InGaAs ＜±3%dB(-10dBm,22℃) ＜±5%dB(full range,22℃) Uncertainly Display Resolution Linear:0.1% ; Nonlinear:0.01dBm Operating Temperature(℃) -10～+50 Storage Temperature (℃) -20～+70 Connector type FC/PC 4.4 Visual fault locator specifications Laser type Wavelength Calibration 650nm Output power 5mW（Optional 10mW,20mW） Modulation mode CW/1Hz/2Hz Measurement Range 5KM（Optional 10-20KM）...
