Summary of Contents for A-Designs Hammer 2 EQ

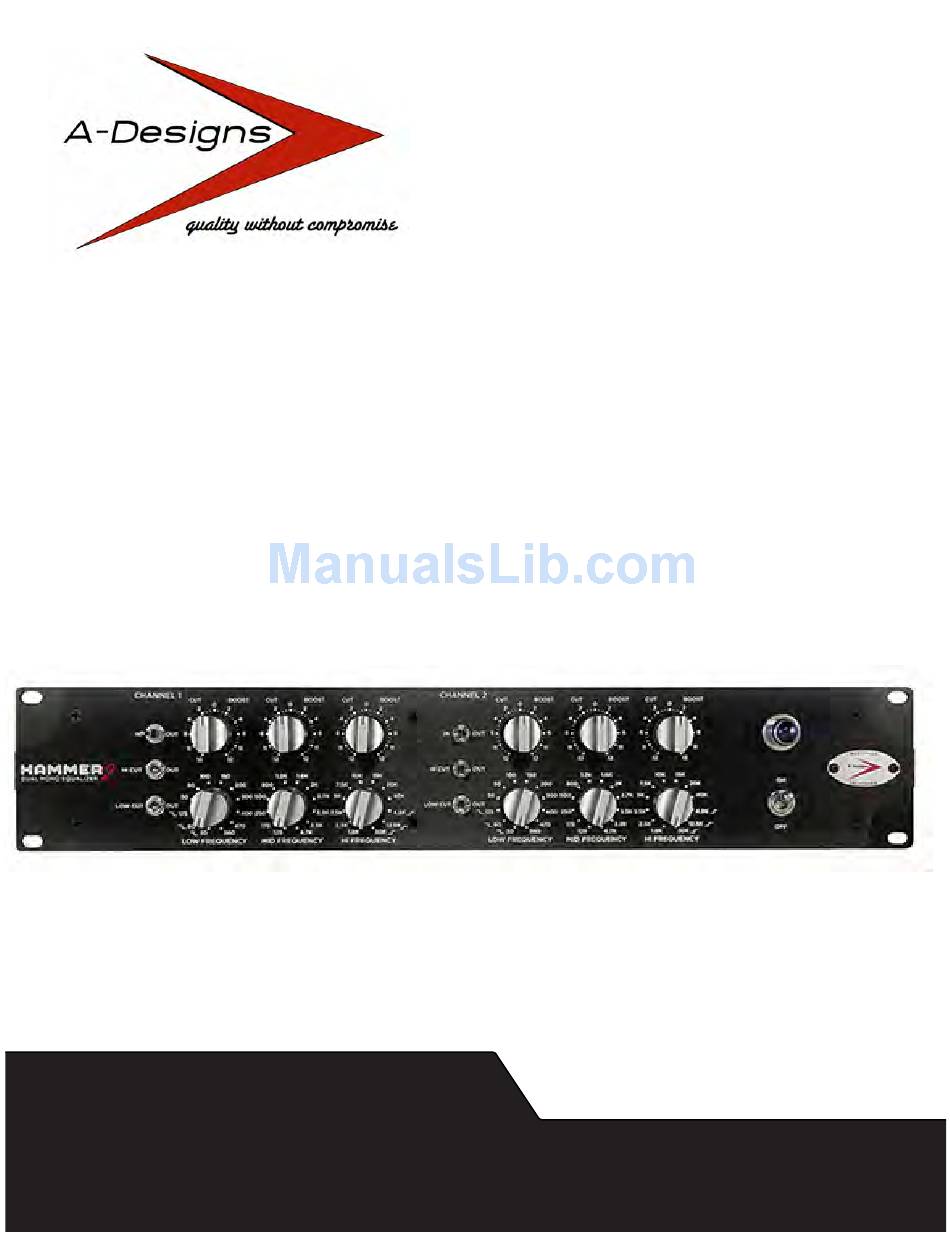

- Page 1 HAMMER 2 EQ ™ Owner’s Manual...
- Page 2 WARNING! Before you start your new HAMMER-EQ please read the following: ANY real tube product is sensitive to a high SPL environment. This may cause microphonics in a recording situation. Make sure you are able to shock mount and or place the unit in isolation if need be. Direct light will also affect tubes as well. PLEASE be sure to have at least one rack space between any tube products from the product above and below the unit.
- Page 3 Introduction Welcome to the Analog Sound of the HAMMER 2-EQ. This is an all tube product, and there are some basics you should come to understand before using this product for the first time. Tubes are a component that have specialized and unique features. If you are a “pre” or baby boomer, born before 1957, you may recall using tubes in various products, such as radios, amplifiers, and televisions.
- Page 4 Features • Vacuum-tube design hybrid • 2 Hard Pass Switches • Two (2) High Cut Switches • Two (2) Low Cuts Switches • Two (2) Mono Three Band EQ Sections • Milled Aluminum Face Plate • Blue Jewel Lamp (Power Indicator) •...
-
Page 5: Technical Data
Specifications TECHNICAL DATA Noise Floor....-94dbm with a 30KHz Bandwith Frequency Response ... -3dB points are 5Hz and 40KHz Low Boost . - Page 6 Functions Front By-pass Switch Hi Cut Switch Low Cut Switch Cut/Boost Knob - For Low Frequency Cut/Boost Knob - For Mid Frequency Cut/Boost Knob - For Hi Frequency Low Frequency Switch (30/60/125/Shelves..30, 50, 100, 200, 300, 400, 470, 560) Mid Frequency Switch (125, 175, 250, 500, 800, 1.2k, 1.6k, 2k, 2.7k, 3.3k, 3.9k, 4.7k) High Frequency Switch (1.8k, 2.5k, 3.5k, 5k, 7.5k, 10k, 15k, 20k, 40k..4.8k, 12.5k, 30k Shelves) Power Indicator Light Power Switch...
- Page 7 Functions (continued) Back AC Power Connector Fuse Box Fuse Amperage XLR Outputs (balanced) XLR Inputs (balanced) Serial Number Hammer 2-EQ Owner’s Manual ™...
- Page 8 Recall Sheet ALWAYS USE GOOD COMMON SENSE WHEN OPERATING ANY ELECTRONIC EQUIPMENT. IF YOU HAVE QUESTIONS, PLEASE CONTACT YOUR DEALER OR THE MANUFACTURER BEFORE DOING ANYTHING!!!!! A-DESIGNS AUDIO INC. PRO-AUDIO P.O. Box 4255 West Hills, CA 91304 USA (818) 716-4153 www.adesignsaudio.com Hammer 2-EQ Owner’s Manual...
