tekmarNet
Internet Gateway 485
®

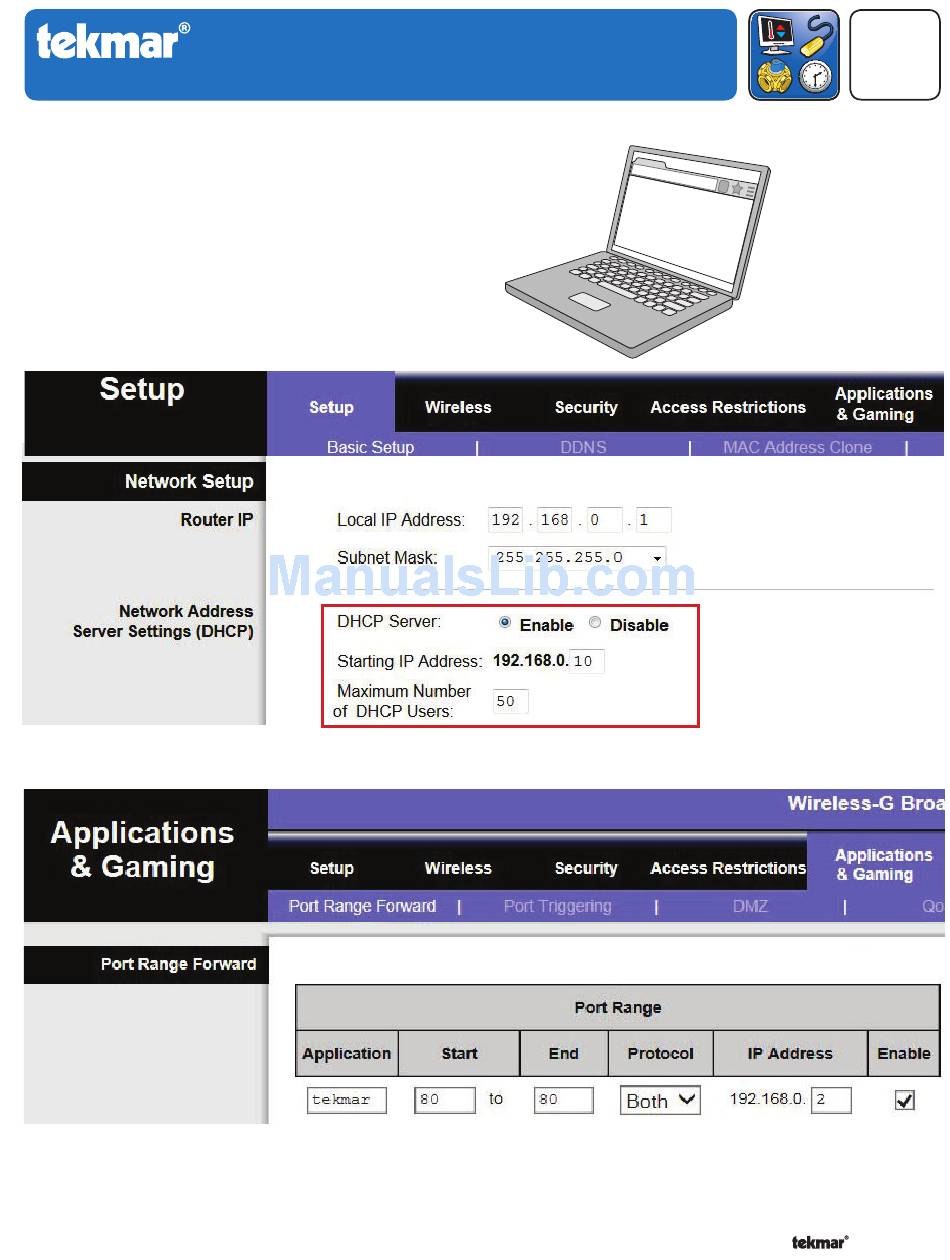

1.
Login to Router Setup
•
Open web browser
•
Open router setup page
•
Often located at: 192.168.0.1 or 192.168.1.1
•
Consult router manual or locate information on router
identification sticker
DHCP
•
Set the DHCP range to start at address 10
Port Forwarding or NAT
•
Forward to 485 LAN static IP address example 192.168.0.2
•
Internal port 80
•
External port 80
A Watts Water Technologies Company
Quick Setup Guide
1 of 4
485_Q
12/14
Accessories
Replaces: New
© 2014
485_Q - 12/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tekmar 485
Summary of Contents for Tekmar 485
- Page 1 DHCP • Set the DHCP range to start at address 10 Port Forwarding or NAT • Forward to 485 LAN static IP address example 192.168.0.2 • Internal port 80 • External port 80 A Watts Water Technologies Company 1 of 4 ©...
-
Page 2: Connect Power
Gateway Ready on solid • WiFi / Ethernet on solid Login Web Browser http://tekmargateway.local Set DIP switch to Unlock Default login: installer Default password: tekmar Click “Configuration” A Watts Water Technologies Company 2 of 4 © 2014 485_Q - 12/14... - Page 3 Click “Network” Ethernet Option Ethernet Tab A. Select DHCP Disabled radio button B. Enter Local Area Network static IP address example: 192.168.0.2 C. Subnet mask example: 255.255.255.0 D. Router example: 192.168.0.1 E. Power the router off, then power back on WiFi Option WiFi Network Tab A.
-
Page 4: Dynamic Dns
Outside building on Internet Enter no-ip.com hostname tekmar Control Systems Ltd., A Watts Water Technologies Company. Head Offi ce: 5100 Silver Star Road, Vernon, B.C. Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650 Web Site: www.tekmarControls.com Product design, software and literature are Copyright ©2014 by 4 of 4 All specifications are subject to change without notice.
