Summary of Contents for Spracht RHL-2010

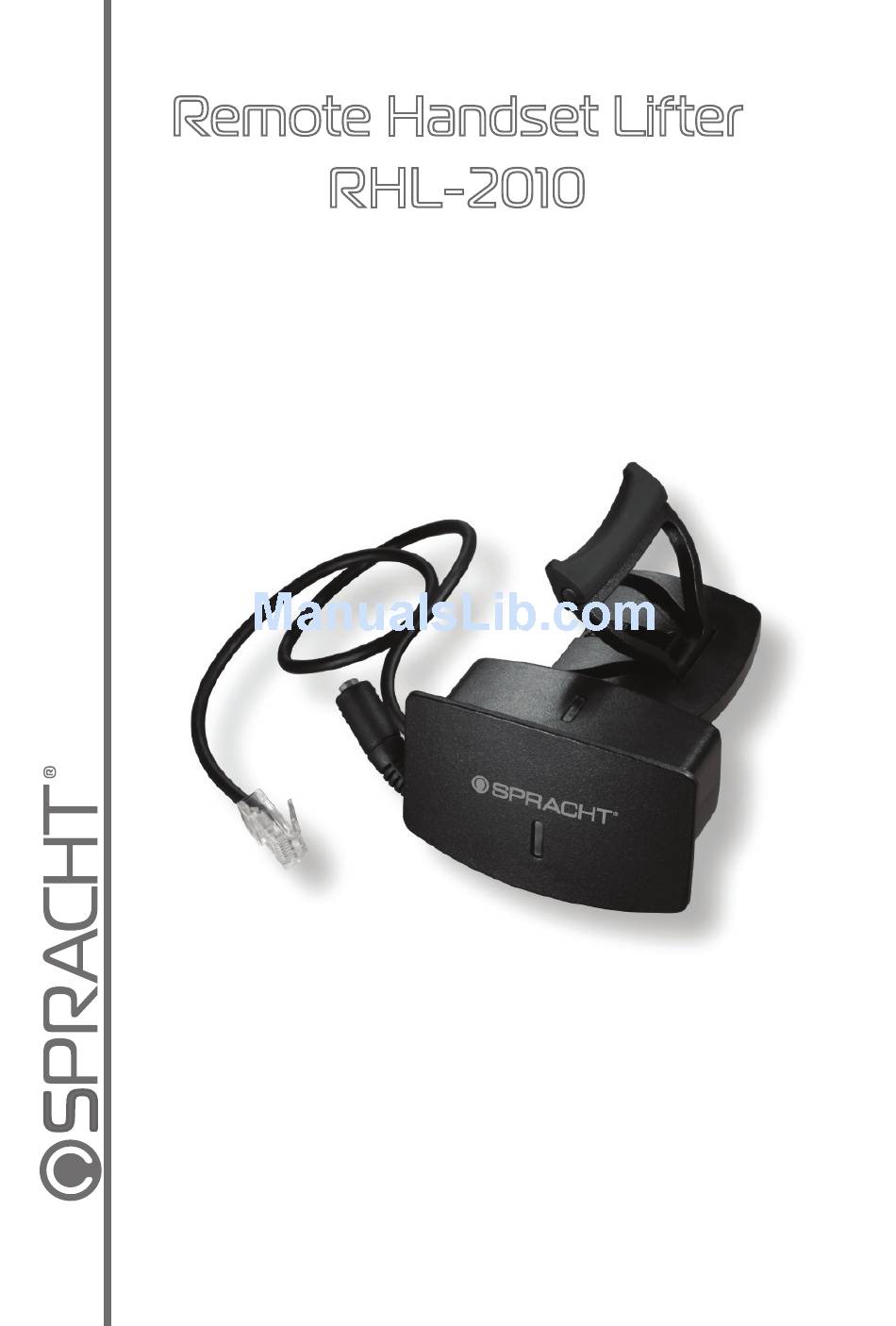

- Page 1 Remote Handset Lifter RHL-2010 For ZUM DECT Headset™ and ZUM eco-DECT Pro™ Headset USER GUIDE...
- Page 2 Remote Handset Lifter RHL-2010 For ZUM DECT HEADSET ™ M eco-DECT Pro ™ HEADSET...
-
Page 3: Table Of Contents
CONTENTS Package Contents Introduction Technical Specifications 2–3 Handset Lifter Design 4 – 5 Safety Precautions User Guide 6 –7 Installing the Handset Lifter Basic Operation ∙ Power On/Off ∙Making and Receiving Calls 9 – 11 Troubleshooting 12–13 Limited Warranty Policy Handset Lifter for ZūM DECT Headset™... -
Page 4: Package Contents
Package Contents ➊ Handset Lifter for Headset ➋ Integrated Connecter Cable to Base Unit ➌ Optional Microphone for External Ring Tone Sensor ➍ Adhesive strips to connect the Lifter to phone ➎ User Guide ➊ ➋ ➌... -
Page 5: Introduction
Introduction ® Thank you for purchasing Spracht ’s Remote Handset Lifter for ZūM DECT Headset™ and ZūM eco-DECT Pro™ Headset. The Remote Handset Lifter fits on your telephone and is designed for use with our ZūM DECT Headset™ or ZūM eco- DECT Pro™... -
Page 6: Handset Lifter Design
Handset Lifter Design ➊ Lifter Arm ➋ Lifting Height Adjustment Slide Switch ➌ (Underside) Optional Microphone Sensor Jack ➍ Optional Microphone Sensor Extension Jack ➎ Cord to Connect to Headset Base Unit ➏ ➊ ➋ ➌ ➎ ➏ ➍... -
Page 7: User Guide
Base Unit Back Power Jack ➐ Lifter Jack ➑ Phone RJ-11 Jack ➒ Handset Jack ➓ ➑ ➓ ➐ ➒ Handset Lifter for ZūM DECT Headset™ and ZūM eco-DECT Pro ™ User Guide... -
Page 8: Safety Precautions
• The intended use of this Handset Lifter is to lift and lower the telephone handset in conjunction with either the Spracht ZūM DECT Headset™ or ZūM Pro™ DECT Headset. Do not use it for any other purpose. -
Page 9: User Guide
• Never open the unit. Opening the unit voids the warranty and, more importantly, exposes you to the risk of an electric shock. • If your unit needs repair, contact the retailer you bought it from, or contact Spracht directly. Approved Accessories External Sensor Microphone... -
Page 10: Installing The Handset Lifter
Installing the Handset Lifter You will be placing the Headset Lifter on your phone so that the Ring Tone Sensor in the Headset Lifter is positioned over the speaker of your phone. Please refer to Figure A on the next page. The exact position of the lifter will vary phone to phone. - Page 11 the microphone end on your phone’s speaker. Plug the Connector from the Handset Lifter into the jack in the back of the Base Unit labeled Lifter (Figure B). Figure A Figure B Handset Lifter for ZūM DECT Headset™ and ZūM eco-DECT Pro ™ User Guide...
-
Page 12: Basic Operation
Basic Operation Switch the Headset on/off ➊ To turn the Headset on, press and hold the Talk button until the Headset LED goes on. ➋ To switch off the Headset, press and hold the Talk button until the Headset LED turns off. Making and Receiving a Call ➊... -
Page 13: Troubleshooting
Troubleshooting You can’t hear a dial tone • Press the Talk button on your headset to activate the Handset Lifter. • Check the height of the Handset Lifter and confirm that the handset is up high enough to be in the Off Hook position. - Page 14 You can hear the ringer on the phone but not in your Headset • Check that the phone is connected to the Base Unit’s phone jack and is pushed in firmly. • Check that the Handset Lifter cable is plugged into the jack labeled Lifter on the back of the Base Unit of the Headset firmly.
- Page 15 Your callers can’t hear you • Check if the Headset is muted. Press the Mute button on the Headset to unmute the microphone. • The microphone volume may be too low. Increase the volume by pressing the Microphone + button on the Base Unit.
- Page 16 Spracht shall (at its option) repair or replace a defective unit covered by this warranty, or shall refund the product purchase price. Repair, replacement with a new or reconditioned unit, or refund, as provided under this warranty, is your exclusive remedy.
- Page 17 (RA) from Spracht (serial number and purchase date required), and then return the product to Spracht at purchaser’s expense. A copy of the original dated receipt or shipping document must accompany the product. To obtain a return authorization, see “Warranty”...
- Page 18 ® © 2016 Spracht . All rights reserved. Spracht, the Spracht logo, and Zum DECT Headset and Zum eco-DECT Pro Headset are trademarks and registered trademarks of Spracht. All other trademarks are the property of their respective owners. Visit our website at www.spracht.com.
