Summary of Contents for VOSS VOSS.miniPet,DOG C200

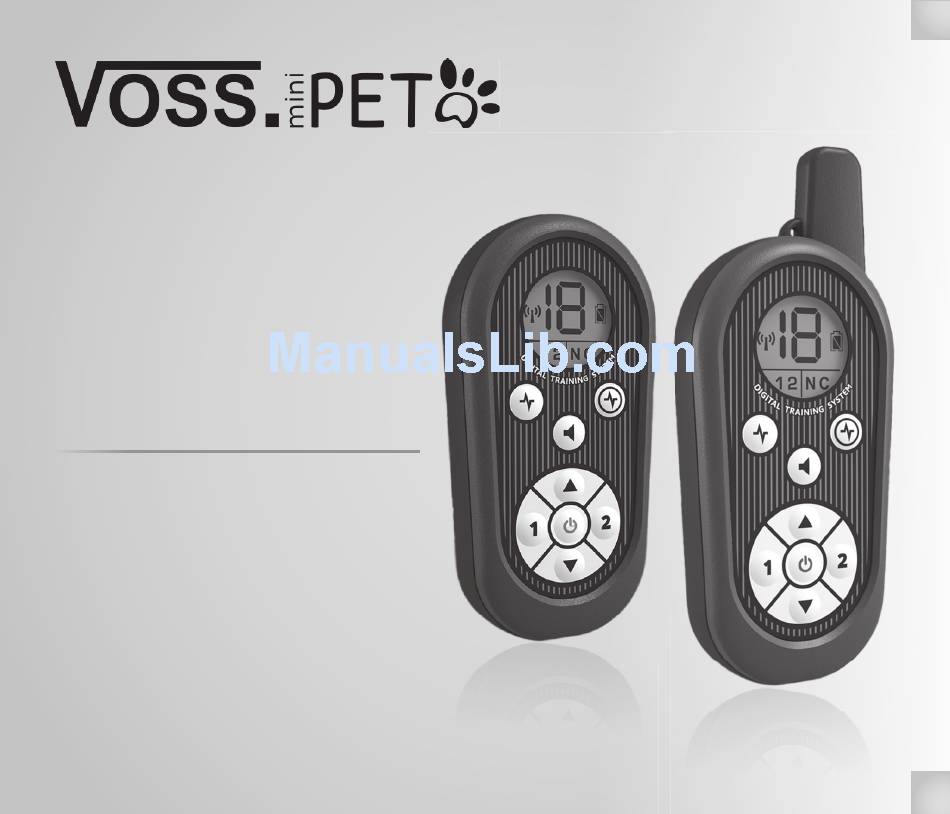

- Page 1 User guide DOG C200 VOSS.miniPet, Electronic training collar DOG C900 VOSS.miniPet, Electronic training collar...
- Page 2 IČO: 64793826 declare under own responsibility that the product: Electronic training collar VOSS.miniPet, DOG C200, DOG C900 is in compliance with essential requirements and other relevant provisions of Directive 1999/5/EC from 9. 3. 1999 meets requirements of General Licence of The Czech Telecommunication Office according to general licence no.
- Page 3 The person with a personal instrument to support heart activity (pacemaker, defibrillator) must respect the relevant recautionary measures. VOSS.miniPet emits a certain stationary magnetic field (lower part of the remote controller and RF signals). Frequency= 869, 52 MHz, maximum transmitted power = 25 mW (DOG C200) 500 mW (DOG C900).
-
Page 4: Table Of Contents
Contents Introduction Package contents Optional accessories Product description Battery insertion and replacement Choosing the contact points Switching ON/OFF Programming (coding) the transmitter with the receiver Transmitter - button functions How to check that your training collar works correctly Getting the best results Using training collar in winter Training tips Caution... -
Page 5: Introduction
However, correcting to stop unwanted behaviour is only a small part of what you can do with the VOSS.miniPET. More importantly, the VOSS.miniPET is a powerful tool for encouraging desired behaviour. It is possible to easily adjust the intensity of the stimulation. Thanks to the ergonomic design and low weight of the receiver, it is suitable for all dog breeds and sizes. -
Page 6: Product Description
Product description TRANSMITTER RECEIVER DOG C200 DOG C900 DISPLAY TRANSMITTER: 1 - Antenna, 2 - LCD display, 3 - Booster, 4 - Impulse correction, 5 - Tone signal, 6 - Adjustment of the level of the stimulation, 7 - Dog selection button (dog 1, dog 2) and pulse length - short (N) or long (C), 8 - Eyelet for attaching the strap RECEIVER: 1 - Strap, 2 - Contact points, 3 - ON/OFF Switch, 4 - magnetic switch for pairing DISPLAY: 1 - Indicator of the radio transmission, 2 - Dog selection indicator (dog 1, dog 2), 3 - Stimulation level... -
Page 7: Battery Insertion And Replacement
Battery insertion and replacement Insertion (replacement) of the battery in the receiver • Unscrew the 4 screws of the top of the receiver using a cross-head screwdriver and remove the lid. Insert the lithium CR2 3V battery into the battery compartment. Please check that and the battery is installed with correct polarity ( see the picture). -
Page 8: Choosing The Contact Points
INSERTION (REPLACEMENT) OF THE BATTERY IN THE TRANSMITTER Observe polarity when installing the battery. Reversing the battery will damage the transmitter. Use only lithium CR2 3V batteries. • Remove the transmitter battery cover using a screwdriver. • If replacing the battery, remove the old battery and dispose of it properly. -
Page 9: Switching On/Off
Switching ON/OFF SWITCHING THE TRANSMITTER ON/OFF • Switching ON: Press down for 1 second the button on the transmitter. The LCD display indicates that the unit is active. • Switching OFF: Again, press down for 1 second the button on the transmitter. SWITCHING THE RECEIVER ON/OFF A magnet located at the lower part of the transmitter is used to activate or deactivate the magnetic switch located in the receiver. -
Page 10: Programming (Coding) The Transmitter With The Receiver
Receiver can be reprogrammed indefinitely, either with the same transmitter or a new VOSS.miniPET transmitter. It is possible to program an unlimited number of receivers to one transmitter. -
Page 11: Transmitter - Button Functions
Transmitter - button functions The VOSS.miniPET transmitter is designed to operate with two separate receivers (dog 1 and dog 2). Button - Tone signal The receiver emits a beeping noise when the „Tone button“ is pressed. You can warn your dog that he should pay attention even from a distance. - Page 12 Button – Booster Pressing the „Booster button“ gives an electric stimulation transmitted by the two contact points loca- ted on the receiver as long as the button is pushed. If the button is not released after 4 seconds, the sti- mulation will automatically turn off as a safety feature.
-
Page 13: Getting The Best Results
How to check that your VOSS.miniPET works correctly? You can check anytime that your VOSS.miniPET is ope- rating correctly. • Before doing so, make sure that the receiver is switched off. • Place the test discharge lamp in contact with each of the contact points, as shown in the picture. - Page 14 Follow these tips for best results: • Hold the remote in your hand without covering the antenna, since it is used to transmit the signal. • To increase range, hold the remote in an outstretched arm. • before each use, you should always check the batteries of the transmitter and the receiver and change them if necessary •...
-
Page 15: Training Tips
Using the VOSS.miniPET training collar in winter When using the VOSS.miniPET in winter, please keep in mind: • Low humidity – causes less skin conductivity. It is necessary to provide better conductivity bet- ween the electrodes of the receiver and the dog‘s skin. This can be achieved by lubricating the dog’s skin with Vaseline, baby oil, hand lotion, etc. - Page 16 • Eliminate one misbehaviour or teach one obedience command at a time. • Be consistent. Give your dog a tone or stimulation with each misbehaviour. Always use the warning tone and repeat the command. Only use the correction impulse if the dog does still not react.
- Page 17 Sound signal By using the warning sound signal, you have the following options: • As soon as your dog does something wrong, you can send a warning sound signal in order to warn it. • You can draw the dog’s attention to you. •...
- Page 18 Use this booster button only in special cases (e.g. when your dog runs on the road etc.). Using options of the remote trainer The VOSS.miniPET remote trainer is very easy to use and it can help you teach your dog various things: •...
-
Page 19: Caution
Caution • Keep away from children. • Do not leave the device in or around a high temperature heat source. • Check the receiver for proper tightness of screws and seal before each use. • Battery of the receiver needs to be replaced in every two years, check the battery power level before each use. -
Page 20: Maintenance
It is important to keep the device clean. Clean the contact points regularly, avoid using any detergent that contains strong chemicals. To clean your VOSS.miniPET use a soft damp cloth using only water and neutral detergent. The transmitter is not waterproof, so use caution when operating your device in wet conditions, water can cause irreversible damage to your transmitter. -
Page 21: Technical Specifications
Technical specifications TRANSMITTER DOG C200 / DOG C900 Weight 58 / 82 grams (without battery) Range approx. 200 / 900 meters in the free area Power supply lithium CR2 3V battery Battery life 6-12 months, based on usage Frequency 869, 525 MHz Maximum transmitted power 25 mW Antenna... -
Page 22: Warranty Terms And Conditions
Warranty Terms and Conditions VNT electronics Ltd. provides a 2-year warranty on the DOGtrace™ product with respect to defects in material and workmanship under normal use and service from the date of the original purchase. The limited warranty does not cover the following: •... - Page 23 The warranty provided only applies to the Product purchased from official authorized dealer. We require that all items being sent for repair must be clean. Items deemed insufficiently clean will be returned to the customer unrepaired. Please do not include the strap or any other accessories if not subject to warranty.
- Page 24 Manufacturer: VNT electronics s.r.o. Smetanovo namesti 104 570 01 Litomysl Tschechische Republik Tel.: +420 731 441 541 Dealer: Warranty card ....... Manufacturing number.
