Summary of Contents for i3-TECHNOLOGIES i3SPEAKERS
-

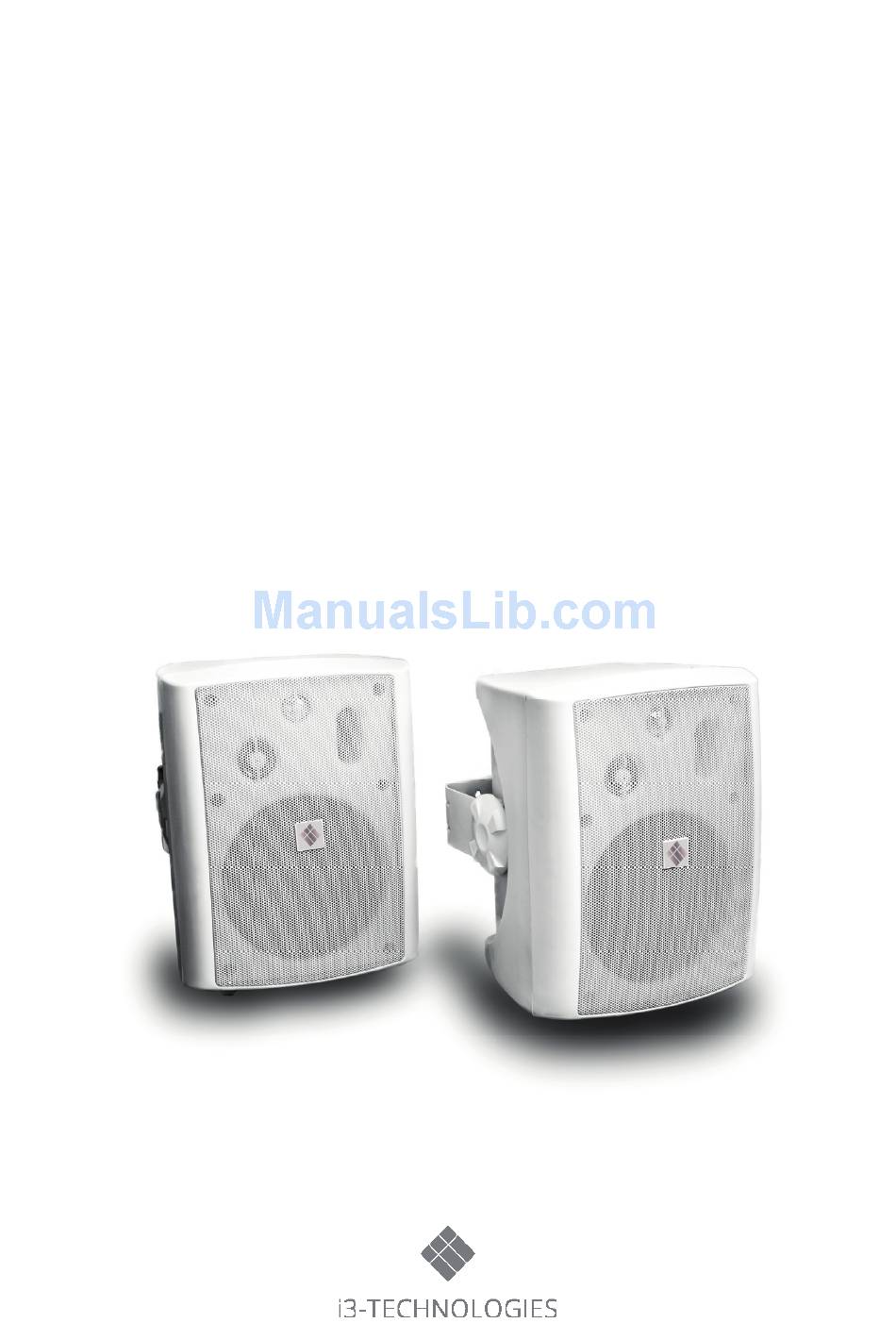

Page 1: User Manual
LX503 MK2 User Manual... -
Page 3: Table Of Contents
Index Introduction Precautions Safety requirements Caution servicing EC Declaration of Conformity Waste of Electrical and Electronic Equipment (WEEE) Chapter 1: Connections and connectors Connection standards Chapter 2: Overview LX503MK2 Overview LX503MK2 Description LX503MK2 Chapter 3: Technical specifications Chapter 4: Notes... -
Page 5: Introduction
Introduction Active speaker system The LX503MK2 is a 3-way stereo loudspeaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variation of applications, producing a clear and powerful sound. -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS... -
Page 7: Caution Servicing
CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) EU DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC) and 2014/35/EU (LVD) WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) The WEEE marking indicates that this product should not... -
Page 8: Chapter 1: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for this audio equipment are performed according to international wiring standards for professional audio equipment. Cinch (RCA): For unbalanced line input connections Tip: Signal Sleeve: Ground 3-Pin Terminal block: For balanced signal input connections Left: Signal -... -
Page 9: Chapter 2: Overview Lx503Mk2
Chapter 2 Overview LX503MK2 LX503MK2 Rear panel 99mm 230~240 VAC / 50Hz 230~240 VAC / 50Hz FUSE 1A 250V FUSE 1A 250V POWER SPEAKER POWER SPEAKER LX503 LX503 MONO STEREO MONO STEREO POWER POWER VOLUME TREBLE BASS VOLUME TREBLE BASS 3.5mm 3.5mm JACK... - Page 10 4) Heat sink: When using the LX503MK2 at full power for a long time, the heat sink will warm-up. Make sure there’s always some space behind the speaker ensuring a proper airflow. Take care when placing the speaker near other heat sensitive items.
-
Page 11: Chapter 3: Technical Specifications
Chapter 3 Technical specifications Frequency response 80 Hz - 20 kHz Sensitivity (1W / 1m) 88 dB Sound pressure (Max W / 1m) 103 dB RMS Power 2 x 40 Watt Drivers 1” Piezo tweeter 1” Mid range tweeter 5 ¼” Polypropylene woofer Construction Speaker Bracket... -
Page 12: Chapter 4: Notes
Notes...
