Summary of Contents for Prospera PL029

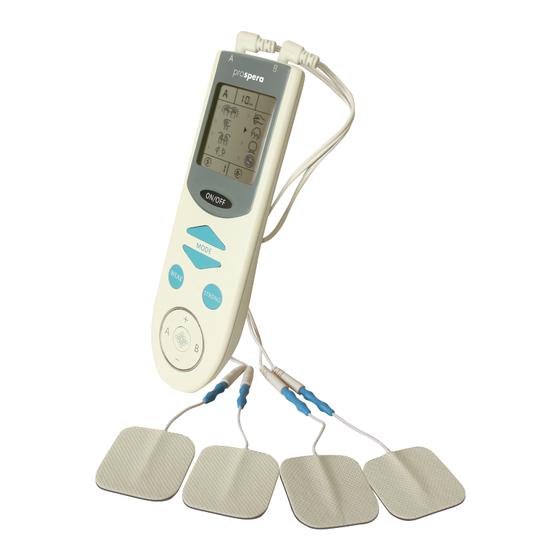

- Page 1 OTC TENS Electronic Pulse Massager PL029...
- Page 2 Safety Warning and Cautions WARNING 1.Do not use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device. Such use could cause electric shock, burns, electrical interference, or death; 2.If you are in the care of a physician, consult with your physician before using this device;...
- Page 3 Safety Warning and Cautions ！ CAUTION 1.This device is not effective for pain of central origin, including headache; 2.This device is not a substitute for pain medications and other pain management therapies; 3.This device has no curative value; 4.This device is a symptomatic treatment and, as such, suppresses the sensation of pain that would otherwise serve as a protective mechanism;...
- Page 4 Safety Warning and Cautions ！ CAUTION recommended by your physician; 11.Use caution if you have a tendency to bleed internally, such as following an injury or fracture; 12.Consult with your physician prior to using the device after a recent surgical procedure, because stimulation may disrupt the healing process;...
- Page 5 Safety Warning and Cautions WARNING 9.Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), which may not operate properly when the electrical stimulation device is in use; 10.Do not apply stimulation when in the bath or shower; 11.Do not apply stimulation while sleeping;...
- Page 6 Safety Warning and Cautions You may experience headache and other painful sensations during or following the application of electrical stimulation near your eyes and to your head and face; You should stop using the device and should consult with your physician if you experience adverse reactions from the device.
- Page 7 Product diagram Channel A Channel B LCD display screen Power switch Choose the lower function Choose the upper function Stimulation weaken Stimulation strengthen Speed increase Control channel A Control channel B High frequency Speed decrease Back Batteries...
- Page 8 Control channel Remain time Function stock Function stock Intensity Speed In addition to PL029 device, items included in the package: Two sets of cables, four pads, operating manual and 2 AAA batteries 2 AAA 2 cables 4 pads Operating batteries...
- Page 9 How the Electronic Pulse Massager works: The operational principle of the device is to generate small pulses of electrical current and deliver the pulses to an ordinary user’s skin through electrode adhesive pads such that the underlying nerves are activated and the pain a ssociated with sore and aching muscles is temporarily relieved.
- Page 10 Quick Operation Guide 8th Step: Adjust electronic pulse speed 9th Step: Start massaging 10th Step :Press the “ON/OFF” button to turn off the power For the details of operation, please see the following operating instructions. 1st Step: Insert the 2pc AAA batteries into the device.
- Page 11 Quick Operation Guide The device has two identical ports (Channel A and Channel B) for connecting the two identical lead wires. Each lead wire is coupled to a pair of identical electrode pads. Connect the first pair of Electric wire insertion electrode pads to the two terminals of the first lead wire, and insert the first lead wire’s other end into the first port.
- Page 12 Quick Operation Guide 2 pads from one channel are placed on the body area such as shoulder at the same time. Make sure the pads stick on the skin. Do not place or move the pads when the device is on. Note: Keep the skin clean before placing the pads.
- Page 13 Quick Operation Guide Select a massage mode by pressing the MODE UP and MODE DOWN buttons. The selected mode will be shown on the LCD display. 6th Step : Choose treatment time. Press the TIME button to select the treatment time 5 min, 10 min or 15 min.
- Page 14 Quick Operation Guide There are two intensity keys. WEAK means to decrease the intensity, while STRONG means to increase the intensity. There are ten levels intensity for choosing. “STRENGTH” and level numbers will be showed on the lower right corner of LCD display. Note: Increase the intensity gradually.
- Page 15 Quick Operation Guide 9th Step: Start massaging. After the setting of device, it is working and its pads could be covered with clothing. Turn off the device if necessary. 10th Step : Press the “ON/OFF” button to turn off the power. Disconnect the wires and electrode pads after the massaging.
- Page 16 Performance Specifications Power Source 3 V Battery Number of Output Modes Number of Alternating Output Channels Timer Range (minutes) 5 min, 10min, 15 min Weight 6.0 oz. (battery and output wire included) Dimensions (in.) [W x H x D] 2.32 x 7.87 x 0.83 Waveform Monophasic Shape...
- Page 17 Performance Specifications Maximum Phase Charge 23 µC @500Ω Maximum Current Density 1 .4mA/cm²@500Ω Maximum Average Current 18mA@500Ω Maximum Average Power Density 0.23W/cm²@500Ω Burst Mode (Pulses per burst) ( Bursts per second) ( Burst duration) 0.17-1 sec (Duty Cycle) 1. 19-7 ON Time 40 ms OFF Time...
- Page 18 Quality Assurance Tests The test result of each step should meet the following pass criteria. Otherwise, it is considered failed and you should contact Prospera Corporation for a repair or replacement. Key function test: When the functional keys are pressed step by step, the outputs of the device should be identical to the following descriptions: 1.
- Page 19 Quality Assurance Tests LCD check: The information displayed on the LCD screen should be identical to the following descriptions: 1. When the ON/OFF key is pressed, the device is turned on, and the LCD screen displays Letter “A” at the upper left corner with intensity and velocity of level 1 and a 15 min countdown time.
- Page 20 Quality Assurance Tests Program stability test: The program should work consistently and identically as designed during multiple tests. How to clean Electronic Pulse Massager Use damp cloth or water to clean the device. Do not let the sticky side of the pad touch anything, including the greasy finger tips.
- Page 21 Maintaining the Electronic Pulse Massager having breaking or worn out. Recommend to use Prospera’s electrode pads. 3. Change a new wire if it is too old or broken. Recommend to use Prospera’s wire. How to store the Electronic Pulse Massager Environmental condition for transport and storage Easily fragile product.
- Page 22 The electrode pads coming with the device are disposable, and should be replaced when their adhesiveness becomes worse. Contact Prospera for replacements Part Replacement Contact Prospera to order replacement parts. Be sure to use only Prospera’s Electronic Pulse Massager. You can check the Prospera website at www.prosperacorp.com for additional Product information.
- Page 23 Conformity to Standards IEC60601-1-2 Medical electrical equipment -Part 1-2: General requirements for safety Collateral Standard" - Electromagnetic compatibility - Requirements and tests. IEC 60601-2-10 Medical electrical equipment -Part 2: Particular requirements for the safety of nerve and muscle stimulators. 2. The electrode pad is compliance with: EN ISO 10993-5 Biological Evaluation of Medical Devices - Part 5: Tests for In Vitro Cytotoxicity.
-
Page 24: Trouble Shooting
Trouble Shooting If the device is not operating properly, please check it for the following problems or conditions. If the recommended action does not solve the problem, please return it to the authorized dealer for the replacement/repair of the device. Should the following situations happen, please take the recommended trouble shooting procedures: MALFUNCTION... - Page 25 Remove and place again on the Skin feels numb skin closely? skin. Batteries installed correctly? Remove and install batteries. Device does not turn on Are batteries dead? Replace the dead batteries. Pads are not sticky Pads get deteriorative Contact Prospera for replacements.
-
Page 26: Consumer Warranty
Consumer Warranty Prospera offers a 90-day standard warranty to the massage products. Labor and parts are included during warranty period. Consumers are required to provide model number and dated proof of purchase (sales receipt) when contacting Prospera for the warranty service. - Page 27 Positions...
-
Page 28: Warranty Card
Warranty Card Warranty Registration Form Product Name: Product Model: Purchase Price: Date of Purchase: Retailer: First Name: Last Name: Address: City: State: Zip: Phone: Email: Signature and date:... - Page 29 Warranty Card Please mail to: Prospera Corporation 448 Commerce Way Livermore, CA. 94551 Tel:(925) 225 0888 Email: sales@prosperacorp.com...
