MCOHome MH-P411 User Manual

Touch Panel Dimmer is a wall switch with built-in Z-Wave module. It supports basic
command class ， association command class, which can control all associated devices
synchronously. This product can be included and operated in any Z-Wave network with other
Z-Wave certified devices from any other manufacturers.
Power supply: 85~260VAC, 50Hz
Z-Wave frequency: 868.42MHz or other frequency customized
Max output: 1*2A
IMPORTANT:
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete the installation inside the main circuit box (normally outside your
house)
Read all instructions and documentation and save for future reference
Step1 Preparing
CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock
or death!

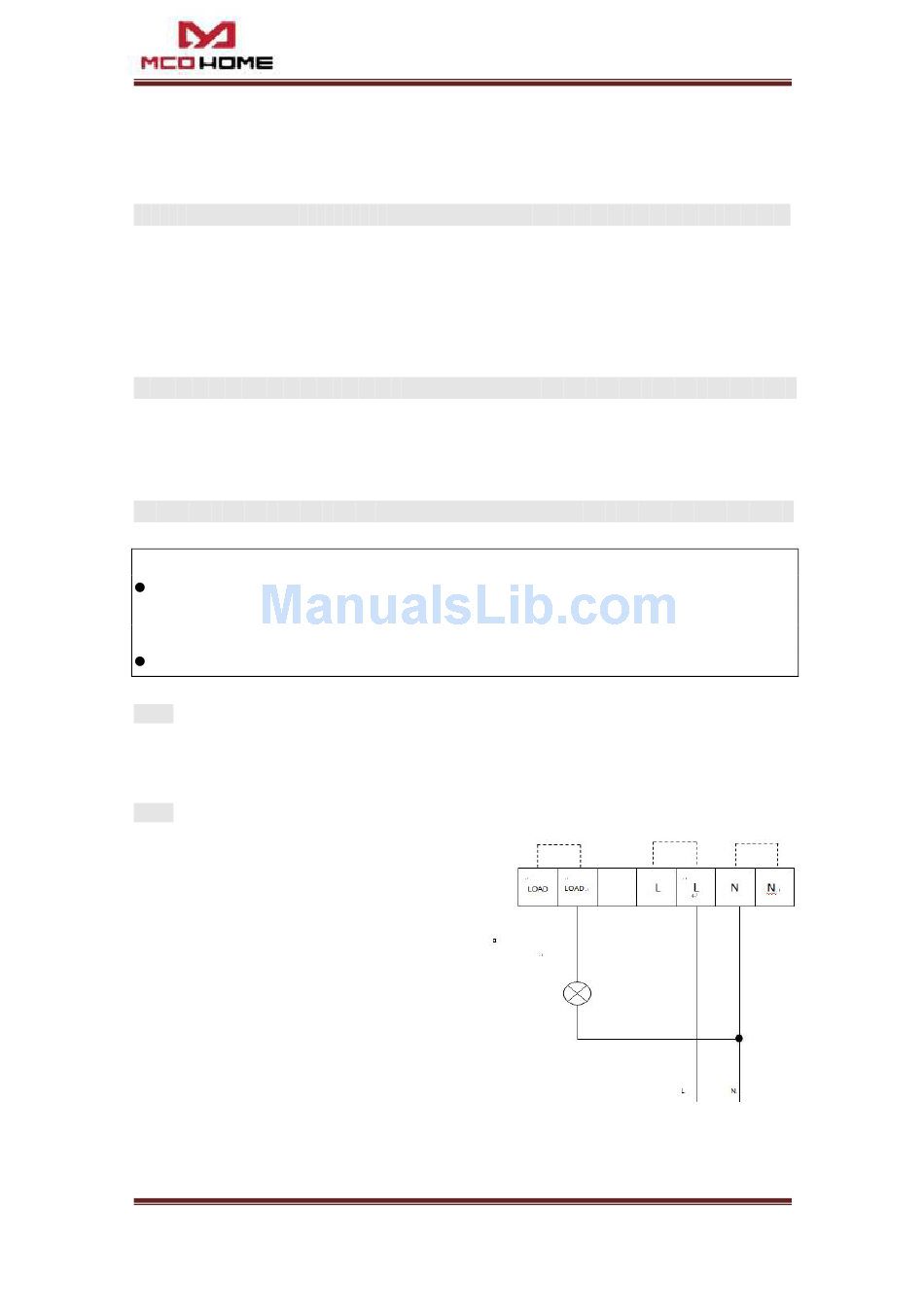

Step2 Wiring ( standard strip length: 6-8mm )
1. Separate the device into two parts: the touch panel
and the bottom.
2. Connect Hot Line to "L" on the bottom.
3. Connect Neutral Line to "N".
4. Connect Load wire to "Load".
5. Secure the bottom onto the junction box with two
screws, and then mount the touch panel back.
MCOHome Technology Co., Ltd
www.mcohome.com
Touch Panel Dimmer
MH-P411

Introduction

Specifications

Installation Instructions

User Manual
1
