Summary of Contents for ROYLITE 5R

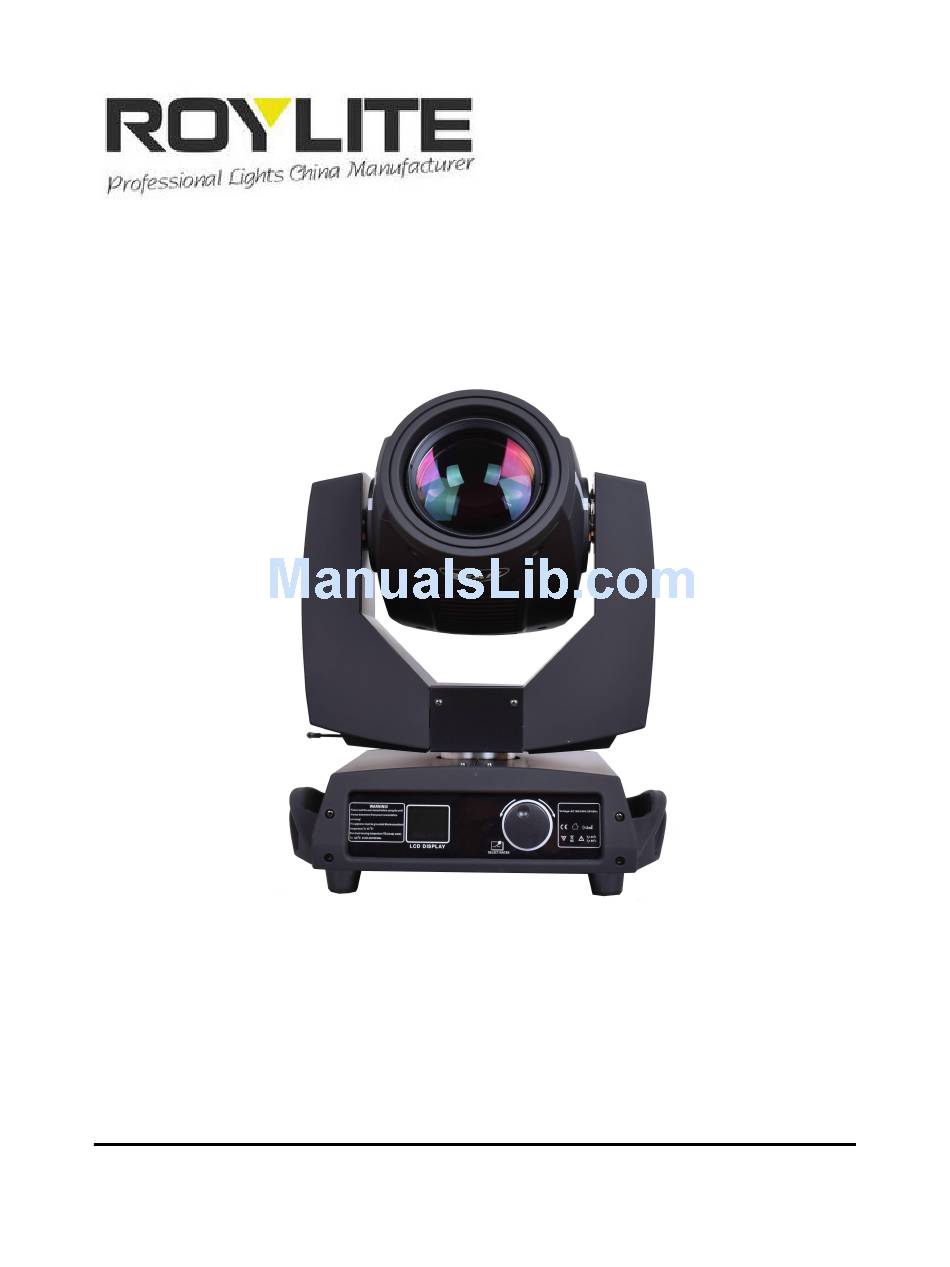

- Page 1 5R / 7R BEAM MOVING HEAD User Manual This product manual contains important information about the safe installation and use of this projector.
- Page 2 Please read and follow these instructions carefully and keep this manual in a safe place for future reference. STATEMENT The product is good packing when ship out the factory. All users should strictly abide by the warnings and instructions stated in this manual, any damage and results due to misuse and the neglect of this operating manual will be excluded from the deal responsibility this manual will not informed in additionally if have technical changes.
-
Page 3: Safety Information
Gross Weight:21.5KG 2. SAFETY INFORMATION Safety warning message This product is only suitable for professional use, and does not apply to security for other purposes. After you got the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible. - Page 4 in other facilities will need to verify before installation. Installing or removing the equipment, to make the pulley below the work location 2.4 UA PROTECTION AND THE BULB EXPLOSION Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes; Do not use the equipment without the lens screen and the lid;...
- Page 5 8. Do not replace the non-original parts. 3. PACKAGE 3.1 ATTACHMENT Beam230 packed with fly-case of one in one ,two in one ,or carton box. ACCESSORY CONTENT QUANTITY USER MANUL CLAMP BRACKET SIGNAL CABLE PACAKGE SIZE CARTON BOX 46x44x57cm Flight-Case 2 in 1 83x47x71cm 3.2 TRANSPORT PROTECT LOCK In order to protect the light, there is a protect lock;...
- Page 6 1. Open the fly-case, and discover the inside plastic bag. 2. High-lift the product by two handles beside the bottom base and move it out. 3. Before power on, make sure you have opened the X, Y axis lock! 4. INSTALL STRANDARD 4.1 INSTALL LOCK B230 can be placed on the stage, or mounted in an arbitrary direction of the truss.
- Page 7 Do not use two outputs to separate the connection, if separate a continuous connection to branch, DMX512 splitter is necessary. Attention! Do not overload the connection. One continuous connection can only connect up to 32 devices. If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller .And then connected from the splitter output terminal to next device.
-
Page 8: Control Panel Display
WARNING! There is a safety hazard or damage if install similar bulb To reduce the risk of damage to light,do change the lamp before using time over 125% of lamp life. 6.2 LAMP REPLACE Attention! When replace the lamp is forbidden to touch lamp with bare hand, to avoid the greasy dirt stains filament.Filament must be kept clean. - Page 9 7.1 LCD Operation Menu Level 1 Level 2 Press Level 3 Press Enter Enter Address 001 001-512 ADDR:001 Display Show Reve◄ ► Nature/Reverse Language ◄ ► Chinese/English Brig setting◄ ► 000-007 Backligh ◄ ► 1Min/5Min/8Min/ (Backlit delay) Light Menu back◄ ►...
- Page 10 Fan1 Rotation Fan2 Rotation Version DG01 Spare Time Most Spare cut Most Return ► Control ( DMX control) CH01 ◄ ► 000-255 CH02 ◄ ► 000-255 … … CH40 ◄ ► 000-255 Assion Tool Factory ◄ Defaults ◄ Redress ◄ Ch Define ◄...
-
Page 11: Dmx Protocol
8.DMX PROTOCOL 16Channel 20 Channel DMX Value Description 1CH Color 1CH Color white White +color1 9-12 Color1 13-17 Color1+Color2 18-21 Color2+Color3 22-25 Color3 35-38 Color4 39-42 Color4+Color5 43-46 Color5 47-51 Color5+Color6 52-55 Color6 56-59 Color6+Color7 60-63 Color7 64-68 Color7+Color8 69-72 Color8 73-76 Color8+Color9... - Page 12 108-207 Strobe effect from slow to fast 208-212 White 213-225 Random strobe effect,slow 226-238 Random strobe effect,middle 239-251 Random strobe effect,fast 252-255 white 3CH Dimmer 0-255 Linear dimming from 0% to 100% Dimmer 4CH Gobo 4CH Gobo Blank wheel wheel Gobo 1 8-11 Gobo 2...
- Page 13 224-230 Shake from slow to fast : Gobo 11 231-236 Shake from slow to fast : Gobo 12 237-243 Shake from slow to fast : Gobo 13 244-249 Shake from slow to fast : Gobo 14 250-255 Shake from slow to fast : Gobo 15 5CH Prism 5CH Prism 0-127...
