Summary of Contents for RECORDER GEAR SR100

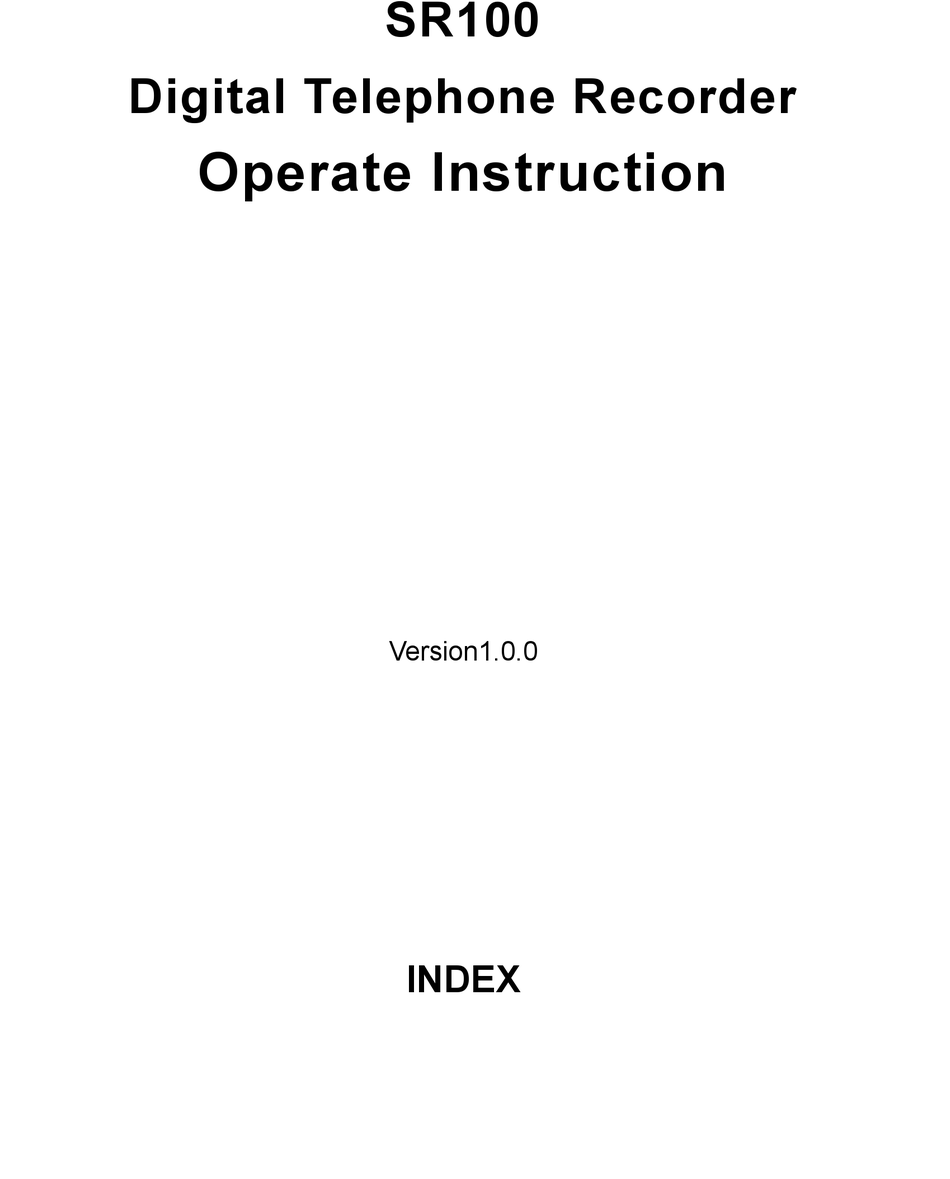

- Page 1 SR100 Digital Telephone Recorder Operate Instruction Version1.0.0 INDEX...
- Page 2 7.SETUP ……………………………….……………………………………8 8.RECORD ………………………………….……………………………12 9.SERVICE AND WARRANTY……………………………………….17 10.CONTACT ……………………………………………………………18 1.INTRODUCTION This device is a single line voice logger. It can record all the calls over the phone including Caller ID, date, time and elapse. SR100 Operate Instruction...
- Page 3 DV 5V ○17Fast Reverse ○3 LINE port ○18Pause ○4 PHONE port ○19Play ○5 Handset Line ○20Stop ○6 Volume + ○21Page Down ○7 Volume - ○22Page Up ○8 Handset ○23Back ○9SOURCE PHONE ○24Records ○10SOURCE MICROPHONE ○25SD Card ○11SET SR100 Operate Instruction...
- Page 4 4、1GB HDD capacity 5、USB interface 5.Connection 1. Analog line connection： a. Switch the SOURCE to PHONE b. Co-line to LINE port c. Phone to PHONE port, ** ! will be shown on the LCD. See P.9 for set up. SR100 Operate Instruction...
- Page 5 2．Digital phone Connection (Handset)： a. Switch SOURCE to PHONE b. Connect handset line to LINE c. Connect handset to PHONE will be shown on the LCD. Voice trigger setup is necessary. See Page 9 for set up. SR100 Operate Instruction...
- Page 6 3．Microphone connection (Environmental Record)： a. Switch SOURCE to MIC ! will be shown on LCD. See Page 8 for set up. Remark：See Page 11 for initial Time/Date set up. SR100 Operate Instruction...
-
Page 7: (A)Standby Mode
：Microphone recording mode Auto：Auto recording mode Manual：Manual recording mode Trigger：Voice Trigger mode ：Loop recording mode 10H：Recording time of remaining capacity Time：System Time (B)Talk Mode Type：Incoming .Outgoing Elapse：Talking time。 Phone number：Incoming/Outgoing phone number 。 7.Setup (A).Recording Parameter SR100 Operate Instruction... - Page 8 Press RECORD to start, STOP to terminate (2)Automatic Recording When line voltage is lower than settings, it starts recording automatically (3)Voice Trigger When voice level is higher than settings, it starts recording automatically. 3 .VOX Trig Level SR100 Operate Instruction...
- Page 9 The system will record the call automatically when the line voltage is lower than setting. Setting range is 15~30(V). 11. Call Out Delay Time The system will record calls after setting delay time. Setting range is 0~20 (B) .System Setup SR100 Operate Instruction...
- Page 10 Synchronize the time with FSK Caller ID 6. Language You can choose Traditional Chinese, Simple Chinese or English as system language. 7. LCD Contrast Adjust the contrast of LCD display, the higher the brighter. Range 1-6 SR100 Operate Instruction ! 1 0...
- Page 11 I=Incoming call O=Outgoing call N=MIC T=Voice Trigger A=Answering machine 2 .Date /Time Display date and time of audio files 3. Recording Length Display the length of audio files. 4 .! Symbol indicates audio files, otherwise CDR only. SR100 Operate Instruction ! 1 1...
- Page 12 (1) Delete audio files and keep the CDR (2) Delete both audio files and CDR 5 .Search by Time: Search audio files by time 6 .Search by number: Search audio files by incoming / outgoing numbers (C). Play Audio files SR100 Operate Instruction ! 1 2...
- Page 13 Recording type, date, time, elapse, number and process will be shown on LCD. You can delete or flag the audio file directly. (D) .Searching Option 1. All Search all records in SD card 2. Incoming Search all incoming calls including missed calls. SR100 Operate Instruction ! 1 3...
- Page 14 8. Trig Search voice triggered audio files 9. Answering Search answering machine messages audio files You can search specified audio files by operating search functions. 8.Service Guarantee One (1) Year Limited Warranty Limited Warranty SR100 Operate Instruction ! 1 4...
- Page 15 Important: Do not open the hardware product. Opening the hardware product may cause damage that is not covered by this warranty. SR100 Operate Instruction ! 1 5...
