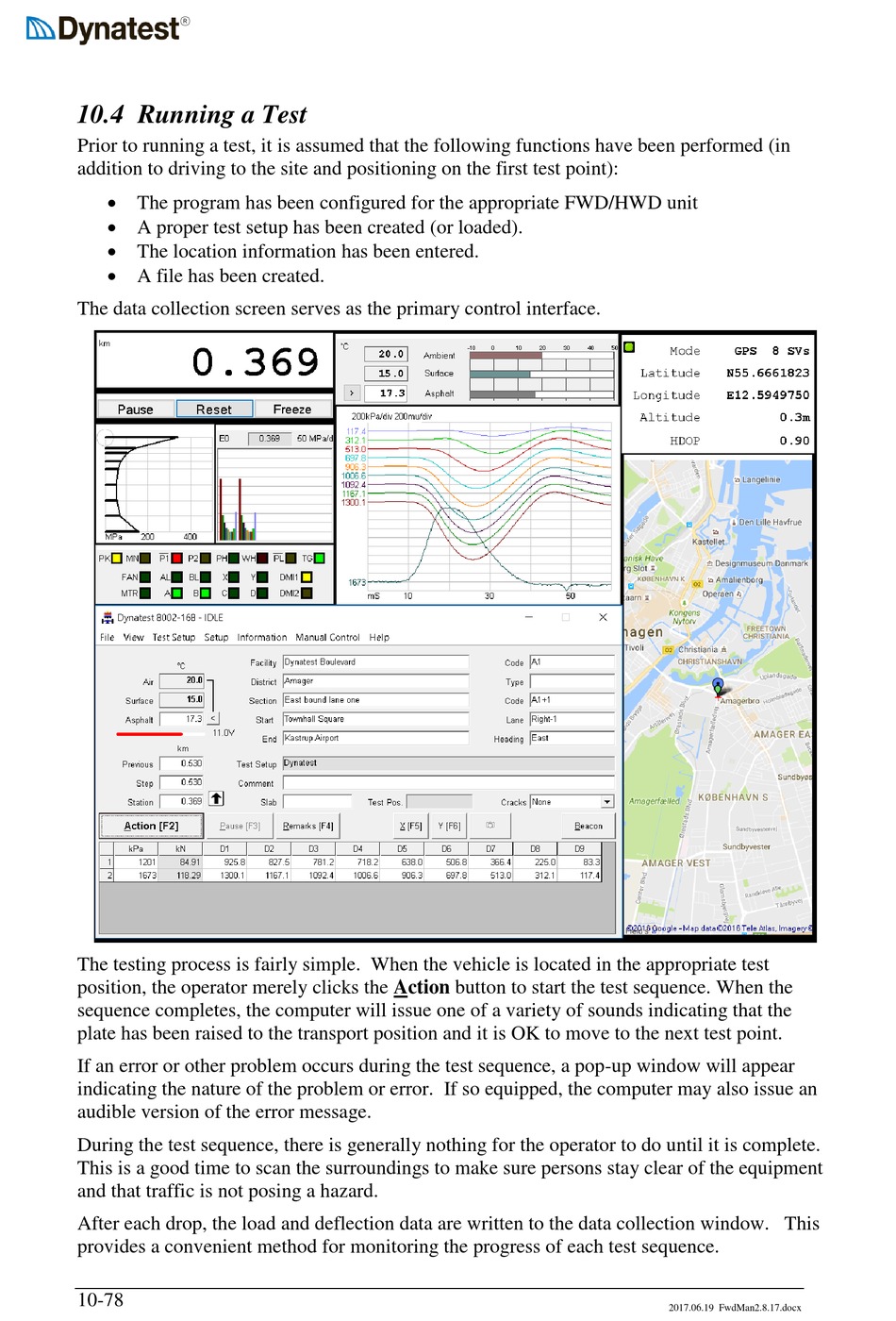

10.4 Running a Test

Prior to running a test, it is assumed that the following functions have been performed (in
addition to driving to the site and positioning on the first test point):
 The program has been configured for the appropriate FWD/HWD unit
 A proper test setup has been created (or loaded).
 The location information has been entered.
 A file has been created.
The data collection screen serves as the primary control interface.
The testing process is fairly simple. When the vehicle is located in the appropriate test
position, the operator merely clicks the
sequence completes, the computer will issue one of a variety of sounds indicating that the
plate has been raised to the transport position and it is OK to move to the next test point.
If an error or other problem occurs during the test sequence, a pop-up window will appear
indicating the nature of the problem or error. If so equipped, the computer may also issue an
audible version of the error message.
During the test sequence, there is generally nothing for the operator to do until it is complete.
This is a good time to scan the surroundings to make sure persons stay clear of the equipment
and that traffic is not posing a hazard.
After each drop, the load and deflection data are written to the data collection window. This
provides a convenient method for monitoring the progress of each test sequence.
10-78
A ction button to start the test sequence. When the
