Summary of Contents for BELEDU BEL-KB560

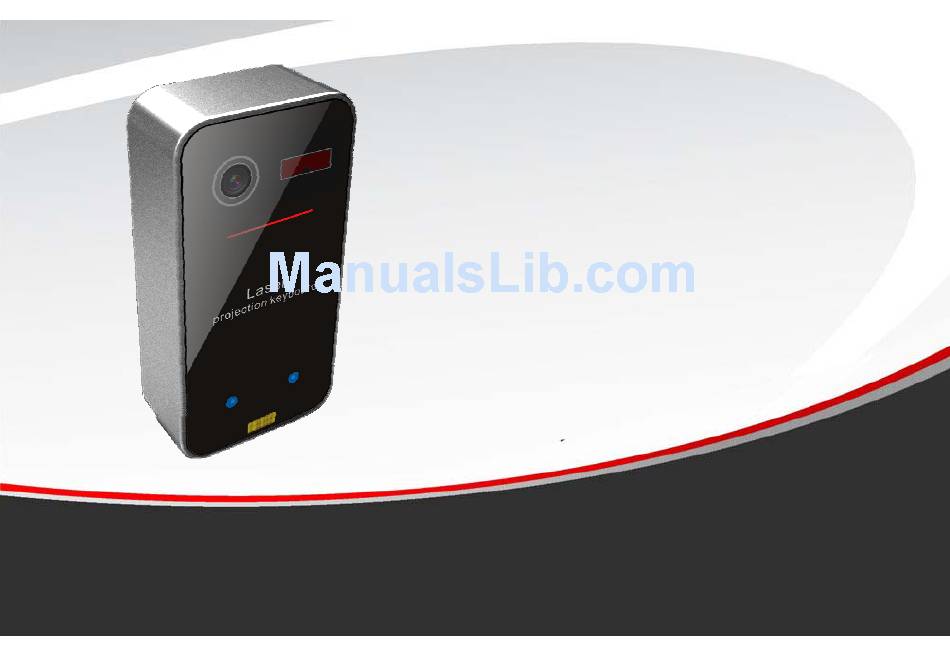

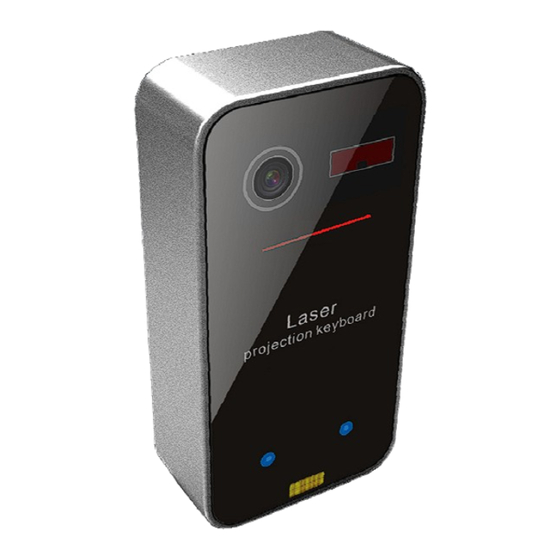

- Page 1 Laser Projection keypad User Manual BEL‐KB560 FCC ID:2ADX5BEL‐KB580 All other products are trademarks or registered trademarks of their respective companies. Please refer to host device instruction manual for Bluetooth pairing information.
-
Page 2: Table Of Contents
CONTENTS 1. Product Overview.................. 2 2. How This Product Works…………………….…………….………..8 3. Product Features................... 2 4. Package Contents................. 2 5. Safety Precautions……………………………………..…..……………..3 6. Identifying Parts and their Functions........... 11 7. Connecting via Bluetooth..............13 8. Special Function of “SHIFT” Key…………..………………………….16 9. Power Saving Mode Guide..............17 10. -
Page 3: Product Overview
1. Product Overview This projection keyboard will work via Bluetooth HID. connection to main devices, like Tablet PC, Smartphone, Desktop PC and Video game . As a new input device, using the built-in infrared laser transmitter to project the standard keyboard on the working surface , you can locate the click position and input the information by the method of optical identification. - Page 4 Conditions to Avoid...
- Page 5 1. Avoid direct sunlight. 2. Avoid low color temperature light source, such as tungsten, halogen, or incandescent lamp. 3. Avoid uneven or irregular surfaces. Place the product on flat surfaces. 4. Avoid a table or surface that is as transparent or reflective as glass or mirror. 5.
-
Page 6: Product Features
CAUTION Although this equipment is classified as Class 2 laser product, for your safety, do not directly expose your eyes to pattern projection beams orinfrared rays. 3. Product Features • English QWERTY keyboard layout. • Truly portable design:perfect for on-the-go •... -
Page 7: Package Contents
4. Package Contents • Laser projection keyboard • USB Cable • User’s Manual • Quick Start Guide 5. Safety Precautions 1. Avoid exposing this product to direct sunlight for extended periods of time, and keep it away from heat sources. 2. - Page 8 into the laser source. Doing so could damage your eyes. 7. Avoid placing any object within the space between the main unit and the laser projection keyboard layout. 8. Please do not use this product on uneven or irregular surfaces. Place the product on a flat surface.
- Page 9 Charging Time: Approx. 120 minutes Note Charging time increases if product is used while charging. When product in extremely low on power,it needs to charge for up 5 minutes before you can use it. Cautions 1. For safety reasons, be sure to use only the microUSB to USB cable specified for this product.
-
Page 10: Identifying Parts And Their Functions
6. Identifying Parts and Their Functions. 1. Projector: Uses a red laser to project the image of a keyboard onto a flat surface in front of the typist. 2. Sensor: Picks up the infrared light reflected off the typist’s fingers and triangulates the location of the reflected light to determine which key was pressed. - Page 11 Charge Complete Red out FRONT VIEW SIDE VIEW...
-
Page 12: Connecting Via Bluetooth
7. Connecting via Bluetooth • Projection Keyboard supports Bluetooth HID: • Connection via Bluetooth HID does not require installation of separate driver as long as the host device has HID compatibility. • Bluetooth 3.0 or higher required for connecting to some devices. NOTE Projection Keyboard will automatically attempt to re-connect to the recently connected devices. - Page 13 • Windows XP/Vista/7/8 or higher • Windows Phone 7/8 or higher • Mac OS (using Keyboard only) • Blackberry 10 • PS3 Bluetooth Connection Instruction 1. Power on Projection Keyboard 2. Left blue LED will be blinking indicating the Projection Keyboard is searching for a new device or previously paired devices within its proximity .
- Page 14 Screen shot of successful Screen shot of pairing Pairing on iOS on Android...
-
Page 15: Special Function Of "Shift" Key
8. Special Function of “SHIFT” Key Normally we need press “Shift” key all the time on the normal keyboard. To improve projection keyboard typing convenience and accuracy, this product has special using method. We need type “Shift” key only one time and the function of shift will keep. - Page 16 Press any key to resume to standard brightness. Factory default brightness is the highest level during power on. ·The product will be automatically standby if there is no operation on the keyboard within 5 minute. Press Power Switch to restart the product. 10.
-
Page 17: Mouse Mode
11.Mouse Mode To change keyboard mode to mouse mode on the keyboard, press the key. The projection keyboard brightness will change to low level. To Change mouse mode to keyboard mode, on the keyboard, press the key. The projection keyboard resume to standard brightness. +Mouse/cursor function is available on devices that support such feature (Most Windows,Android and Mac OS). - Page 19 12. SPECIFICATION Pattern Projector Item Specification Light Source Red Laser Diode Keyboard Layout Approx. 19mm Pitch, QWERTY Layout Keyboard Size Approx. Width : 240mm, Height: 100mm Keyboard Location Approx. 80mm from the bottom of device Project Surface Non-reflective, opaque flat surface Keyboard Sensor Item Specification...
- Page 20 Electrical Characteristics Item Specification External Power Supply USB Power / less than 5V 500mA Lithium-ion Polymer Battery, Battery & Capacity 700mAh(MA X) @ 3.7V Battery Operating Time Approx. 120min Battery Charging Time Approx. 120min Bluetooth V3.0 Frequency Range 2402-2480MHz Channel Modulation GFSK...
- Page 21 Environmental Conditions Item Specification OperatingTemperatur 0 ~ 35°C / 90%RH Storage Temperature -5 ~ 35°C / ~90%RH Dimensions and Weight Specifications Item Specification Size (mm) 78mm x 40mm x 20mm Weight (g) Approx. 60 g...
- Page 22 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
