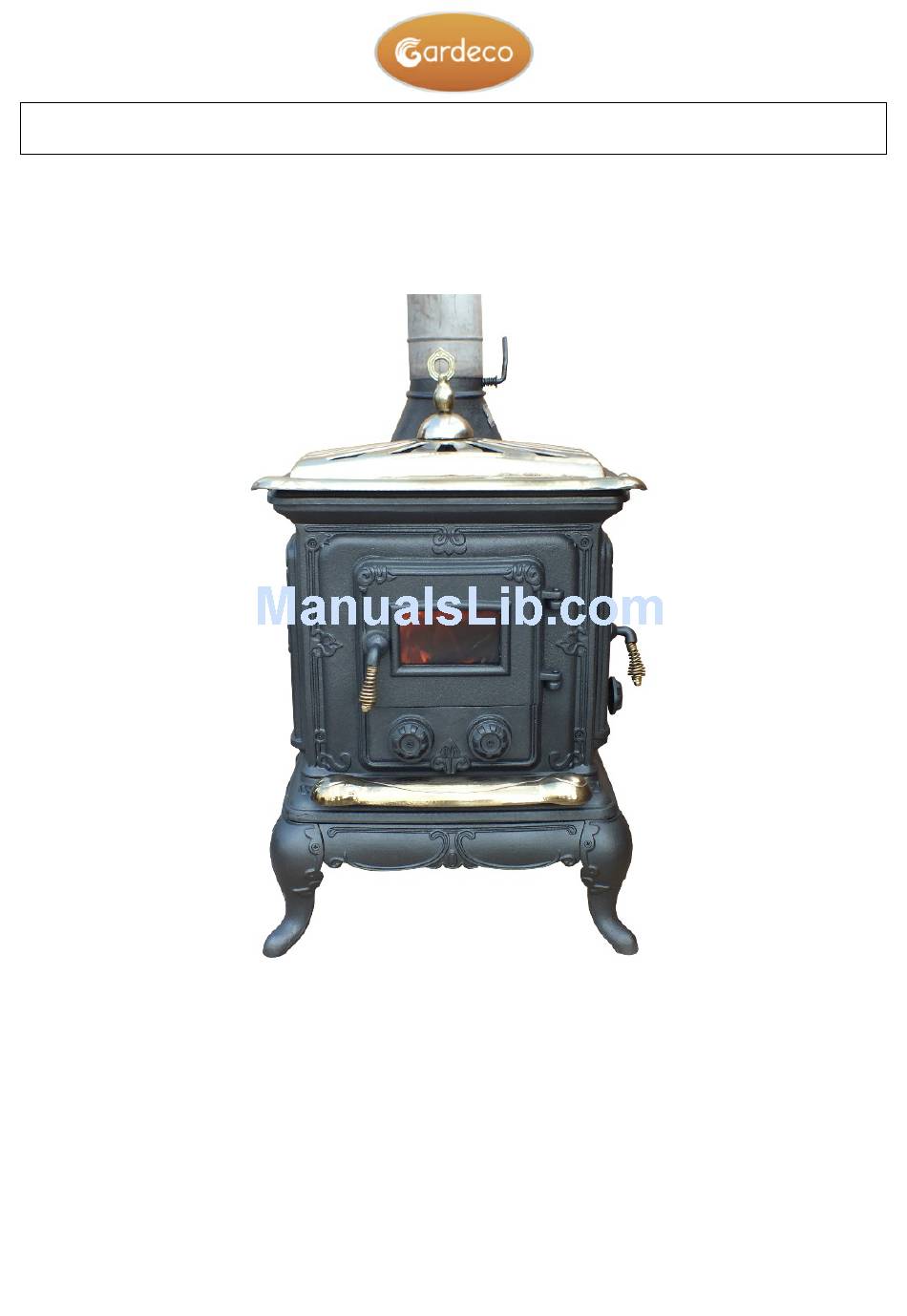

ASSEMBLY AND USER INSTRUCTIONS
AMBLECOTE BLACK COUNTRY STOVE
Model Amblecote
WARNING - Observe these instructions to
avoid personal injury and damage to property
HOT Burn risk
Images are only an indication of the general appearance and design. Specific aspects may change
from time to time.
Gardeco Limited
PO Box 5500, Kidderminster, Worcestershire, DY11 9BB
Tel: 01562 637 034 Fax: 01562 637 596
E-mail: info@gardeco.co.uk www.gardeco.co.uk

Advertisement

Table of Contents
loading

Related Manuals for GARDECO Amblecote

Summary of Contents for GARDECO Amblecote

  • Page 1 ASSEMBLY AND USER INSTRUCTIONS AMBLECOTE BLACK COUNTRY STOVE Model Amblecote WARNING - Observe these instructions to avoid personal injury and damage to property HOT Burn risk Images are only an indication of the general appearance and design. Specific aspects may change from time to time.

  • Page 2: Part List

    Part List...

  • Page 3: Exploded Drawing

    Exploded Drawing NB: The main part of the stove comes pre-assembled. The only parts which do not come assembled are the legs, the hood handle and the accessories. Assembly Instructions for the unassembled parts can be found on the next page.
  • Page 4 ASSEMBLY Keep plastic bags out of the reach of children and dispose of safely. Please read the safety recommendations before use. Keep these instructions in safe place for future reference. Before starting read these instructions carefully. Please note that because of the nature of cast metal, you may find roughness on the surface and the design.

  • Page 5: Installation

    Installation THE FLUE PIPES ARE THE MOST IMPORTANT COMPONENTS WITH REGARD TO FIREPLACE SAFETY. THEY MUST BE INSTALLED STRICTLY ACCORDING TO THE INSTRUCTIONS AND KEPT AWAY FROM ANY FLAMMABLE MATERIAL. IN ADDITION, LOCAL BUILDING REGULATIONS AND SAFETY STANDARDS MUST BE RESPECTED. 1.
  • Page 6 Cowl (Stainless steel) Funnel (Stainless steel) Outer Flue (Zinc-aluminium or galvanised) It covers the main flue from the ceiling to the cowl. Flashing (Zinc-aluminium) Rock Wool Rock wool is inserted between the main flue and outer flue for insulation. Distance from flammable material Any flammable material must be a minimum distance of 15 cm from the outer flue.

  • Page 7: Useful Hints

    4. The main flue, cowl and funnel must be made of high grade stainless steel. The outer flue and the flashing must be made of zinc-alum or galvanized. The main and outer flue sections must be fastened together with stainless steel screws or rivets; use three rivets/screws at each join on both the main and outer flue.

  • Page 8: Technical Data

    Technical Data Nominal output in Kw Appliance efficiency in % 70.5 Pipe Diametre in mm Firewood hourly consumption in Kg/h 1800 Refuelling interval in minutes Measured CO (at 13% oxygen content) 0.3 4 % Flue gas mass flow - Exhaust gas emission 8.37 Flue gas temperature in degrees C 304°...

  • Page 9: Lighting The Stove

    Lighting the Stove When using coal as a fuel: -Loosely ball up some easily flammable material such as newspaper in the centre of the fire box. -Open all the air vents: the front screw vents and the rear vent to provide an unobstructed airflow to the fire.
  • Page 10 Stove Operation and Maintenance Do not overload the stove. This can either put out the fire or cause the walls to warp and break through overheating. Ensure that no accessories or tools have been left inside the stove. The first firing may produce some unpleasant smells. This is normal and is completely harmless. Leave the door closed when in use.

  • Page 11: Chimney Fires

    Chimney Fires Combustion gasses can deposit debris such as soot, ash and creosote on the inner walls of the main flue which, under certain circumstances, can cause a fire in the flue. A chimney fire can reach very high temperatures, which is why flue liners must be capable of resisting these temperatures. What to do in case of a Chimney Fire? -Keep Calm.

  • Page 12: Conditions Of Limited Warranty

    Warranty Registration Form plus a copy of the purchase invoice to the If this is not possible, the customer must contact Gardeco Ltd designated address within 10 days from the date of purchase.
