- Page 1 PLATINUM XP500 PREMIUM CLASS pocket scale Manual & Operation Guide...

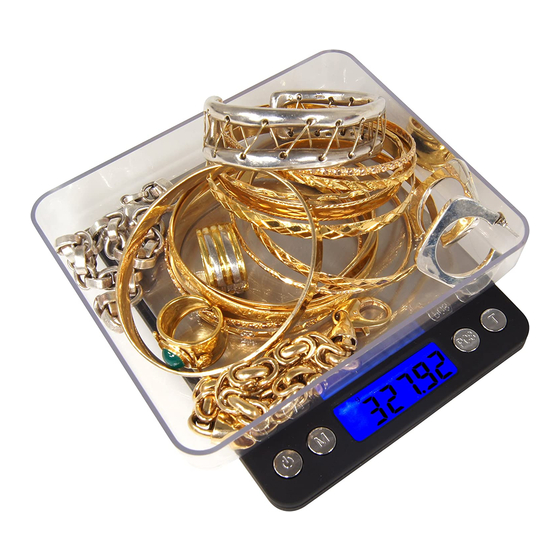

- Page 2 Congratulations on purchasing the PLATINUM XP500 precision, high capacity pocket sized digital scale! Please read all instructions carefully prior to operating. Features · 500g x 0.01g, dwt, ozt, ct, gn and oz · Bright blue backlit LCD display · Push button digital calibration, tare, memory, low battery indicator and battery saving auto-off functions ·...
-
Page 3: Specifications
· OutZ - Indicates the scale must be recalibrated. · CAL - Indicates the calibration mode has been entered. To stop this process press POWER. · PASS - Indicates you have completed the calibration process and calibrated the scale successfully. ·... -
Page 4: Calibration Procedure
Operation 1. Press the POWER button, and wait until 0.00g (if in gram mode) is displayed. If the scale turns on with anything other than 0.00g, simply press the tare (T) button to return to 0.00g. Press the MODE (M) button to change the weighing modes. - Page 5 button for about 3 seconds until CAL displays. 3. Press the CAL button again. The scale should flash “CAL” a few times and then start flashing 500g on the display. 4. Place a 500g calibration weight on the platform while being certain the scale is stable and until the display reads PASS.
- Page 6 button to switch to your sample size number. 5. After your sample size number is displayed, press the PCS button again. The “PCS” mode will now be displayed on your screen. Your counting function is now set for the item you sampled. 6.
- Page 7 original sales receipt for warranty service. In the event the XP500 scale is no longer available or has been discontinued and warranty coverage is applicable, at the factory’s sole discretion, an equivalent cleaner may be substituted in place of the defective XP500 scale. The purchaser shall incur the cost for postage, insurance and handling for all warranty and non-warranty repairs and/or replacements.
- Page 8 GemOro 10455 Olympic Drive Dallas, Texas 75220 USA Tel 800.527.0719 or 214.351.0380 Fax 800.832.9871 or 214.351.1903 www.gemoroproducts.com Email: gemoroservice@sykessler.com...
