Summary of Contents for SMPro Active-1

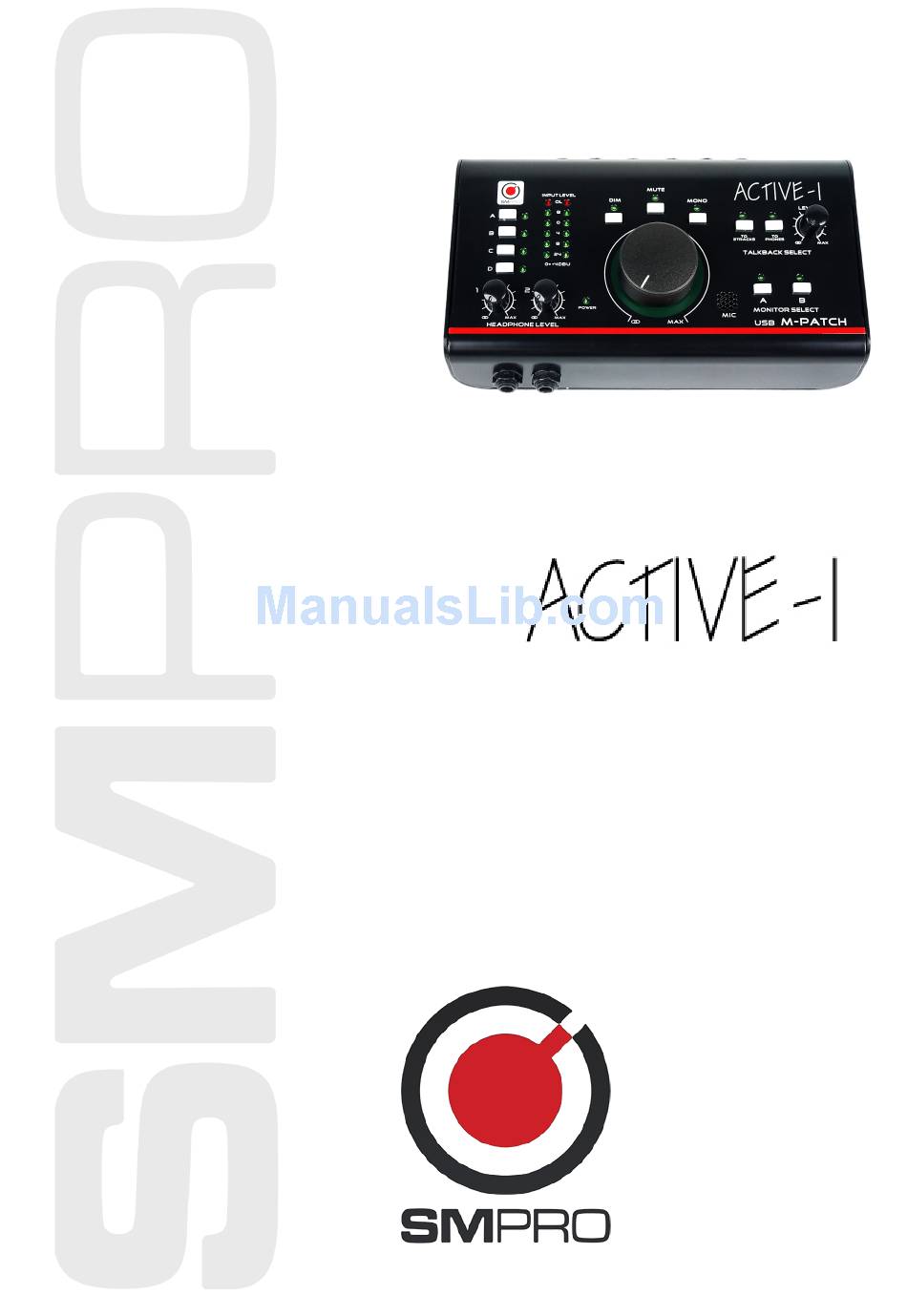

- Page 1 A ctiv e M o nito r Co ntro ller Operating Manual V1.1...
-
Page 2: Table Of Contents
Warranty ..........................14 Return Authorization Number ..................14 Warranty Regulations ......................14 Claim for Damages ......................15 Other Warranty Rights ...................... 15 FCC and CE Regulation ......................16 CORRESPONDENCE ......................16 SM Pro Audio Page 2 of 16 ACTIVE-1 manual ... -
Page 3: Safety Instructions
The user should not attempt to service the appliance beyond that is described in the Operating Instructions. All other servicing should be referred to qualified service personnel. SM Pro Audio Page 3 of 16 ACTIVE-1 Manual ... -
Page 4: Foreward
As with all SM Pro Audio equipment, the ACTIVE-1 was designed to provide you with superb performance, excellent technical specifications, and uncompromising audio quality at an extremely affordable price. -
Page 5: Introduction
Unboxing Your SM Pro Audio ACTIVE-1 was carefully packed in the factory and the packaging was designed to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for any signs of physical damage, which may have occurred in transit. -
Page 6: Connections (Rear Panel)
Mains Power The ACTIVE-1 includes a 9V mains power supply. The power LED on the front panel (to the left of the volume knob) will illuminate when the external power supply is connected and mains power is present. Please ensure the correct power supply is used with the ACTIVE1 and that the power rating on the provided power supply suites your AC power outlet. -
Page 7: Outputs
Footswitch (TALK BACK CONTROL) Plug a 6.5mm or ¼ inch jack footswitch into this socket. Pressing the footswitch initiates hands- free activation of the talkback feature. SM Pro Audio Page 7 of 16 ACTIVE-1 Manual ... -
Page 8: 4/-10Db Switch
+4/-10DB Switch The selector switch in the bottom right rear corner changes the output level compatibility SM Pro Audio Page 8 of 16 ACTIVE-1 manual ... -
Page 9: Front Panel
Input Selector The ACTIVE1’s input selector chooses the input signal you wish to monitor. Headphone Amplifiers There are two independent headphone amplifiers provided on the ACTIVE-1. Each with their own volume control. SM Pro Audio Page 9 of 16 ACTIVE-1 Manual ... -
Page 10: Dim
Volume control As it is an ACTIVE device, the ACTIVE-1’s Volume control, controls an electronic circuit, which in turn adjusts the level of the audio going through the device. SM Pro Audio... -
Page 11: Talkback
The talkback mic can be sent to the headphones or to the 2TRACK output. Monitor Select The monitor select switches activate the output to the A & B outputs respectively. Both can be selected simultaneously. SM Pro Audio Page 11 of 16 ACTIVE-1 Manual ... -
Page 12: Application
When connecting PASSIVE speakers, you must first connect the output of the ACTIVE-1 to your amplifier and then connect the amplifier to the speakers. Do not connect the OUTPUT of an amplifier to the ACTIVE-1 controllers INPUT! SM Pro Audio... -
Page 13: Specifications
92dB @1kHz Volume Control range: Dim Switch -20dB Master Volume studio output gain 34dB max USB: Channels Drivers Legacy type and ASIO Compatibility All current USB Audio systems SM Pro Audio Page 13 of 16 ACTIVE-1 Manual ... -
Page 14: Warranty
Damages/defects caused by the following conditions are not covered by this warranty: Misuse, neglect or failure to operate the unit in compliance with the instructions given in the user or service manuals. SM Pro Audio Page 14 of 16 ACTIVE-1 manual ... -
Page 15: Claim For Damages
This warranty does not exclude or limit the buyer‘s statutory rights provided by national law, in particular, any such rights against the seller that arise from a legally effective purchase contract. SM Pro Audio Page 15 of 16 ACTIVE-1 Manual ... -
Page 16: Fcc And Ce Regulation
SM Pro Audio. ALL RIGHTS RESERVED © 2014 SM Pro Audio SM Pro Audio Page 16 of 16 ACTIVE-1 manual ...
