Kingkong-AC ET series Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HD CCD Camera
Micro Swift 2
Feature
*
, used OV solution and high definition.
OV231 Camera
* The structure uses 2.5mm thick carbon fiber and Super prop protector cover,
especially suitable for novice flying.
* Product performance and wheelbase for indoor through the special design.
* 4in1 10A 2S~3S AIO ESC support MULTISHOT,ONESHOT and DSHOT provedes
a better user experience.
* Modular design, PIKO BLX FC, with the latest betaflight firmware.
ET Series PNP
Instruction manual
FPV EGG PNP
Instruction manual
High Quality Motor
Buzzer
LED Strip

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingkong-AC ET series

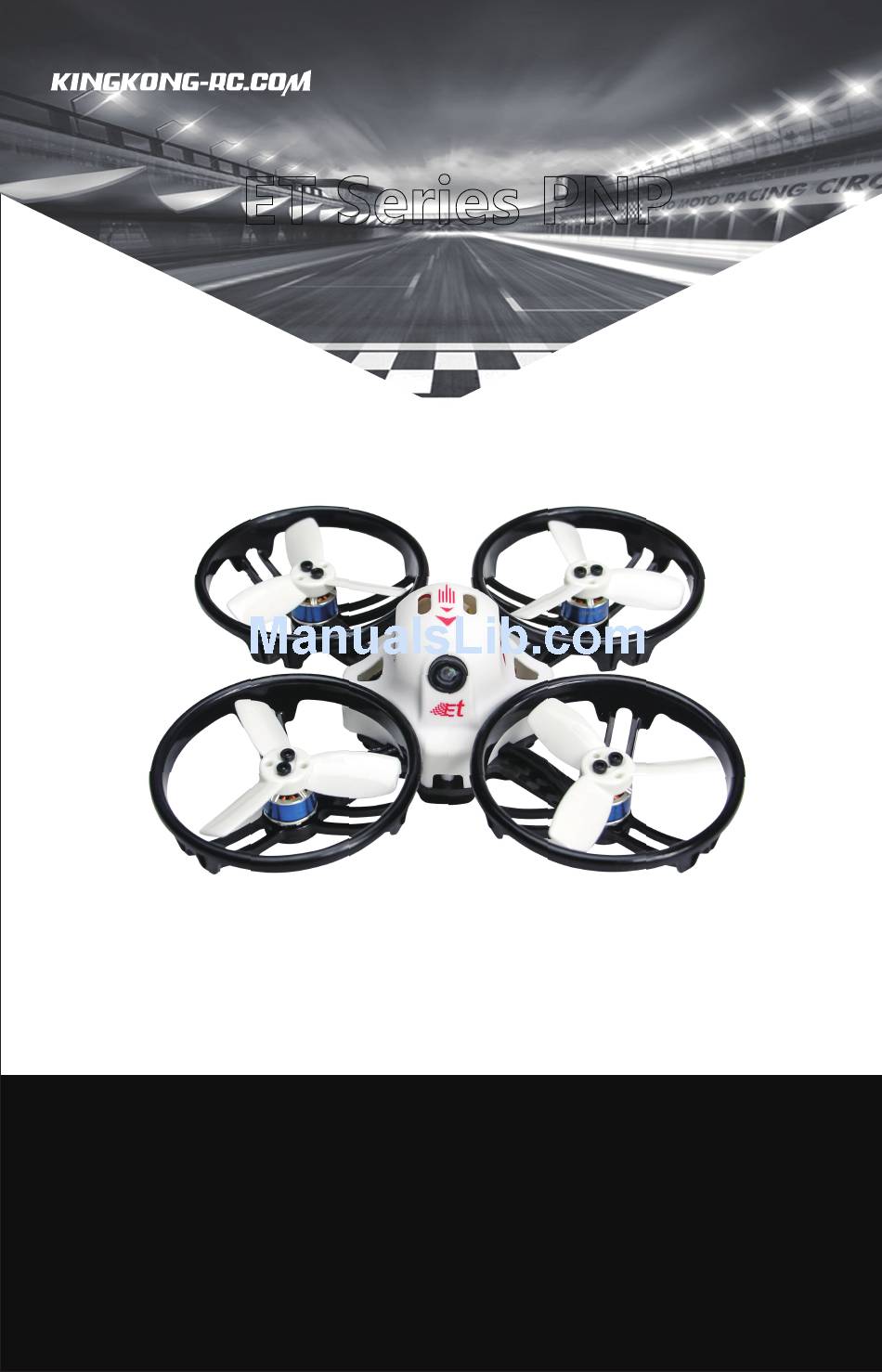

  • Page 1 ET Series PNP Instruction manual FPV EGG PNP Instruction manual HD CCD Camera High Quality Motor Buzzer LED Strip Micro Swift 2 Feature , used OV solution and high definition. OV231 Camera * The structure uses 2.5mm thick carbon fiber and Super prop protector cover, especially suitable for novice flying.
  • Page 2 ET100 Configuration ET100（Buzzer） Wheelbase:100mm Flytower20*20: PIKO BLX(F303CC+MPU6000) 4in1 10A BLheliS VTX:Q100 VTX(25mW/100mW 16CH) Camera:OV231(800TVL 150 NTSC) Motor:XT1103-7800KV Prop:1935 Battery:7.4V 450mAh 80C Weight:71.9g(without receiver and battery) Receiver:FM800(Futaba),XM(Frsky), FS-RX2A(Flysky),DSM2(Spektrum),RX800 ET100 Package list Suitcase*1 PNP*1 1935 Prop*4Pairs Battery*1 USB×１ Rubber×２ Unloading paddle×１...
  • Page 3 ET115 Configuration ET115（Buzzer） Wheelbase:115mm Flytower20*20: PIKO BLX(F303CC+MPU6000) 4in1 10A BLheliS VTX:Q100 VTX(25mW/100mW 16CH) Camera:OV231(800TVL 150 NTSC) Motor:XT1104-7500KV Prop:2345 Battery:7.4V 550mAh 80C Weight:89.1g(without receiver and battery) Receiver:FM800(Futaba),XM(Frsky), FS-RX2A(Flysky),DSM2(Spektrum),RX800 ET115 Package list Suitcase*1 PNP*1 2345 Prop*4Pairs Battery*1 USB×１ Rubber×２ Unloading paddle×１...
  • Page 4 ET125 Configuration ET125（Buzzer） Wheelbase:125mm Flytower20*20: PIKO BLX(F303CC+MPU6000) 4in1 10A BLheliS VTX:Q100 VTX(25mW/100mW 16CH) Camera:OV231(800TVL 150 NTSC) Motor:XT1104-7500KV Prop:2840 Battery:7.4V 550mAh 80C Weight:93.2g(without receiver and battery) Receiver:FM800(Futaba),XM(Frsky), FS-RX2A(Flysky),DSM2(Spektrum),RX800 ET125 Package list Suitcase*1 PNP*1 2840 Prop*4Pairs Battery*1 USB×１ Rubber×２ Unloading paddle×１...

  • Page 5: Installation Drawing

    Installation drawing ST2*6 M2.5*18 Canopy Camera Prop protector （1.9/2.3/2.8inch） M2.5 1935 Prop(M2*6) Stent plastic 2345 Prop(M2*6) 2840 Prop(M2*8) Rubber band Motor Carbon fiber plate 100/115/125 M2*7 Camera Install OV231 Connent OV231 Pay attention to camera direction Setting before Open canopy Connect USB...
  • Page 6 4.0V VIN GND VIDEO Click the key change frequency point LED Frequency table 25mW 100mW Q100-Mini 25mW/100mW 16CH VTX (2S-4S Lipo 7V-18V) 2S-4S Lipo Antenna 7V-18V L=28mm,W=11mm,Weight=2.5g(Without camera and wire) Please attention ventilation cooling 2-3S Lipo GND M1 Buzzer Satellite 3.3V S.BUS USART1...
  • Page 7 Receiver Bind XM bind (default S.BUS),example(FRSKY X9D) 1. Open remote control, set D16 mode. 2. Hold receiver bind button to power, loosen until red and green light constant lighting. 3. Open remote control Bind, press “Enter” and wait a few seconds, then stop Bind when red light flash and green light constant lighting.

  • Page 9: Firmware Update

    Product and Factory Code Factory Code Name Factory Code Name PNP.ET100.NO RX ET125 KIT KIT.ET125 ET100 PNP NO RX PNP.ET100.XM 1935 Prop PROP.1935.3.WHITE ET100 PNP XM PNP.ET100.FM800 2345 Prop PROP.2345.3.WHITE ET100 PNP FM800 PNP.ET100.FS-RX2A 2840 Prop PROP.2840.3.WHITE ET100 PNP FS-RX2A PNP.ET100.DSM2 Battery 7.4V 450mAh 80C BAT.7.4V 450MAH 80C...

  • Page 10: After-Sale Service

    5.Default setting of receiver is 5th channel ARM,6th channel mode switching. 6.PID Default setting After sale service 1.Provide free reparation service when find the product defect after purchase. 2.Provide pay-needed reparation service when product damage because improper operation. 3.China customers please contact with the after-sales service,overseas client please contact the dealer. PNP/RTF Test report ID : Flight test...
