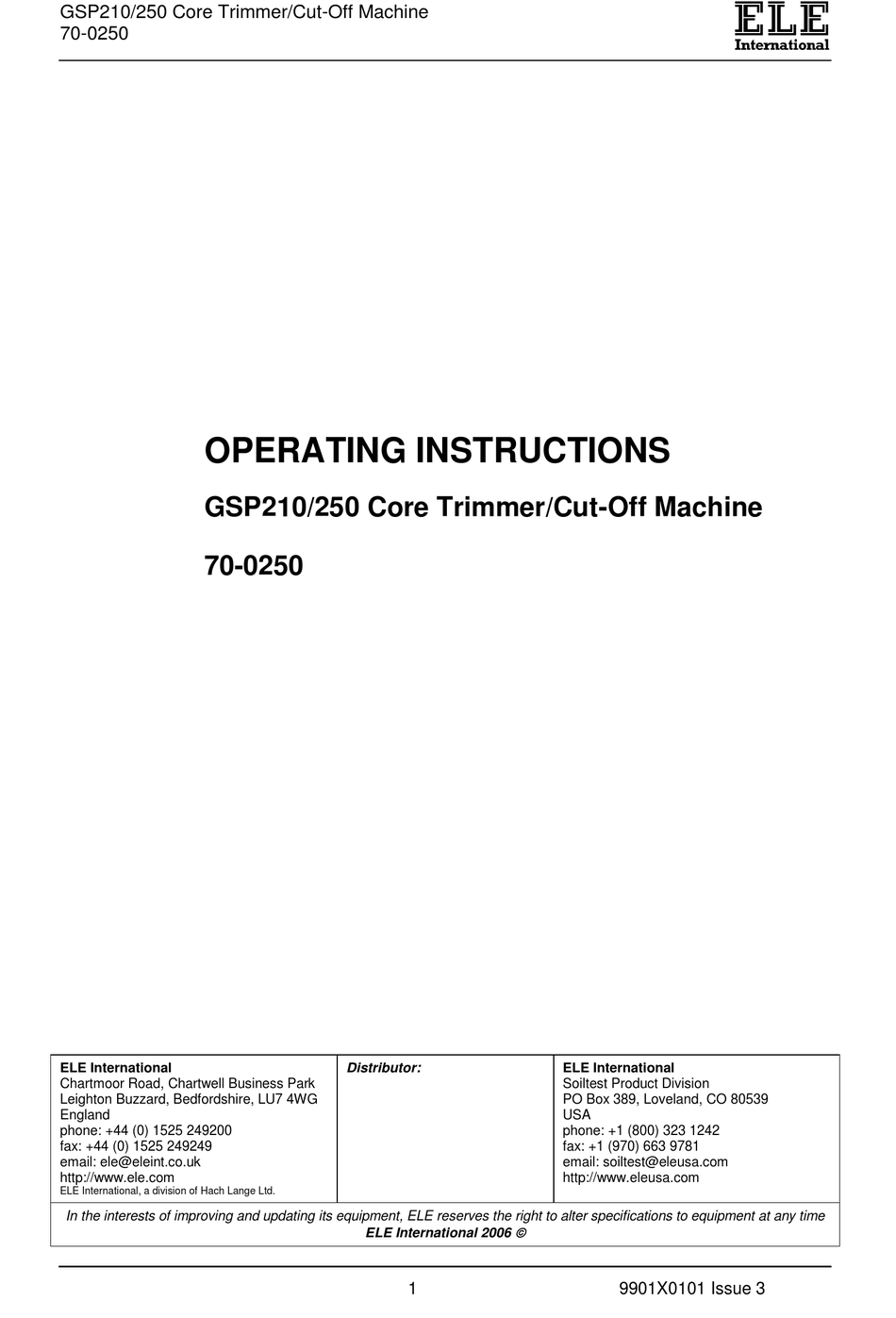

GSP210/250 Core Trimmer/Cut-Off Machine
70-0250
OPERATING INSTRUCTIONS
GSP210/250 Core Trimmer/Cut-Off Machine
70-0250
ELE International
Chartmoor Road, Chartwell Business Park
Leighton Buzzard, Bedfordshire, LU7 4WG
England
phone: +44 (0) 1525 249200
fax: +44 (0) 1525 249249
email: ele@eleint.co.uk
http://www.ele.com
ELE International, a division of Hach Lange Ltd.
In the interests of improving and updating its equipment, ELE reserves the right to alter specifications to equipment at any time
Distributor:
ELE International 2006
1
ELE International
Soiltest Product Division
PO Box 389, Loveland, CO 80539
USA
phone: +1 (800) 323 1242
fax: +1 (970) 663 9781
email: soiltest@eleusa.com
http://www.eleusa.com
9901X0101 Issue 3
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ele GSP210
-
Page 1: Operating Instructions
ELE International, a division of Hach Lange Ltd. In the interests of improving and updating its equipment, ELE reserves the right to alter specifications to equipment at any time ELE International 2006 9901X0101 Issue 3... - Page 2 GSP210/250 Core Trimmer/Cut-Off Machine 70-0250 Contents Section Page Introduction Safety Notes Installation Electrical Supply Coolant Cutting Cutting Cores for Compression Test Cutting Cubes Maintenance Lubrication – Spindle 9901X0101 Issue 3...
- Page 3 GSP210/250 Core Trimmer/Cut-Off Machine 70-0250 Introduction This unit, which is designed primarily for use in rock mechanics, can also be used in mineralogy, ceramics and refractory sample preparation. Two vices are supplied, one for securing regular and irregular samples up to 70 x 125 mm, and the other a V-vice to enable the opposite ends of cores up to 57 mm diameter x 140 mm long to be cut parallel and square to the longitudinal axis.
- Page 4 GSP210/250 Core Trimmer/Cut-Off Machine 70-0250 Vice is used for irregular shaped samples of various sizes (Picture 1). Vice is used for cutting or trimming small cores using a cutting wheel and then the double faced cupped wheel for parallel and flat testing faces (Picture 2).
- Page 5 GSP210/250 Core Trimmer/Cut-Off Machine 70-0250 Feed specimen into cutting wheel by operating handle at front of machine. When cutting on angled or irregular surfaces feed very slowly until cutting wheel is fully entered into specimen. Fast feeding at the start of cut causes the cutting wheel to deflect from a true cutting path and thus produces a cut face which is not flat.
