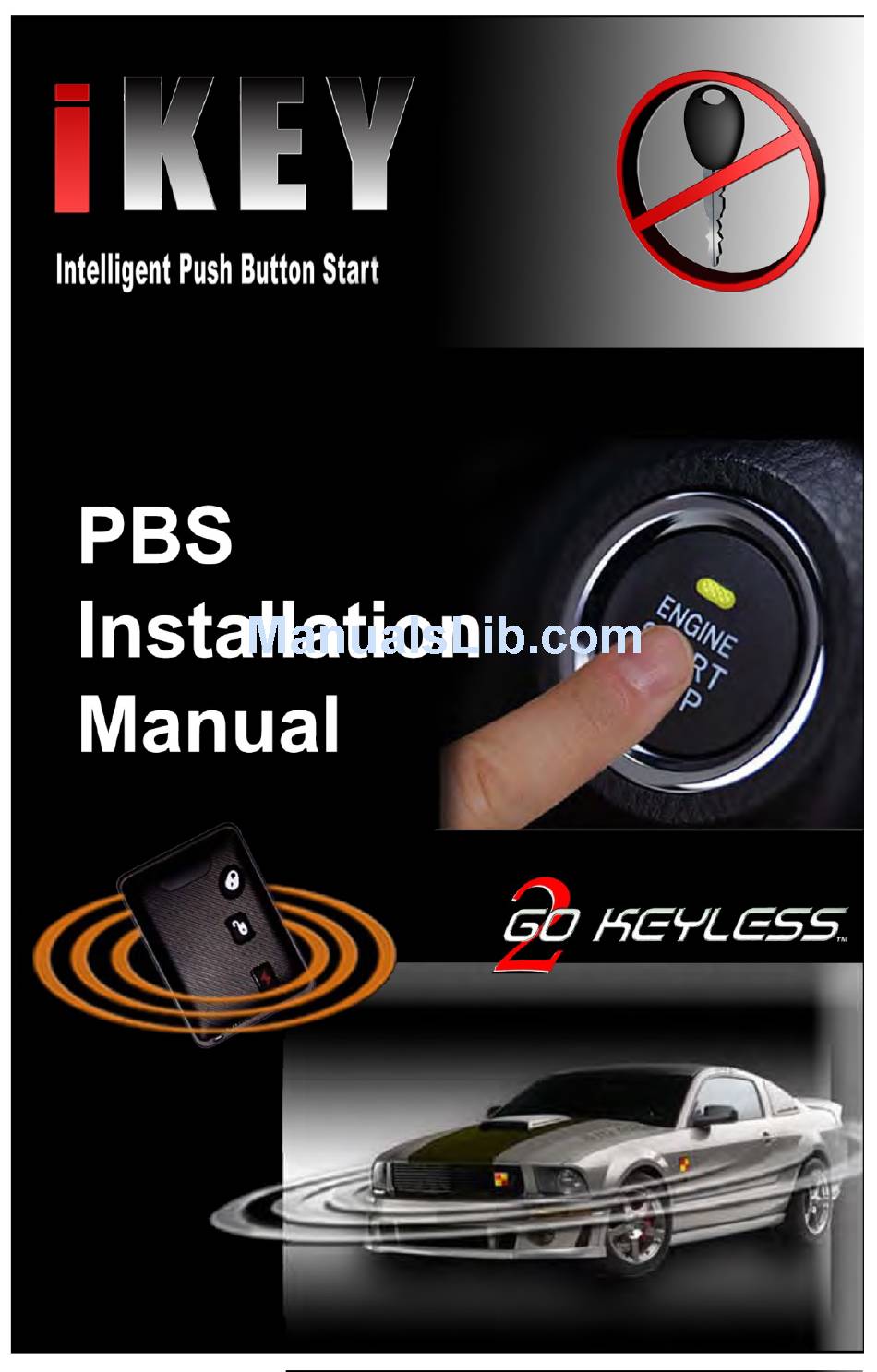

iKey PBS Installation Manual

Intelligent push button start
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBS and is the answer not in the manual?

Questions and answers

Summary of Contents for iKey PBS

  • Page 2: Table Of Contents

    Product Contents ................Warning and Safety Information ............Safety Precautions ................. 3 Pre-installation ………………….............. 3 Connections ..................PBS Main Harness Wiring ……………........... 4 PBS ACC Harness Wiring ………………..........5 PBS Module Wiring Diagram ..............6 Installation ..................Installation Overview ................7 Installation Note ..................

  • Page 3: Warning And Safety Information

    • Install in a well-lit, dry, covered area from the elements and keep at least one window open at all times during the installation. Do not leave the ikey inside the detection range. Prepare all tools required for the installation. Special tools may be necessary depending on vehicle.

  • Page 4: Connections

    CONNECTIONS - HARNESS Push Button Start Module Main Harness Wiring Descriptions Main Harness 8-Pin 14-16 Gauge Pink NOT USED NOT USED White OUTPUT STARTER Connect this output to the vehicle’s Starter input at the ignition switch. IMPORTANT: Ensure that the ignition current is not rated for more than 30A. Connect to external relay with higher current rating if required.

  • Page 5: Pbs Acc Harness Wiring

    This wire provides a constant 500mA negative output while the vehicle is in ACC,RUN and CRANK positions. The output becomes active 0.5 sec before ACC is on, and becomes inactive when the PBS module shuts down the vehicle. The output can be used to control a data or bypass module.

  • Page 7: Installation

    INSTALLATION INSTALLATION OVERVIEW Use the following steps as a guide to install this system: Review the products Install Immobilizer/Data Review Installation Notes manual and vehicle’s Bypass if required. and set PKE jumper electrical service manual. Connect Main and settings according to Prepare vehicle for Accessory Harness to the customer requirements.
  • Page 8 (All LED colors relate to Lexus style buttons) • The AMBER status light is on after the ikey is identified (The Ignition is enabled and system is ready). • Push the start button once to turn on the ACC circuit and the status light turns solid GREEN.

  • Page 10: Steering Column Lock Bypass

    STEERING COLUMN LOCK BYPASS To achieve a completely keyless ignition system the OEM steering column lock needs to be bypassed. You can completely remove the cylinder or physically disable the steering column lock or use the shaved key method. The “Shaved-Key” method is an easy way to bypass this function: 1.

  • Page 12: Keysense Function Bypass

    How does Push Button Start work and how do I know if it is working normally? Refer to “Push Button Start Overview” on page 6 for Push Button Start ignition Sequence and follow the “TESTING AND TROUBLESHOOTING” diagram on page 9 to verify the system is working properly. Why is the Start button dead / not working? Check the system's input power, Check to make sure the unit has a good ground signal, also make sure the authorization wire is hooked up to the PKE unit.

  • Page 13: Frequently Asked Questions

    My engine is running how do I turn it off? To exit RUN mode, apply the brake and press and hold the button for 2+ sec to switch back to OFF mode. Why do I have to press the button 2x to start engine? Some vehicles do not supply power to the brake switch when the vehicle is OFF .
