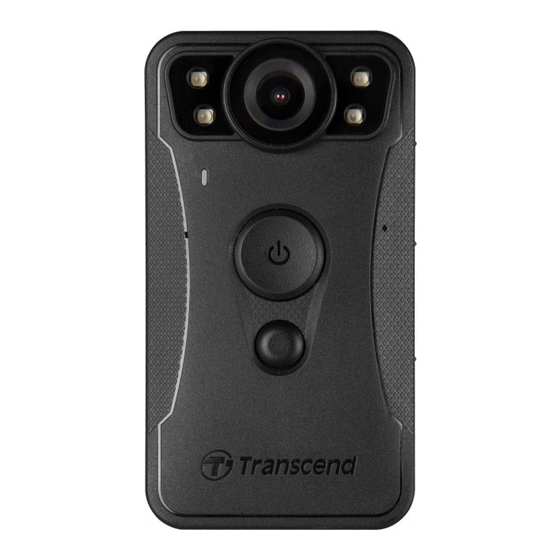

Transcend DrivePro Body 30 User Manual

Body camera
Hide thumbs Also See for DrivePro Body 30:
Table of Contents

Advertisement

Quick Links

User's Manual
Body Camera
DrivePro™ Body 30
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro Body 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend DrivePro Body 30

Summary of Contents for Transcend DrivePro Body 30

  • Page 1 User’s Manual Body Camera DrivePro™ Body 30 (Version 1.0)

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............................ 2 2. System Requirements ........................3 3. Getting Started..........................4 3-1 Function Buttons ......................... 4 3-2 LED Indicator Table ......................5 3-3 Charging the DrivePro™ Body 30 ................... 7 4. Recording Videos .......................... 7 4-1 Buffering Mode ........................

  • Page 3: Introduction

    The handy snapshot function allows you to take photos while recording. Transcend’s DrivePro™ Body 30 has a built-in Li-Polymer battery that can record up to 12 hours and only takes approximately 5 hours to be fully recharged.

  • Page 4: System Requirements

    2. System Requirements System requirements for connecting the DrivePro™ Body 30 to a computer and for using the DrivePro™ Body Toolbox:  A desktop or a laptop with a working USB port • Windows ® • Windows ® • Windows ®...

  • Page 5: Getting Started

    3. Getting Started 3-1 Function Buttons Battery Indicator Status Indicator Lanyard Hole Lens Infrared LED Recording Indicator Assistive Button Status Button Built-in Microphone Power Button Snapshot / Infrared LED Button Connection Socket Reset Button Velcro Holder 360° Rotatable Clip...

  • Page 6: Led Indicator Table

    Function Buttons Description  Power Button ✓ Long press once: Power on/off ✓ Short press twice: Switch between Buffering Mode and Recording Mode  Snapshot / Infrared LED Button ✓ Long press once: Turn on/off Infrared LED ✓ Short press once: Take a snapshot; in Recording Mode, a note will be added to the recoding file ...
  • Page 7 Top View 2 Status Indicator Recording Status Definition  Flashing Memory almost full Flashing Bluetooth Pairing  Buffering mode when Solid checking status Solid Silent mode  Recording mode when Flashing checking status Connected to computer Status Definition  Flashing Transferring data Front View Recording Indicator...

  • Page 8: Charging The Drivepro™ Body 30

    Connect the bundled 3.5mm to USB cable to a wall outlet with the included adapter Connect the bundled 3.5mm to USB cable to a computer Connect the DrivePro™ Body 30 to Transcend’s Docking Station (Optional) WARNING: Do not use the 3.5mm to USB cable on other devices.

  • Page 9: Recording Mode

    4-2 Recording Mode To start Recording mode, quickly press the button twice while in Buffering mode; you will hear 2 beeps, and the recording indicator will flash red. Video files recorded in Recording mode are saved in the “VIDEO” folder and will be overwritten with loop recording enabled (This function is disabled by default and can be enabled using the DrivePro™...

  • Page 10: Using The Drivepro™ Body App

    6. Using the DrivePro™ Body App Developed for iOS and Android devices, the free DrivePro™ Body App allows you to wirelessly adjust the settings of the camera and to take snapshots, or live stream video on your smart device. 6-1 Downloading and Installing the App 1.
  • Page 11 3. Long press the Status button until you hear a beep. Tap “Next” on the App to connect to Bluetooth. You will hear 3 beeps. You can now take snapshots, switch recording modes, or adjust settings via the App. 4. Tap Live View or Browser and connect to “DPB30_XXXXXX” Wi-Fi with the default...

  • Page 12: Drivepro™ Body App Home

    password “12345678”. 6-3 DrivePro™ Body App Home Device List Menu Battery Status Storage Status Snapshot Recording Mode Stealth Mode Microphone Live View Browser...

  • Page 13: Playing Videos And Browsing Photos

    Note: The camera stops recording when you tap Browser or Settings after tapping using the App, the front LED turns solid blue/red. The camera will resume recording when you tap Home. 6-4 Playing Videos and Browsing Photos To play videos and browse photos, tap Browser on the Homepage, or tap on the top left corner first then tap Browser.

  • Page 14: Settings

    6-5 Settings on the top left corner first then tap to enter the Settings menu. In the Settings menu, you can adjust the settings of video, device, Wi-Fi and System. Menu options VIDEO Resolution: Set the resolution/quality for video recording. Available options: 1080p / 720p / 480p Video Stamp: Display the Video Label, date/time, and Watermark on the photo or video.
  • Page 15 WARNING: 1. For best recording stability, you are suggested to back up your data using the DrivePro™ Body Toolbox each time you finish using the DrivePro™ Body 30, or format the device using the Toolbox every 3 months. 2. Please only format your DrivePro™ Body 30 using the DrivePro™ Body Toolbox. Buffered Video Length: Set the buffered video length to record footage that happens prior to switching to Recording mode.
  • Page 16 1. The DrivePro™ Body will shut down and the red LED light will flash while the firmware is being upgraded. After the upgrade is complete, the DrivePro™ Body will restart automatically. 2. If the DrivePro™ Body cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support.

  • Page 17: Using The Drivepro™ Body Toolbox Software

    DrivePro™ Body camera. To use for the first time, please change your password with the default password “12345678”. Download the installation files from: http://www.transcend-info.com/downloads Install DrivePro™ Body Toolbox software on your desktop or laptop. 7-1 Status On the Status page, the basic information of the DrivePro™ Body is displayed, including device...

  • Page 18: Settings

    To change the user label, click on To start backing up, click on To play videos and browse photos, click on 7-2 Settings On the Settings page, you can adjust the Device settings and Video settings.
  • Page 19 Device Settings Time Format: Select the 24-hour or 12-hour AM/PM time format. Available options: 24HR / AM/PM Date Format: Set the date format. Available options: YY/MM/DD or MM/DD/YY or DD/MM/YY Microphone: Turn on/off the microphone during video recording. Available options: on / off Light Frequency: Select the appropriate frequency to avoid flashing A/C light.

  • Page 20: Tools

    Video Stamp: Display the time of the event being recorded and the video label. Available options: on/off Loop Recording: Overwrite the old video files with new ones. Available options: Disable / Enable Watermark: Display the Transcend watermark Available options: on/off Image Stabilization: Enable/Disable the image stabilization function. Available options: on/off 7-3 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro™...

  • Page 21: File Manager

    Note: Formatting the disk and resetting the device will permanently remove all data. Firmware Upgrade: Upgrade your firmware to the latest version available. Format Disk: Format your device. Reset Device: Reset all settings to default or ease all contents and settings. 7-4 File Manager On the File Manager page, you can search and manage your videos and photos, or edit photos.

  • Page 22: Preference

    Click on on top of the page to add, delete, or edit the Owner and Category of your files. 7-5 Preference on top of the page to adjust the settings of the DrivePro™ Body Toolbox. Click on Check the available options below according to your preference.

  • Page 24: Docking Station (Optional)

    8. Docking Station (Optional) Transcend’s DPD6N networked docking station is designed specifically for the DrivePro™ Body 30 and offers a complete charging, data upload, and camera management solution. Ideal for large-scale deployments of DrivePro™ Body 30 body cameras, it allows for simultaneous charging and network-based data and camera management.
  • Page 25 3. Connect the other Ethernet cable from the WAN port to an active Internet port. 4. Change IP address to http://10.10.0.100. 5. Open browser and link to http://10.10.0.1. 6. Enter default user name “admin” and password “12345678” to log in. 7.
  • Page 26 8. Charge the DrivePro™ Body and upload data simultaneously.

  • Page 27: Cautions

    9. Cautions Do not use or store the DrivePro™ Body in the following places to prevent malfunction or deformation:  In extremely hot, cold or humid places such as in a car parked in the sun  Under direct sunlight or near a heater ...

  • Page 28: Ip67 Protection

    other side to another surface.  Application instructions: Clean and dry surface before application. Peel tape and press firmly into place. Leave for 24 hours for best performance. 10. IP67 Protection The camera body of the DrivePro™ Body 30 is rated at IP67, offering splash, water, and dust resistance.

  • Page 29: Package Contents

    11. Package Contents DrivePro™ Body 30 Adapter 3.5mm to USB cable Velcro...
  • Page 30 Clip & Velcro holders Note: When removing the DrivePro™ Body from the holder, please pull from left and right side. When reassembling, make sure the DrivePro™ Body is securely attached to the holder. Quick Start Guide Warranty Card...

  • Page 31: Specifications

    12. Specifications Connect Interface USB 2.0 Storage Internal eMMC storage 95.9 mm (L) × 52.2 mm (W)× 27.6 mm (H) Dimensions 3.78” (L) x 2.06” (W) x 1.09” (H) 130g Weight 4.6 oz Battery Li-Polymer 3120mAh Input: AC100V-240V, 50-60Hz, 0.4A Max Power Supply Output: DC5V 2A Recording Life...

  • Page 32: Frequently Asked Questions

    DrivePro™ for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website (http://www.transcend-info.com/) for more FAQs and Technical Support services (http://www.transcend-info.com/Support/contact_form).

  • Page 33: Recycling And Environmental Protection

    14. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 34: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.

  • Page 35: Gnu General Public License (Gpl) Disclosure

    17. End-User License Agreement (EULA) Software license terms and conditions 1. Generally. Transcend Information, Inc. ("Transcend") is willing to grant the following license to install or use the software and/or firmware (“Licensed Software”) pursuant to this End-User License Agreement (“Agreement”), whether provided separately or associated with a Transcend product (“Product”), to the original purchaser of the Product upon or with which the Licensed Software was installed or associated as of the time of purchase ("Customer") only if Customer accepts all of the terms and conditions of this Agreement.
  • Page 36 Licensed Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
  • Page 37 (d) A waiver by either party of any term or condition of this Agreement or any breach thereof, in any one instance, will not waive such term or condition or any subsequent breach thereof. (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will inure...

  • Page 38: Federal Communications Commission (Fcc) Statement

    18. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
