Summary of Contents for Peiker CEECOACH
- Page 1 P 02 - 15 S 16 - 29 P 30 - 43 ceecoach - M - 06...
- Page 2 Table of contents Please contact your distributor for any questions and warranty issues: P 03 Explanation of symbols Purchased on: P 04 Illustrated device overview P 05 Before getting started P 06 Assigning roles (pairing) Use at your own risk! P 07 - 08 Possible connection modes Information regarding certification is provided on the...
-
Page 3: Scope Of Delivery
Continuous light Confi guration for headsets Please make sure that CEECOACH confi guration is correct for your headsets. You can check and change that in the installer. Please take note of the guide for the installer on our homepage. When using mono headsets (e.g. -

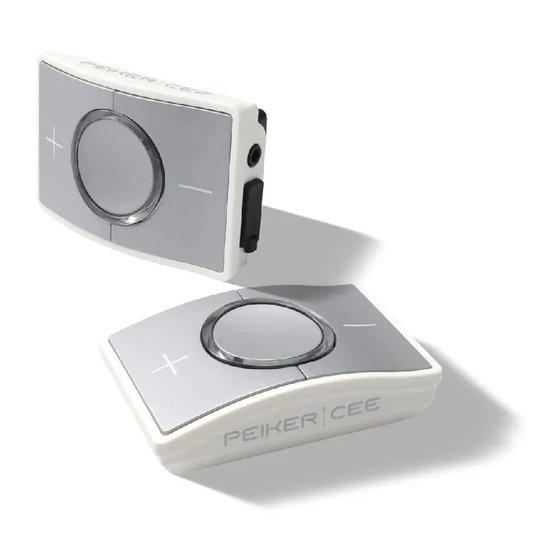

Page 4: Device Overview
Device overview Headset Micro-USB- connection Micro-USB cable Rotating clip mount snaps in at a Plus key (+) 90° angle Headset- connection Minus key (-) Light ring (3.5 mm jack) Talk button (o) - Page 5 Green permanent light = Device is fully charged Switch off. (Light > 3 sec. = off Unplug micro-USB ring briefl y lights cable up in red) All CEECOACH functions are only available after removing the USB plug!
- Page 6 Role assignment (pairing) The devices have not been assigned roles upon delivery (all devices are identical). This is done when the devices are switched on for the fi rst time. If you wish to switch on the devices without changing the predefi ned role assignments, press the Talk button (o) for one second.
- Page 7 Connection modes: 1 Moderator Mode Participant Moderator The moderator speaks – up to 5 participants listen. This connection is already established after role assignment, without the moderator having to press the Talk button (o).
- Page 8 Connection modes: 2 Participant Mode Connection modes: 3 Private Mode Participant Participant Moderator Moderator Participant and moderator can speak to one another; The moderator can switch an active conversation to all other participants can only eavesdrop. Voice private mode, i.e. the moderator speaks to one participant communication with the moderator is established when privately.
- Page 9 Key Lock Mute Moderator From software version 01.40 a keylock function is As a Moderator you can mute yourself independent available. from the current connection mode. The continuous transmission can be interrupted by doing a long press on the minus (-) or the plus (+) button or the mic button until the audio signal “mute on”...
- Page 10 Activate Bluetooth® on your smartphone and scan for Bluetooth devices. The device is shown on the mobile phone as CEECOACH incl. the last 4 characters of the serial number, which can be found on the back side of the device.
-
Page 11: Adjusting The Volume
Connection with (-) & (+) simultaneously, Reset smartphone 2 seconds If you would like to reset your CEECOACH device to factory (+), (o) & (-) settings, press all three buttons (-), (o) and (+) until the Reset to factory settings simultaneously, devices switches off. -
Page 12: Technical Features
Technical features Update function Updates are used to keep CEECOACH functions current and Number of users up to 6 people up to date. The latest software version can be downloaded simultaneously at www.ceecoach.com at any time. Use the USB cable... - Page 13 (direct view, no antenna coverage, etc.) Bluetooth ® is a echo from your headset. Store CEECOACH with all its registered trademark of Bluetooth ® SIG Inc. accessories in a secure place and keep out of reach of children and animals.
- Page 14 + 45°C (113°F). hours depending on operating mode. When not in use, • Never charge batteries unsupervised. CEECOACH should be recharged once every 3 months. The battery is equipped for 400 charging cycles at min. 80 Power supply warning percent charging capacity.
- Page 15 Disposal of the product Currentness Our high level of safety and quality is ensured by the If you would like to dispose of your communication system at a later time, please observe the following: constant further development of our products. This may result in deviations between this instruction manual •...
- Page 16 Consumer Electronics Evolution GmbH Gartenstraße 25 · 61352 Bad Homburg www.ceecoach.de www.peiker-cee.de www.ceecoach.com...
