Installation and Operating
Instruction Manual
PIN HOLE LENS CAMERA
ERM-L3360P
ERM-L3360N
Thank you for your purchase of this product.
Before attempting to connect or operate this product, please read these
instructions carefully.
Product specifications and its contents subject to change without any prior
notice.
The picture is for reference, the object as the standard.
www.eyerisdigital.com
Page 1
Advertisement
Table of Contents
Related Manuals for Eyeris ERM-L3360P
Summary of Contents for Eyeris ERM-L3360P
-
Page 1: Instruction Manual

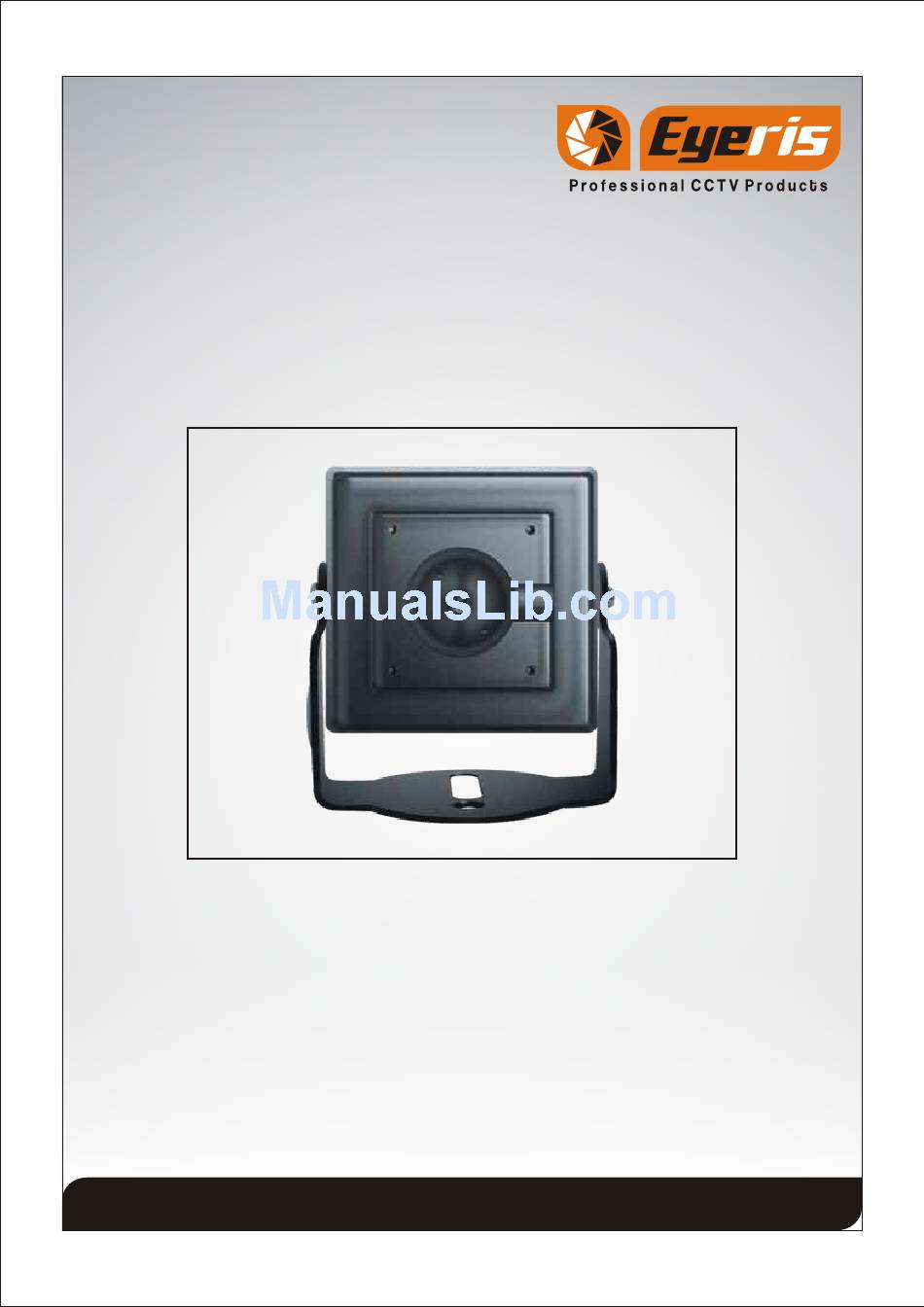

Installation and Operating Instruction Manual PIN HOLE LENS CAMERA ERM-L3360P ERM-L3360N Thank you for your purchase of this product. Before attempting to connect or operate this product, please read these instructions carefully. Product specifications and its contents subject to change without any prior notice. -
Page 2: Table Of Contents
CONTENTS 1. General Information - Safety Precaution - Package contents 2. Installation of Camera - Camera Connection - Installation of Camera - Tips for Camera Location - Dimension 3. Operation Guide - Menu structure 4. Technical Specification 5. Troubleshooting 6. Cleaning and Care 7. -
Page 3: General Information
General Information Safety Precaution 1.Read these instructions carefully before commissioning the camera in order to avoid damages caused by improper installation or use. 2.Do not harm the camera and avoid striking, shaking, etc. The camera could be damaged by improper handling or storage. 3.Use a dry cloth to clean the camera dome cover when dirty. -
Page 4: Installation Of Camera
2. Installation of Camera Camera Connections 12V DC Power Supply Use standard 12V DC output power supply with 2.1mm standard DC power female pin. Before connect power check power supply polarity (+ and -). Video Output Connection Use standard 75 Male BNC pin terminate with Co-axial video cable then connect to camera video out BNC Female pin. -
Page 5: Dimension
Dimension 37 mm Page 5... -
Page 6: Operation Guide
3. Operation Guide : Menu Structure LENS TRACK AUTO LOCK MANUAL 6 TO 40 AGC MAX AUTO ON - OFF ON - OFF AREA 1 - 15 DAY NIGHT COLOR DISPLAY ON - OFF SENSITIVITY 0 - 15 HIGH 0 - 60 DWDR BOTTOM 1 - 127... -
Page 7: Technical Specification
4. Technical Specification ERM-L3360N ERM-L3360P Model Number Video Signal System NTSC 1/3" Sharp Color CCD Lens 3.7mm Fixed Pinhole Lens Effective Pixel 768 x 494 752 x 582 Horizontal Resolution 600 TVL Min Illumination@ Day 0.2 Lux Color / F2.0 Min Illumination@ Night 0.01Lux... -
Page 8: Troubleshooting
Electrical Power Supply 12V DC Standard ±10% Current Consumption 100mA Environmental Operating Temperature -10°C ~ 50°C Humidity Dimensional Housing Metal Weight Dimension 37 mm x 37 mm x 15 mm 5. Troubleshooting Error Cause No Picture Check supply voltage, check power cable and video cable The picture is noisy Insufficient light (Properly adjusted to the camera) The picture is too bright Too much peak light, change camera location or active back... -
Page 9: Cleaning And Care
6.Cleaning and Care -Before you start to clean the camera body, disconnect the unit from power supply. -For reasons of electrical safety never clean the camera with water or other liquid matters and never put the camera under water. -To clean use a soft dry cloth. Cleaning the camera inside is strictly forbidden and may only be done by your authorized dealer.
