Temperonic

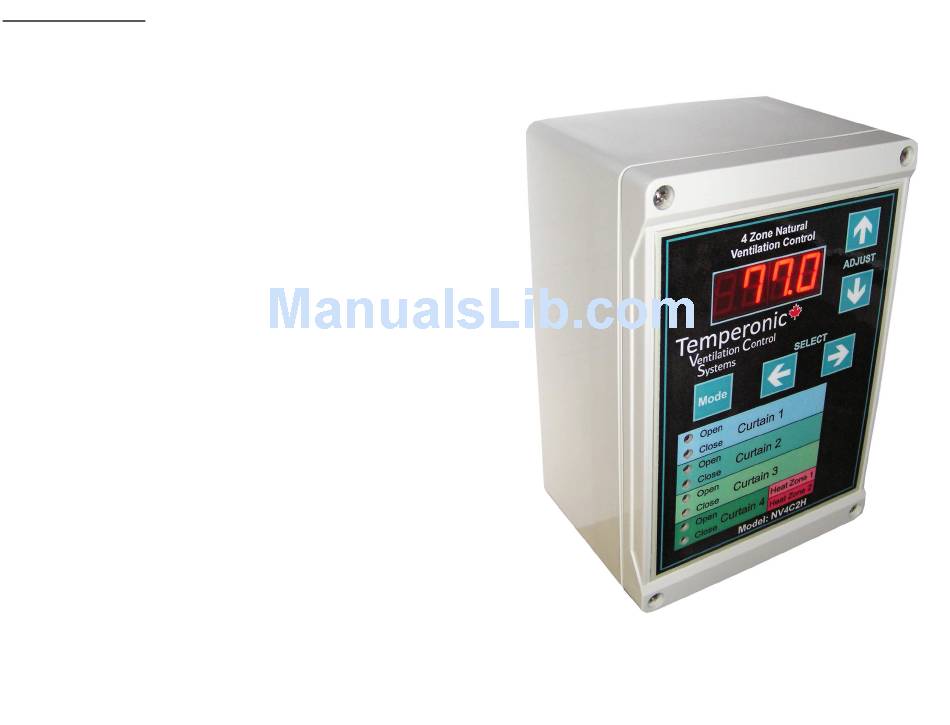

4 Zone Natural Ventilation Control
Veldhuis Digital Engineering Ltd. hereby warrants that should this unit
Operators Manual
prove defective, Veldhuis Digital Engineering Ltd. will repair the unit free of
charge but subject to the following conditions and a time period of 1 year at
100% coverage of parts and labour to repair or replace the unit as determined
by Veldhuis Digital Engineering Ltd.. Veldhuis Digital Engineering Ltd.
assumes no responsibility for losses resulting directly or indirectly from the
use of this control unit beyond the replacement or repair of the control unit.
1. The unit must have been installed in accordance with the installation
instructions contained in this manual, such that the contents of the control are
protected from moisture and dust using liquid tight connections on all wiring
into the control housing. Any holes cut into top or side of control enclosure
void warranty of controller.
2. No modification of the control has been done by anyone other than
qualified Veldhuis Digital Engineering Ltd. personnel.
3. The control unit must not have been subject to abuse, misuse or accident
or operated other than as specified in this manual. Any decision on this
condition by Veldhuis Digital Engineering Ltd. will be final.
4. Warranty will only be provided to the original purchaser of this product and
proof of purchase must be provided at the time of a warranty request.
Warranty period begins at date of manufacture as found on the control unit
unless date of sale and serial numbers are clearly indicated on proof of
purchase documents.
5. This warranty is only applicable to control unit NV4C2H
6. All shipping charges are the responsibility of the purchaser.
7. For best warranty service, return a defective control unit to your local
dealer along with proof of purchase of the unit.
DISCLAIMER: EXCEPT AS PROHIBITED BY APPLICABLE LAW, AND
EXCEPT AS SPECIFIED ABOVE, VELDHUIS DIGITAL ENGINEERING LTD.
MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR
IMPLIED, ORAL OR WRITTEN, REGARDING THE CONTROL UNIT OR
DOCUMENTATION AND HEREBY EXPRESSLY DISCLAIMS ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. VELDHUIS DIGITAL ENGINEERING LTD. DOES
NOT WARRANT THE UNIT WILL MEET YOUR REQUIREMENTS OR THAT
ITS OPERATION WILL BE UNINTERRUPTED OR ERROR FREE.
30-Nov-2009
Version E1
- 20 -
30-Nov-2009
